FEATURES:
- LTE FDD/TDD Cat 4
- AC1200 Wi-Fi
- 1×10/100Mbps WAN/LAN
- Nano SIM Slot
- 24V Passive PoE
- 2x Internal Wi-Fi Antennas + 2 x Detachable 4G Antennas
- VPN & DDNS
- IP65 Water-Proof
SPECIFICATIONS:
- Model LT500-Outdoor
- LTE Module Model EU Version: EC200A, LTE-FDD: B1/B3/B5/B7/B8/B20/B28, LTE-TDD: B38/B40/B41, WCDMA: B1/B5/B8, GSM/EDGE: B3/B8
- LTE Module Model US Version: EC25-AFXD, LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71, WCDMA: B2/B4/B5
- Flash: 128 Mbit (16 MB) SPI Flash
- DDR: 1 Gbit (128 MB) DDR
- Interface: 1× 10/100 Mbps WAN/LAN RJ45 Port (24V/0.5A passive PoE, 4/5+,7/8-), 1× Reset Button, 1× Nano SIM Slot
- LED: System/Internet/Ethernet/2.4G WiFi/5GHz WiFi/Signal Strength

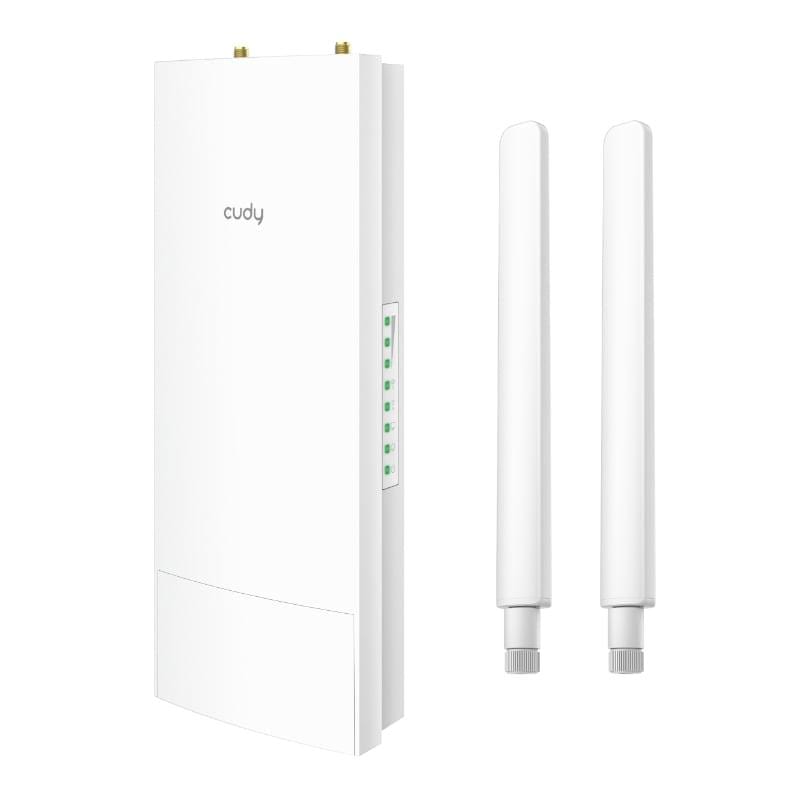

- Antenna: 2× Internal Wi-Fi Antennas, 2× External Detachable 4G Antennas
- Wireless Standards: IEEE 802.11 ac/a/n/b/g
- Frequency: 2.4GHz, 5GHz
- Signal Rate: 867 Mbps (5 GHz), 300 Mbps (2.4 GHz), Compatible with 802.11ac/a/b/g/n Wi-Fi standards
- Transmit Power CE: <20dBm, FCC:<30dBm
- Wireless Modes Enable/Disable Wireless Radio, WMM
- Wireless Security WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
- WAN Type: 4G/Dynamic IP/Static IP/PPPoE
- DHCP: Server, DHCP Client List, Address Reservation
- Dynamic DNS: Compatible with 15 more DDNS providers
- NAT: Port Forwarding, Port Triggering, UPnP, DMZ
- VPN Server & Client: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier
- CWMP Protocol: TR069 / TR098 / TR111 / TR181
- ACS Server Compatibility: GenieACS, OpenACS
- Management: Access Control, Local Management, Remote Management, Wake on LAN
- TTL: Extend/Spoof/Custom
- DNS: Cloud?are/Google/Custom
- Internet Protocols: IPv4 / IPv6
- IPv6: Relay, Dynamic(SLAAC/DHCPv6), Static (Fixed IP), Passthrough, MAP-E (Dual-stack), DS-Lite (Dual-stack)
- SMS: Send/Receive
- 4G Band Lock: Support

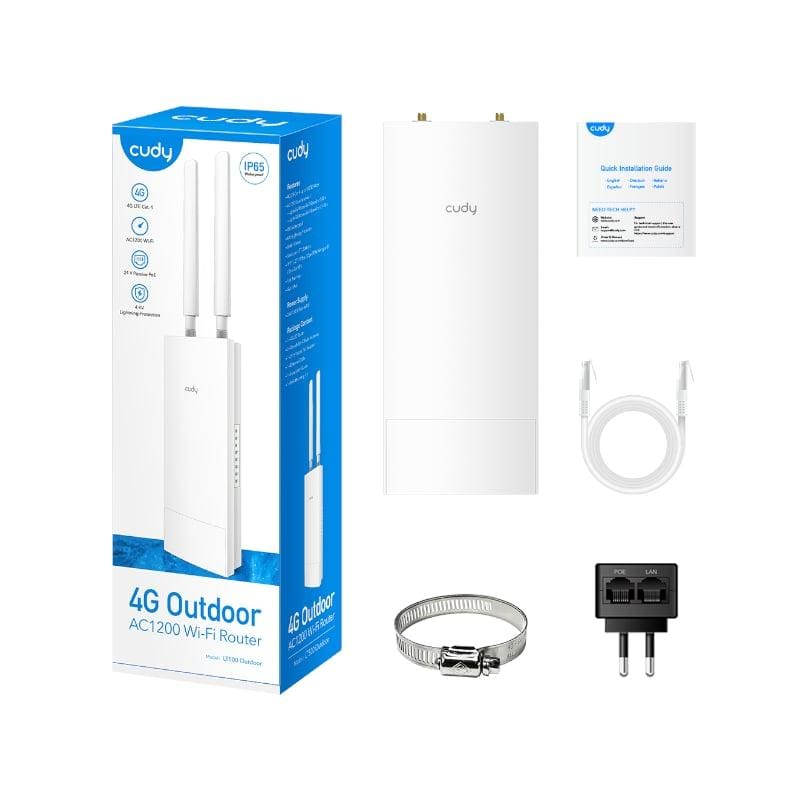

WHATS IN THE BOX:

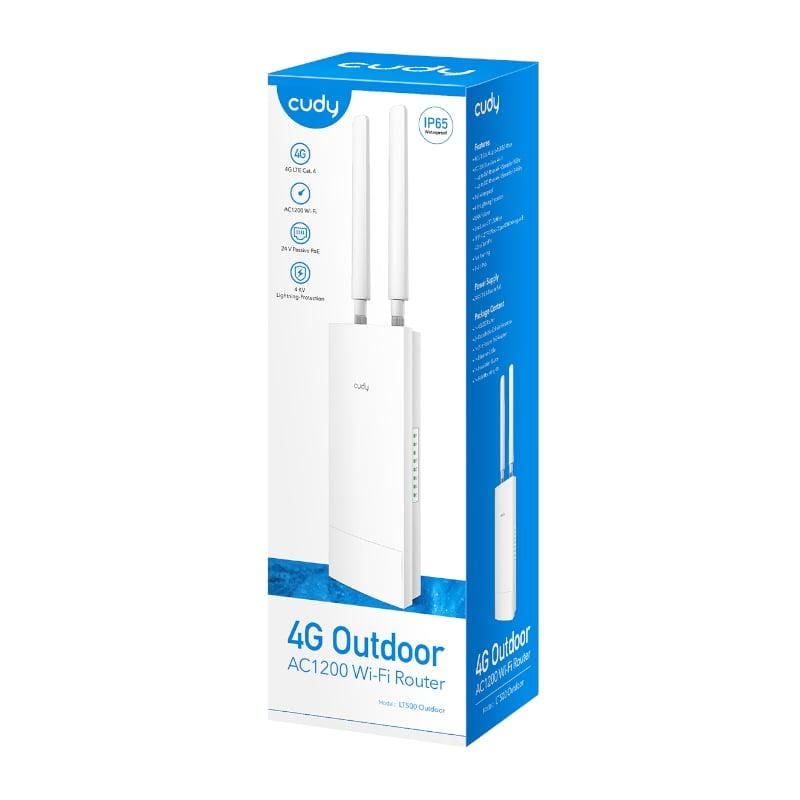

- Cudy LT500 4G LTE Outdoor Wi-Fi Router White x1
- PoE Adapter x1
- Ethernet Cable x1
- WiFi Antenna x2
- Pole Installation Accessory
- User Manual x1
