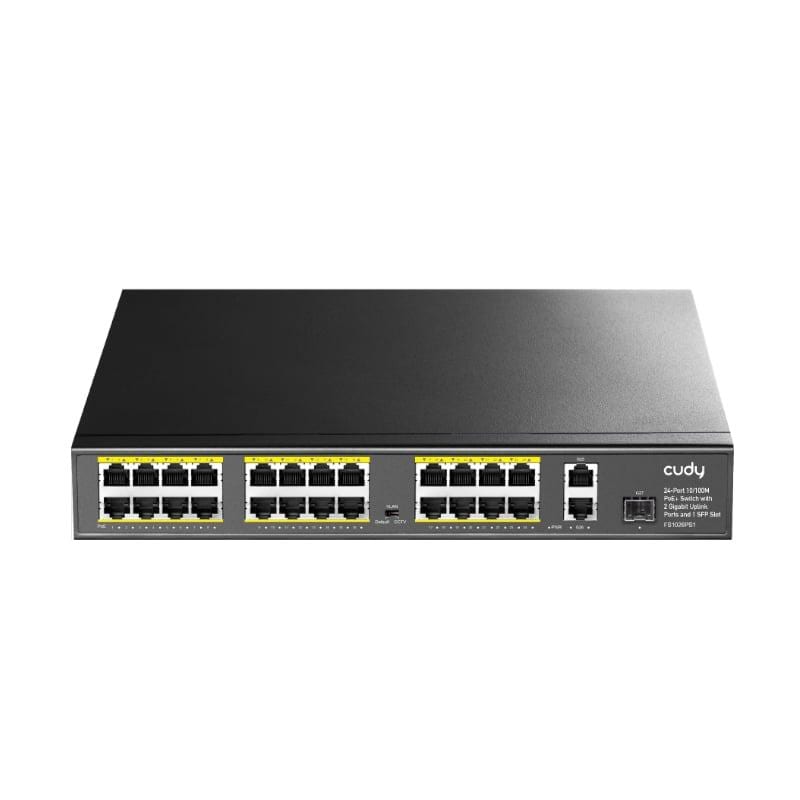

24-PORT UNMANAGED POE SWITCH

Connector Type: 24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot
Network Protocols:
- IEEE802.3
- IEEE802.3u
- IEEE802.3ab
- IEEE802.3x
- IEEE802.3z
PoE Parameters:
- PoE Standard: IEEE802.3af /IEEE802.3at
- Max each port: 15.4W ( IEEE 802.3af )
- Max each port:30W ( IEEE 802.3at )
- PoE compatibility: IEEE 802.3af/at adaptive
- PoE port output: DC48-55V
- Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media:
- 10BASE-T: Cat 6 UTP(=250 meters)
- 100BASE-TX: Cat5 or more UTP (=100 meters)
- 1000BASE-TX: Cat5 or more UTP (=100 meters)
Optical:
- Multi-Mode Fiber: 850nm, 1310nm
- Transmission Distance: 550m/2Km
- Single-Mode Fiber: 1310nm, 1550nm
- Transmission Distance: 20/40/60/80/100/120km
Performance Specification
- Bandwidth: 10.8Gbps
- MAC Address: 2K
- Packet Neck Scarfer Memory: 1M
- Packet Forwarding Rate: 8Mpps
- Forwarding Mode: Store-And-Forward
Power Supply
- Product Input Voltage: AC100-240V 50/60Hz
- Output: 52V5.76A, Power Budget: 300W
Led indicator:
- PWR Power supply indicator(Red):
  - Lighting: Powered
  - Un-Light: No Power
- SW DIP indicator(Green):
  - OFF: Normal
  - Vlan: Lighting
  - Extend: Slow flash
- 1-27 RJ-45 ACT indicator(Green):
  - Lighting: Connecting
  - Flashing: Data Transmit
  - Un-Light: Disconnect
MTBF: 100,000 hours
Product Dimensions: 32 x 21 x 4.6 cm
Product Weight: 1900g
