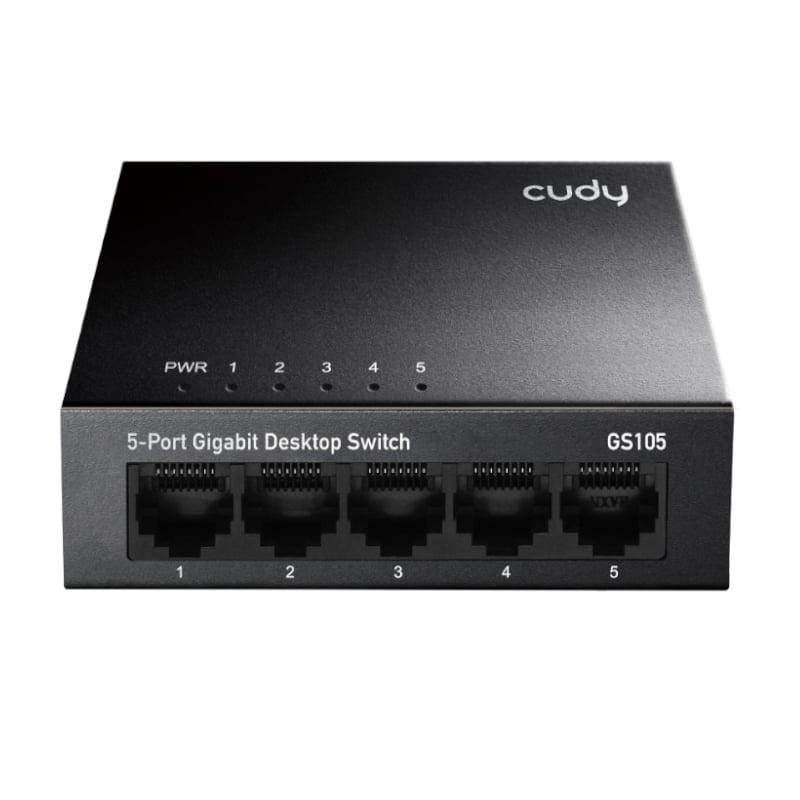

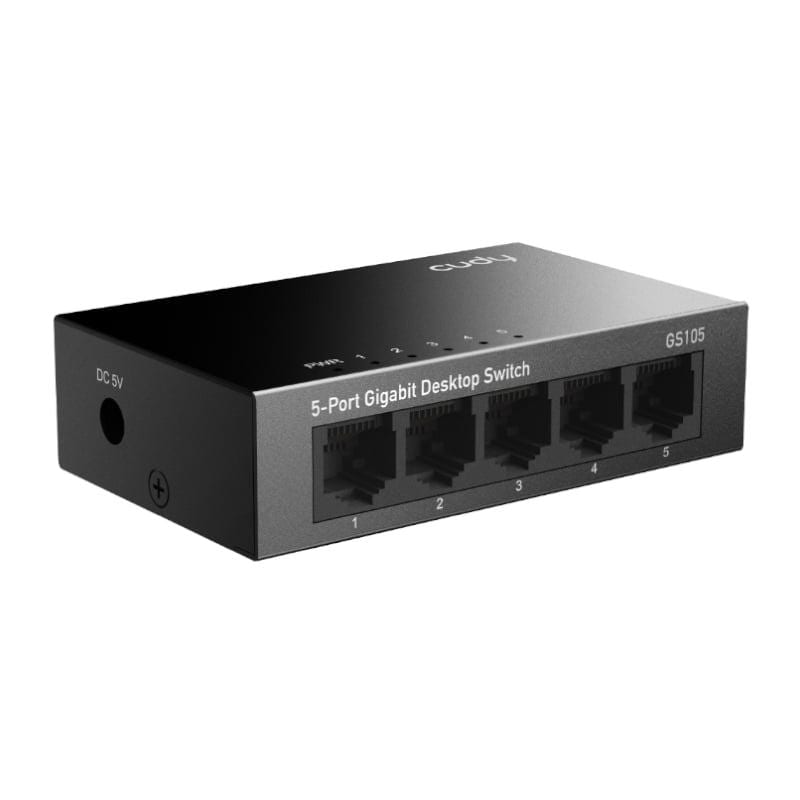

5-PORT GIGABIT METAL SWITCH

Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
5 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
Store-and-Forward switching method
Supports 16K MAC address auto-learning and auto-ageing

Standard configuration: 5 10/100/1000M RJ-45 adaptive ports
Switching Capacity: 10Gbps
Throughput: 7.44Mpps
Packet Neck Scarfer: 1M
MAC Address: 1K
Jumbo Frame: 2K
Transfer Mode: Store and forward
MTBF: 100000 hour
Network protocol:
- IEEE802.3 (10Base-T)
- IEEE802.3u (100Base-TX)
- IEEE802.3ab (1000Base-TX)
- IEEE802.3x (Flow control)
Industry Standard
- EMI: FCC Part 15 CISPR (EN55032) class A
- EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT)
- Shock: IEC 60068-2-27
- Free Fall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
Network Medium
- 10Base-T: Cat3, 4, 5 or above UTP(=100m)
- 100Base-TX: Cat5 or above UTP(=100m)
- 1000Base-TX: Cat5 or above UTP(=100m)
LED Indicators:
- PWR (Power indicator)
- Link (Network Link)
- LOOP (Loop alarm)
VLAN: Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5
Default: Default mode, Support loop alarm
Extend: Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 5 as an uplink port
Power Voltage:
- Power Input Voltage: AC 100-240 V
- Switch Input Voltage: DC 5V
Product Dimensions: 8.7 x 5.4 x 2.3 cm
Product Weight: 200g
