FEATURES:
- Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3z, IEEE802.3af/at/bt, IEEE802.3ad
- Provides 48 10/100/1000Base-T ports and 4 10Gigabit SFP+
- Provides 48 PoE ports,1-4 ports support IEEE802.3af/at/bt, 5-48 ports support IEEE802.3af/at, 750W Built-in power supply
- High back-plane bandwidth 176Gbps
- IEEE802.3x Flow control
- Surge protection for power ports and data ports
SPECIFICATIONS:
- Model: GS2048PS4
- Fixed port:
- 48 10/100/1000Base-T ports
- 4 x 10Gigabit SFP+ ports
- 1 x Console port
- 1 x USB port
- 1 x Reset hole
- LED Indicators: PWR, PoE, Link/Act LED
- Input voltage: 100V~240V AC 50/60Hz
- Power consumption: 750W (720W for PoE)
- CPU: 400MHz ARM Cortex-A9
- DDR: 2G DDR3 800MHz
- RAM: 256Mbits
- Flash Memory: 64Mbits
- Operating temperature: 0°C~40°C
- Storage temperature: -40°C~70°C
- Relative humidity: 5%~95% (non-condensing)
- Thermal methods: Built-in FAN
- PoE port:
- 48 PoE ports
- 1-4 ports support IEEE802.3af/at/bt
- 5-48 ports support IEEE802.3af/at
- PoE Standard: IEEE 802.3af/at/bt
- Pin assignment:
- IEEE 802.3af/at/: 2 pairs
- V+ (RJ45 Pin 3, 6), V- (RJ45 Pin 1, 2)
- IEEE 802.3bt/: 4 pairs
- V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6)
- V+ (RJ45 Pin 4, 5), V- (RJ45 Pin 7, 8)
- PoE management: Support Port-base PoE status view and control
- Switching capacity: 176Gbps
- Packet Buffer: 16Mbits
- Throughput: 130.944Mpps
WHATS IN THE BOX:

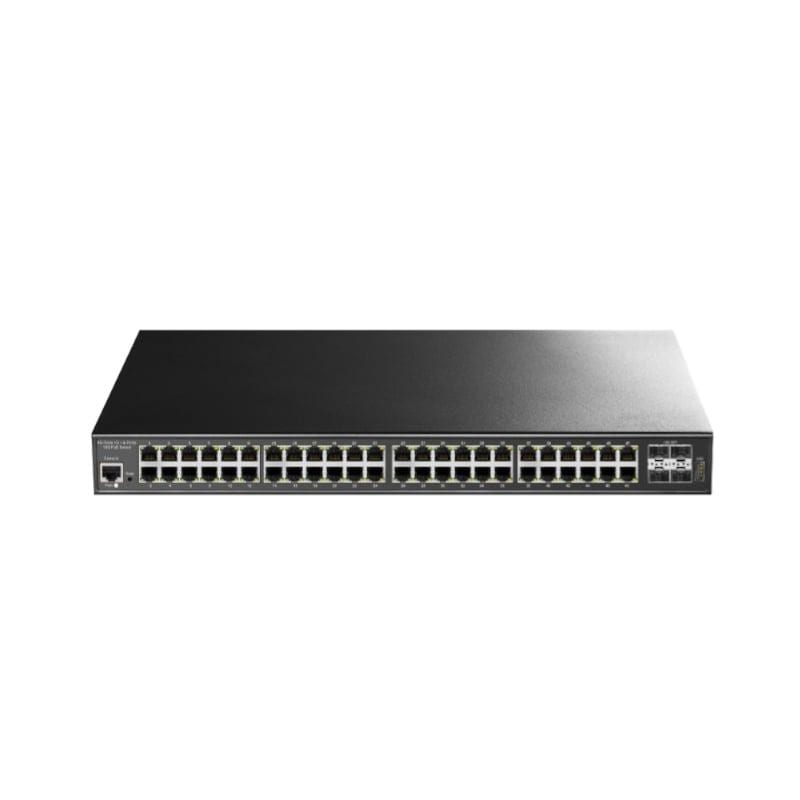

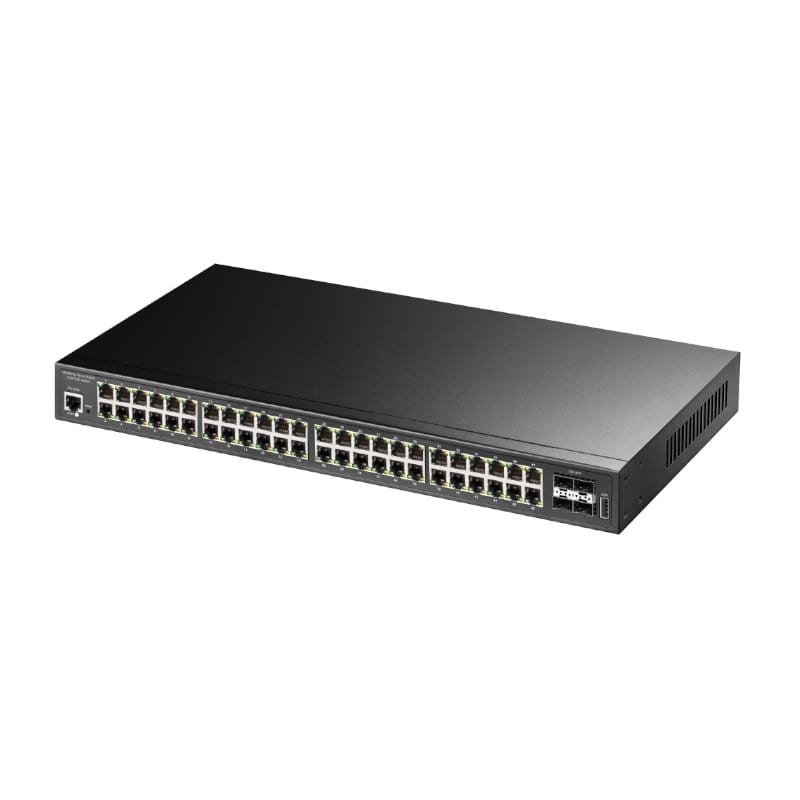

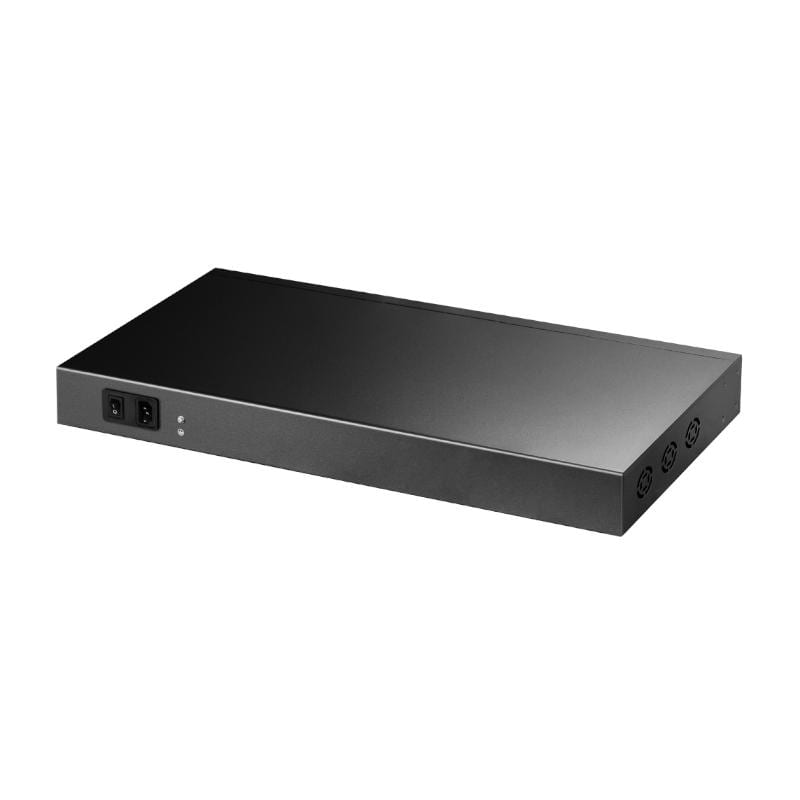

- Cudy 48-Port L2 Managed Gigabit PoE++ Switch with 4x 10G SFP Slots Black x1
- Power Cable x1
- Mounting Brackets x2
- Quick Start Guide x1
