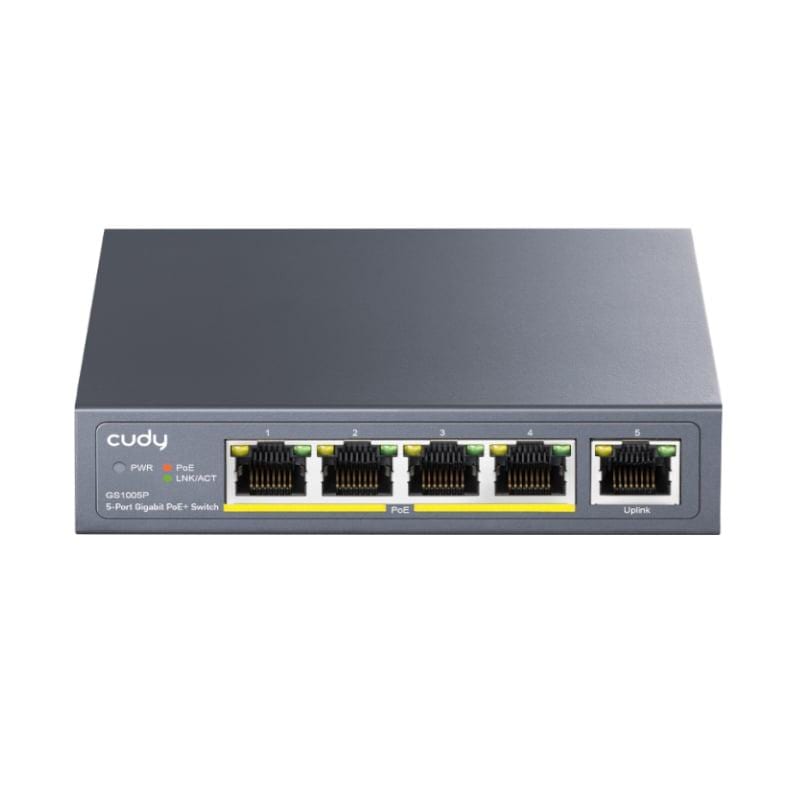

5-PORT GIGABIT POE+ UNMANAGED SWITC

FEATURES:

• Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
• Provides 5 10/100/1000Base-TX ports
• 60W PoE power output total
• High back-plane bandwidth 10Gbps
• IEEE802.3x Flow control
• EMI standards complies with FCC, CE class B

SPECIFICATIONS:

• Power:
  • Power supply: External Power Adaptor
  • Voltage Range: DC48~57V
  • Switch Consumption: <5W
• Ethernet:
  • Speed:
    • 1~5 Port: 10/100/1000Mbps
    • Uplink: 10/100/1000Mbps
  • Transmission Distance: 100Meter (328ft)
• Network Switch
  • Ethernet Standard: IEEE 802.3/802.3u/802.3ab/802.3af/at
  • Switching capacity: 10G
  • Transfer Rate:
    • 14,880pps for 10Mbps
    • 148,800pps for 100Mbps
    • 1,488,000pps for 1000Mbps
  • MAC Address: 2K MAC address table
• LINK/ACT:
  • On – Green: The port is connecting
  • Blinks: The port is receiving or transmitting data
  • Off: The port is not linked successfully with the device
• POE
  • On – Orange: PD is connected
  • OFF: No PD is connected or power forwarding fails
  • Capacity: 60W
  • PoE pin assignment: V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
• Colour: Grey
• Product Dimensions: 11.9 x 8.5 x 2.8 cm

WHAT’S IN THE BOX:

• Cudy GS1005P 5-Port Gigabit POE+ Switch – Grey x1
• Power Adapter x1
• Mounting bracket x2
• Mounting Screws x6
