FEATURES:
- BE9300 Wi-Fi 7 support
- Bluetooth 5.4 support
- Tri-Band 2.4GHz/5GHz/6GHz
- PCIe interface
- Rotating adjustable dual antenna
- Mini ITX bracket included
- Works on Intel-Platform Windows 11 PC
SPECIFICATIONS:
- Chipset: Intel BE200
- Wireless:
- 6GHz Wi-Fi Speed: 5760Mbps
- 5GHz Wi-Fi Speed: 2882Mbps
- 2.4GHz Wi-Fi Speed: 688Mbps
- 6GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
- 5GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
- 2.4GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
- Wi-Fi Antennas: 2× Detachable
- 6GHz Antenna Gain Max: 5.32dBi
- 5GHz Antenna Gain Max: 4.54dBi
- 2.4GHz Antenna Gain Max: 3.09dBi
- Detachable Wi-Fi Antennas Connector: RP-SMA Female
- Environment:
- Ambient Operating Temperature: 0 ? ~ 70 ? (32 ? ~158 ?)
- Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
- Hardware Requirement:
- Requires a PCI-E 1x or higher standard slot on the motherboard for powering and the Wi-Fi function
- Requires a USB 9-PIN slot on the motherboard for the Bluetooth function
- Compatible OS:
- Windows 11 64-Bit
- PC with Intel CPU
- Driver Installation:
- Manual driver installation for Windows. Driver available in the Download Center.
- Product Dimensions: 7 x 4.5 x 2 cm
- Product Dimensions (Antenna): 1.5 x 1.5 x 22.1 cm
- Product Weight: 114.5g

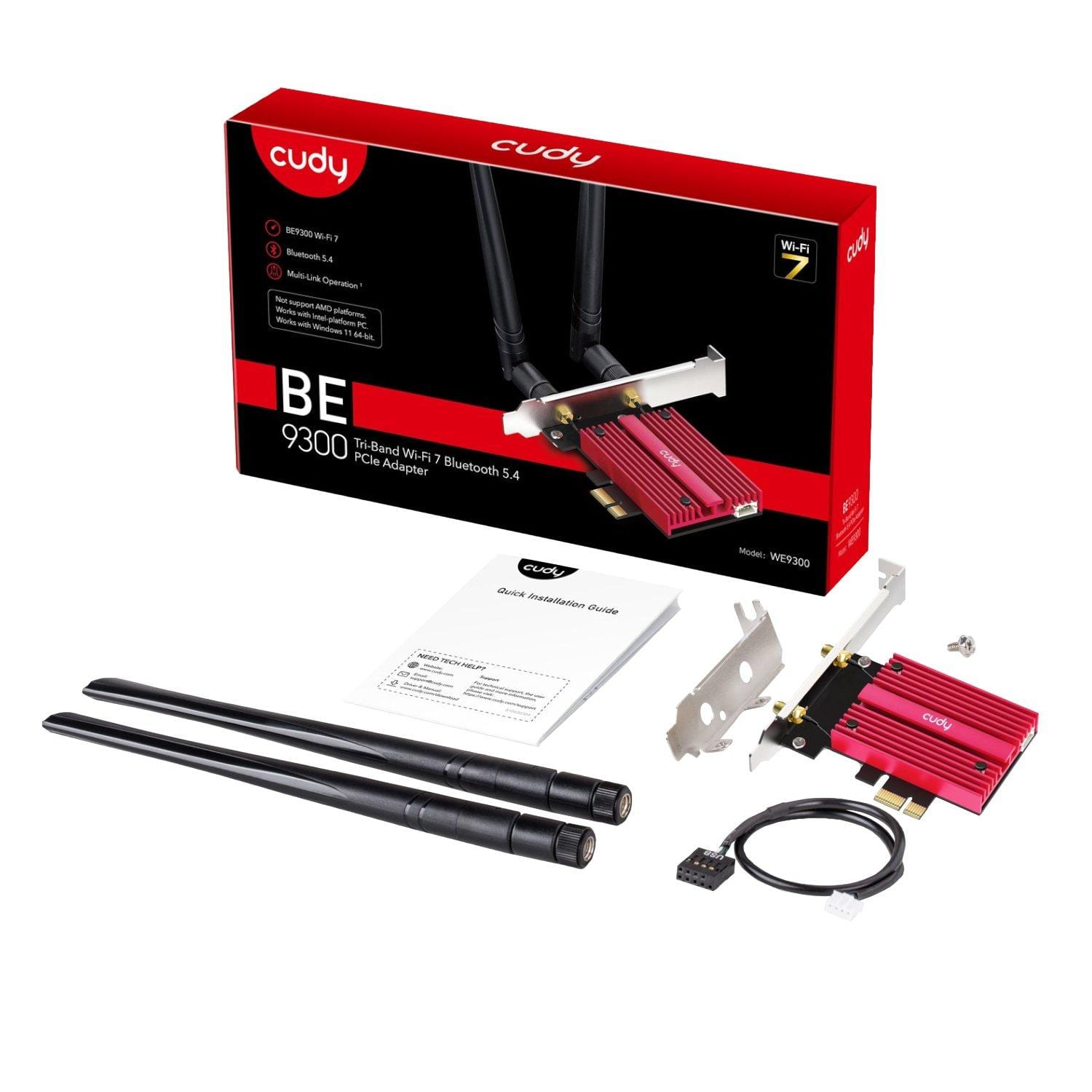

WHATS IN THE BOX:
- Cudy BE9300 Tri-Band Wi-Fi 7 | Bluetooth 5.4 PCIe Adapter Red x1
- Detachable Antennas x2
- Bluetooth to 9-PIN USB Cable x1
- Low-profile Mini-ITX Bracket x1
- Installation Guide x1
