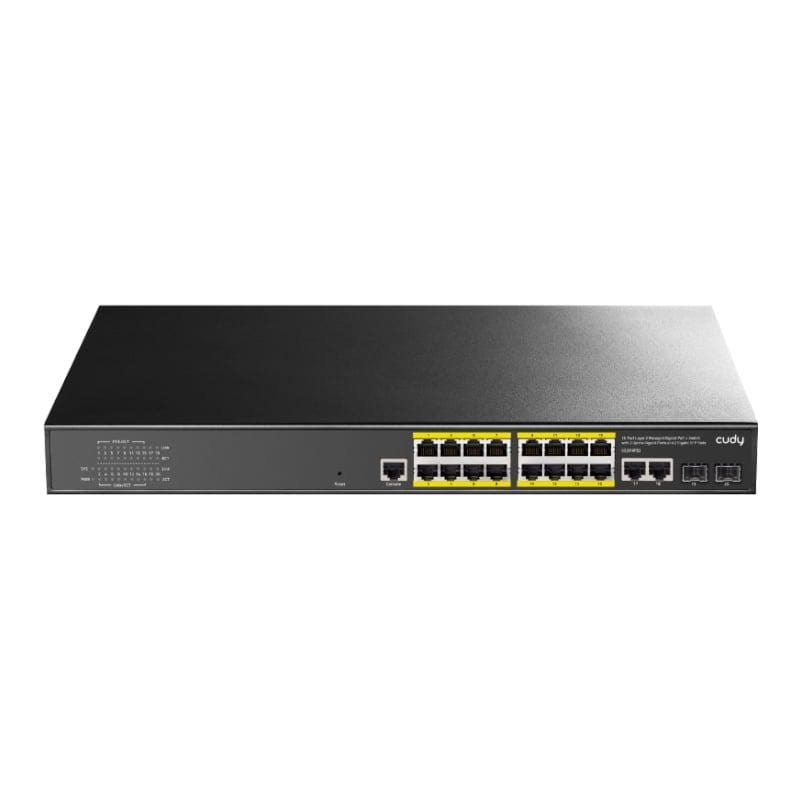

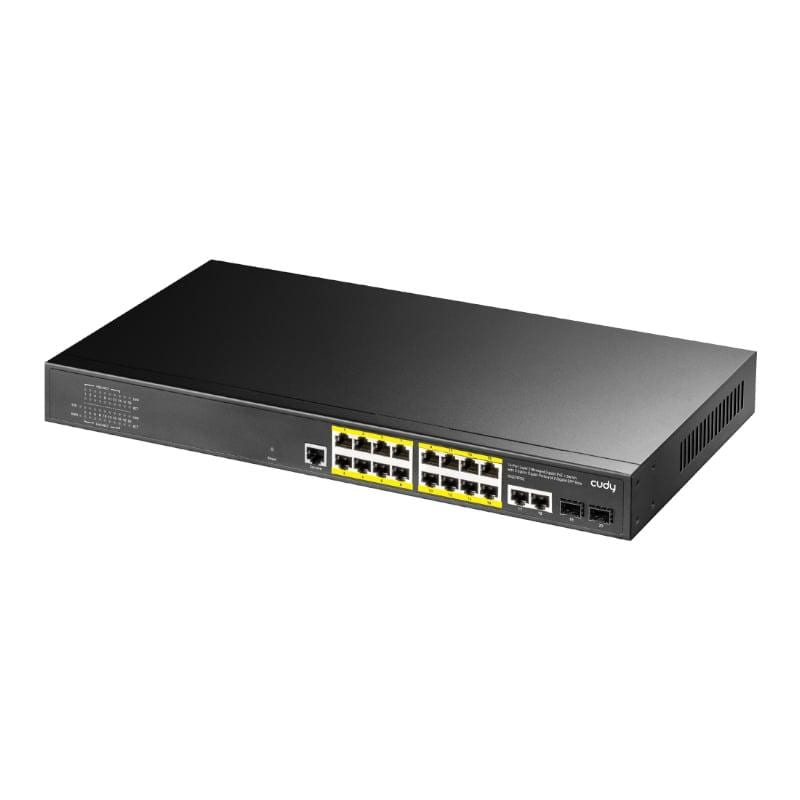

16 PORT LAYER 2 MANAGED GIGABIT POE

FEATURES:

16 Gigabit POE Ports, 2 Uplink Gigabit Ports and 2 Gigabit SFP Slots 1 Console Port
Compatible with IEEE802.3at and IEEE802.3af
Ethernet port supports 10/100/1000M adaptive
Fanless design, natural cooling, compatible with 1U Rack Mount
Support PoE Power Management, PoE watchdog
Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 15KV

SPECIFICATIONS:

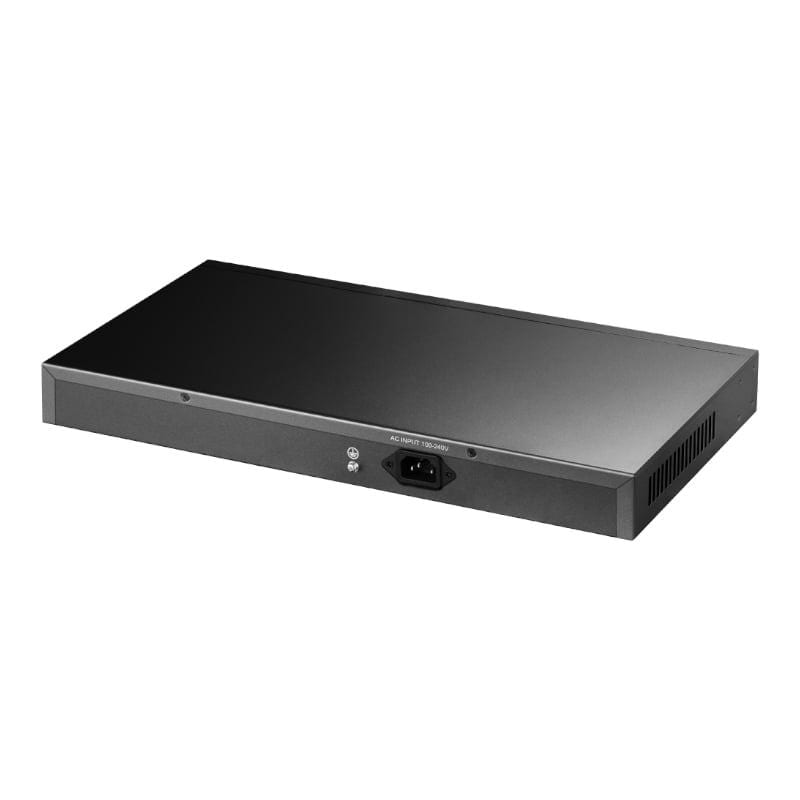

AC Input: AC100-240V, 50/60Hz
Ethernet Port: 16 x 10/100/1000Mbps PoE Port, 2 x 1000Mbps SFP Port, 2 x 1000Mbps Uplink Port, 1 x RJ45 Console Port
Bandwidth: 40Gbps
Packet Forwarding rate: 19.76Mpps
DDR SDRAM: 128MB
Flash Memory: 16MB
Packet Neck Scarfer Memory: 4M
MAC Address: 8K
Jumbo frame: 9.6Kbytes
VLANs: 4096
Network Protocols:
IEEE 802.3: Ethernet MAC Protocol
IEEE 802.3i: 10BASE-T Ethernet
IEEE 802.3u: 100BASE-TX Fast Ethernet
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical ?ber)
IEEE 802.3ad: Standard method for performing link aggregation
IEEE 802.3x: Flow control
IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p: LAN Layer QoS/CoS Protocol Traf?c Prioritization (Multicast ?ltering function)
IEEE 802.1q: VLAN Bridge Operation
IEEE 802.1x: Client/Server Access Control and Authentication Protocol
IEEE 802.1d: STP
IEEE 802.1s: MSTP
IEEE 802.1w: RSTP
PoE protocol: IEEE802.3af (15.4 W), IEEE802.3at (30 W)
Network Media: 10BASE-T: Cat3, 4, 5 or above UTP(=100 M), 100BASE-TX: Cat5 or above UTP(=100 M), 1000BASE-TX: Cat5 or above UTP(=100 M)
Fiber Medium: Multi-mode Fiber: 50/125, 62.5/125, 100/140um, Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Working Environment: Operating temperature: -20~50°C, Storage temperature: -40~85°C, Operating Humidity: 10%~90%, No condensation, Storage Humidity: 5%~90%, No condensation, Working height: Up to 10,000 feet, Storage height: Up to 10,000 feet
Indicator: PWR, SYS, PoE, Link/ACT
PWR (Power Indicator): Lighting: Powered, Un-Light: No Power
SYS (System Indicator): Flashing: System Start-up, Lighting: System Running
PoE: Lighting: PoE on, Un-Light: PoE off
Link/ACT: Lighting: Link connection, Flashing: Data transmission, Un-Light: Link disconnect
VLAN: 1-16 ports are isolated from each other, and the PoE Watchdog function is open (hardware takes precedence over software)
Default: All ports can communicate with each other, PoE Watchdog is closed
Extend: 13-16 Port: Supports 250m link extension at a rate of 10M, other ports normal, PoE Watchdog open (hardware takes precedence over software)
Reset: Short press restart, long press 5 seconds to restore factory Settings
