FEATURES:
- 24 Gigabit POE Ports, 4 Gigabit Combo Ports, 1 Console Port
- Compatible with IEEE802.3at and IEEE802.3af
- Ethernet port supports 10/100/1000M adaptive and POE functions
- Fanless design, Natural Cooling, 1U Rack Mount
- Support WEB, TELNET, CLI, SSH, SNMP, RMON management
- Support POE Power Management
- Lightning Protection Surge
SPECIFICATIONS:
- Technical Indicators:
- Bandwidth: 56Gbps (non-blocking)
- Packet Forwarding rate: 41.66Mpps
- Packet Neck Scarfer Memory: 4M
- Memory Capacity: 128MB
- Flash Capacity: 16MB
- Jumbo frame: 9.6Kbytes
- VLANs: 4096
- MAC: 8K
- Forwarding Mode: Store-And-Forward
- Interface:
- 24 x 10/100/1000M POE Ports + 4 x Gigabit SFP/TP Combo Ports + 1 x Console Port
- Network Protocols:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab/ad/az/af/at
- IEEE 802.3x
- IEEE 802.1q
- IEEE 802.1p, QoS
- IGMP Snooping
- PoE Parameters:
- PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)
- PoE compatibility: IEEE 802.3af/at adaptive
- POE port output: DC48-55V
- Power Pin Assignment: Power over spare pairs 1/2(+) and 3/6 (-)
- Port Lightning Protection:
- General Mode 6KV
- Differential Mode 4KV
- ESD 15KV
- Network Transmission Medium:
- 10BASE-T: Cat3, 4, 5 UTP (= 100 m)
- 100BASE-TX: UTP (=100 m) above Cat5
- 1000BASE-TX: UTP (=100 m) above Cat5
- Optical:
- Multimode fiber: 1310nm, 2Km
- Single-mode fiber: 1310nm, 20/40 Km, 1550nm, 60/80/100/120Km
- The LED indicator:
- SYS, PWR, Link (lines 2, 4) / Act (lines 1, 3)
- Power Supply:
- Machine input voltage: AC110-240V
- Output: DC52V 5.76A
- Total power: 300W
- Working Environment:
- Operating Temperature: -20° ~ 55 °C
- Storage Temperature: -40 ° ~ 85 °C
- Operating Humidity: 10% ~ 95%, non-condensing
- Working height: up to 10,000 feet (3,000 meters)
- Storage height: up to 10,000 feet (3,000 meters)
- Product Dimensions: 44.5 x 28.5 x 4.5 cm
WHATS IN THE BOX:

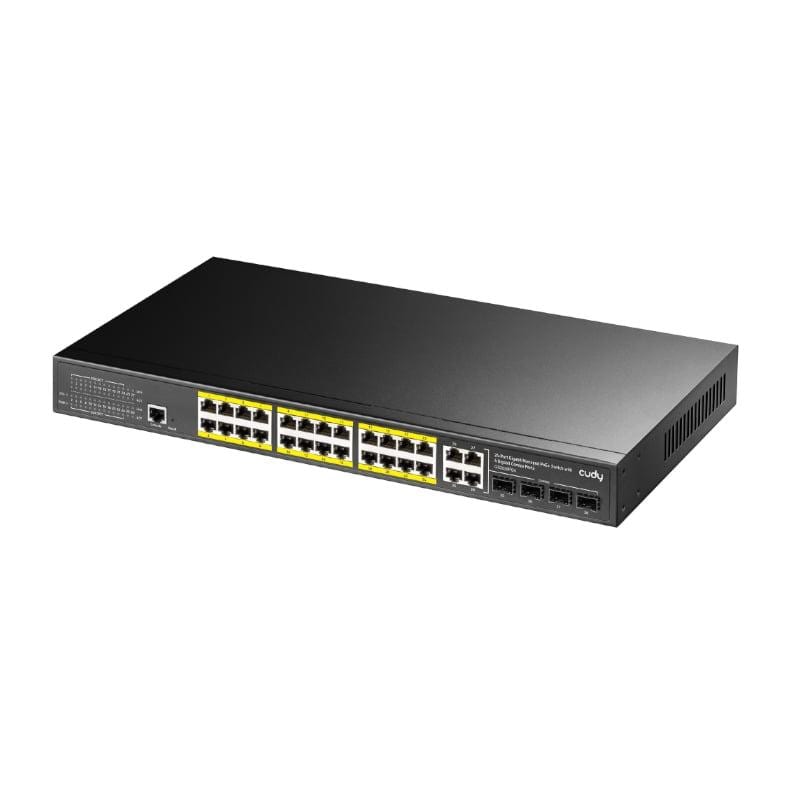

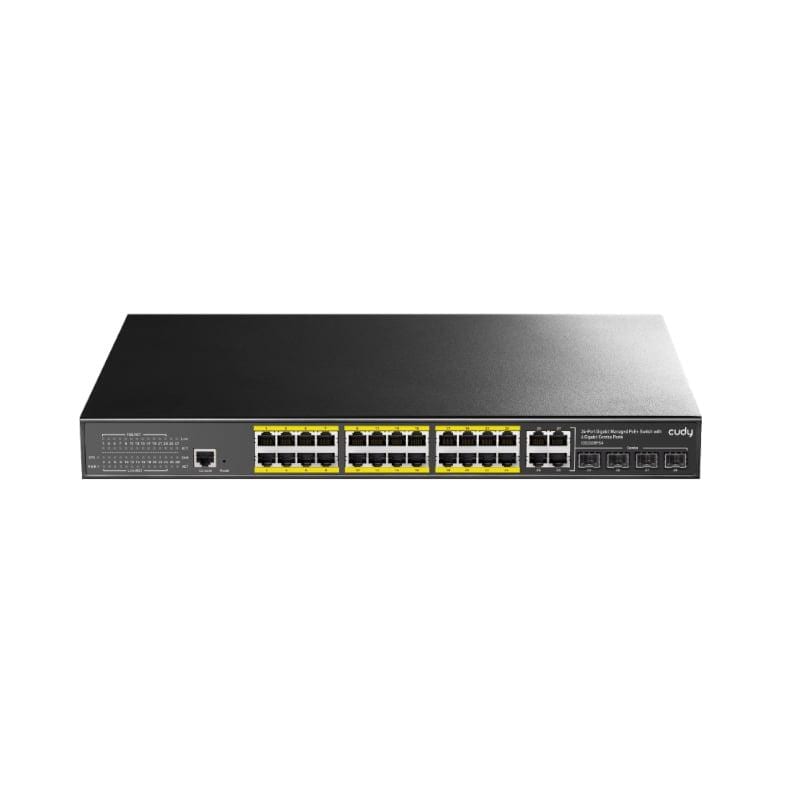

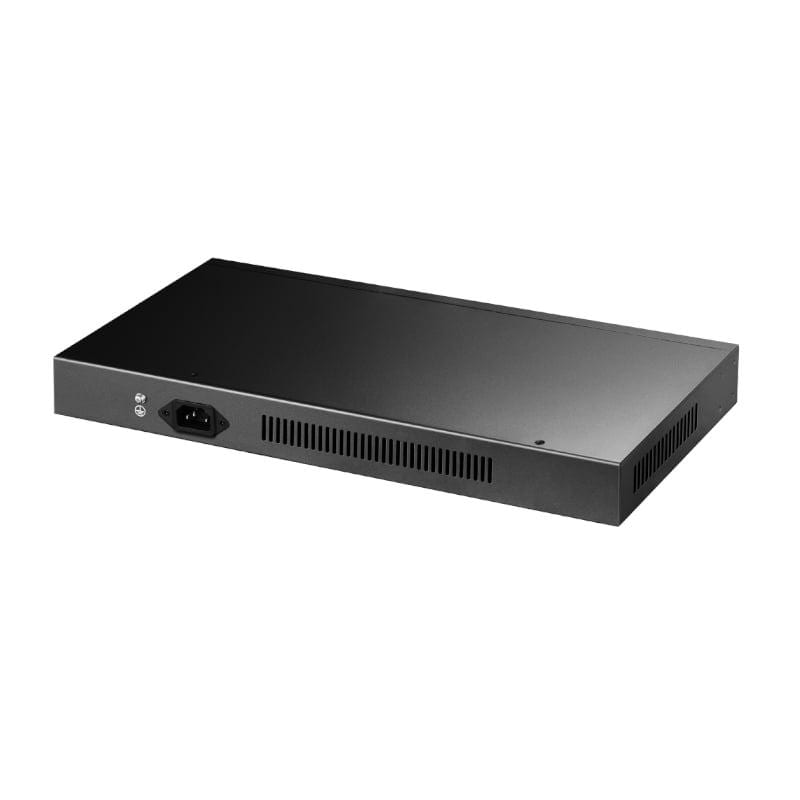

- Cudy 24-Port Managed Gigabit PoE+ Switch with 4 Gigabit Combo Ports x1
