FEATURES:
- Energy-Efficient Ethernet (EEE)
- 10 Gigabit high-speed connectivity
- Supports PCI-E x4, x8, and x16 slots
- Includes standard and low-profile brackets for flexible installation in desktop PCs or compact chassis
- RJ45 interface with CAT6A support to deliver full 10G throughput
- Backwards compatible with 100M, 1G, and 2.5G networks
SPECIFICATIONS:
- Chipset: AQC113
- 10G RJ45 Ports: 1
- LED: Speed/Link/ACT of Ethernet Port
- 802.3 Protocols:
- 802.3x Flow Control
- 802.3az Power Saving
- 802.3i 10BASE-T
- 802.3u 100BASE-T
- 802.3ab 1000BASE-T
- 802.3bz 2.5GBASE-T and 5GBASE-T
- 802.3an 10GBASE-T
- Data Rate: Auto negotiation between 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, and 10 Gbps
- Hardware Requirement: PCI-E 3.0 x4 or higher slot on the motherboard for powering and the Ethernet function
- Compatible OS: Windows 10/11 64-bit, Windows Server 2022, Linux. DSM 7.2+
- Ambient Operating Temperature: 0 ? ~ 65 ?
- Storage Temperature: -40 ? ~ 70 ?
- Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 95% non-condensing
- Certifications: FCC, CE
- Main Part Dimension (without the bracket): 10 × 6.6 × 1.5 cm
- Product Weight: 84.5 g

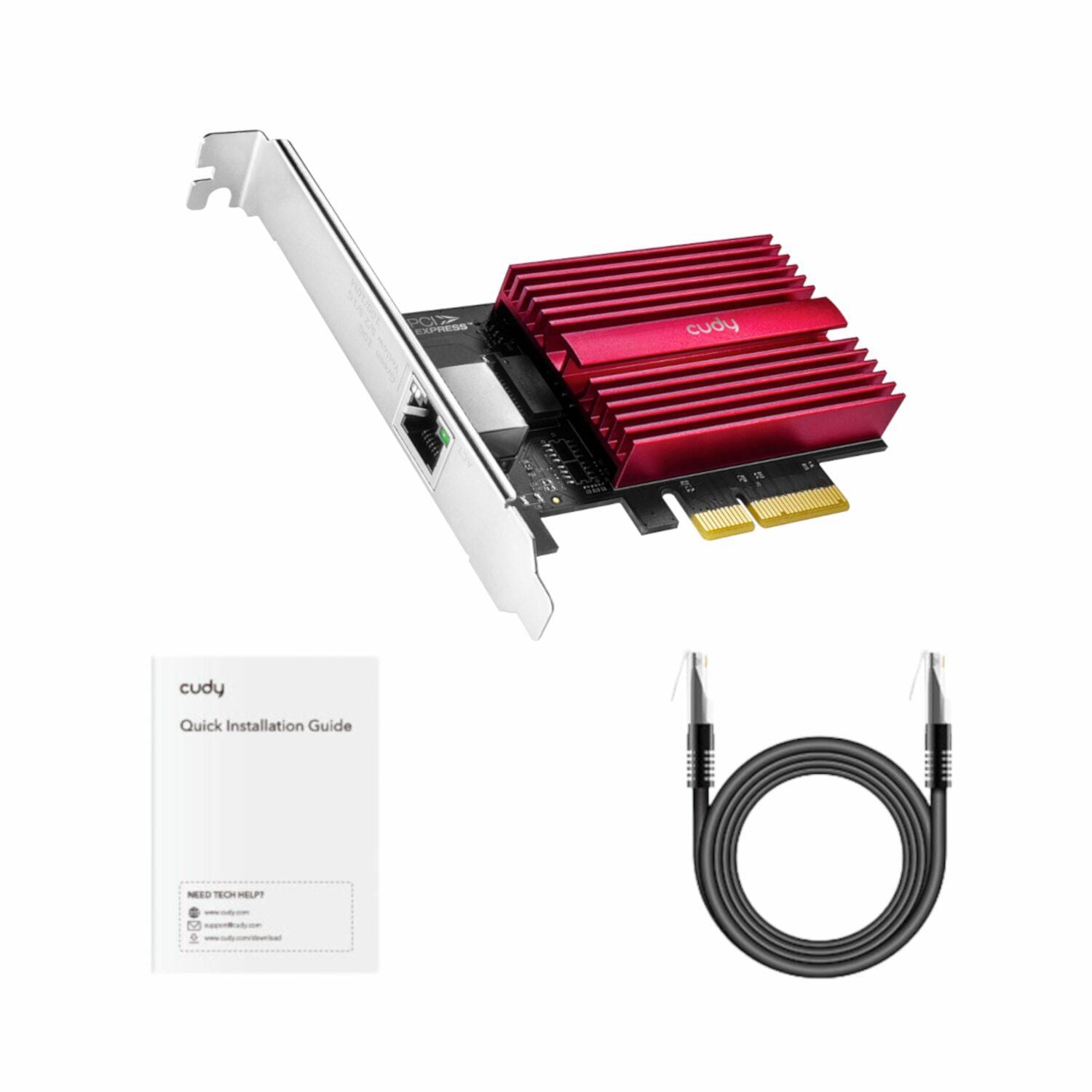

WHATS IN THE BOX:
- Cudy PE10G Network Adapter 10Gbps, PCI Express x1
- Low-Profile Bracket x1
- Installation Guide x1
- Ethernet Cable x1
