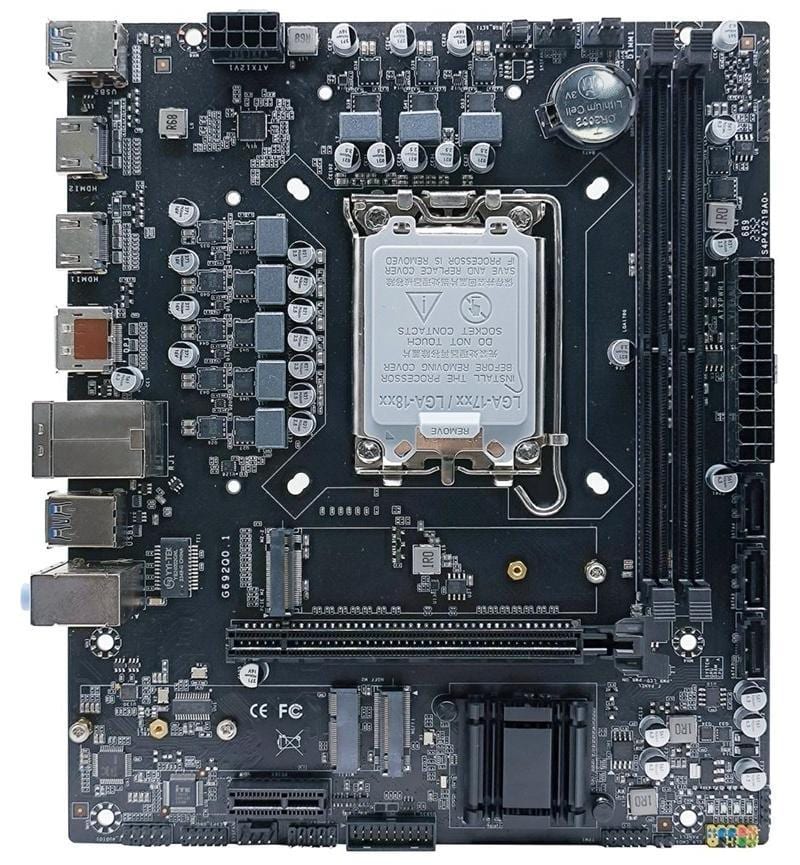

ARKTEK AK-H610M EG Intel H610 LGA1700 Micro-ATX Motherboard
The ARKTEK AK-H610M EG is a Micro-ATX motherboard designed for compatible Intel LGA1700 processors. It supports dual-channel DDR4 memory, M.2 storage and multiple display outputs, making it suitable for modern home, office and performance desktop builds.
Specifications
- Brand: ARKTEK
- Model: AK-H610M EG
- Product Type: Desktop Motherboard
- Form Factor: Micro-ATX
- Dimensions: 22 × 18cm
- CPU Socket: Intel LGA1700
- Chipset: Intel H610
- Supported Processors: Compatible 12th, 13th and 14th generation Intel Core i9, Core i7, Core i5 and Core i3 processors
- Memory Type: Dual-channel DDR4
- Memory Slots: 2 × DDR4 DIMM slots
- Supported Memory Speeds: Up to 3200MHz
- Maximum Memory: Up to 64GB
- Graphics: Supports integrated Intel graphics from compatible processors
- Display Outputs: 1 × HDMI, 1 × DisplayPort and 1 × VGA
- LAN: Realtek 8111H 10/100/1000Mbps Gigabit Ethernet
- Network Features: Wake-on-LAN and PXE support
- Audio: Built-in 6-channel HD audio
- Storage Connections: 3 × SATA 3.0 ports
- M.2 Storage: 1 × M.2 slot
- Wireless Expansion: 1 × M.2 Wi-Fi/Bluetooth slot
- Expansion Slots: 1 × PCI Express x16 and 1 × PCI Express x1

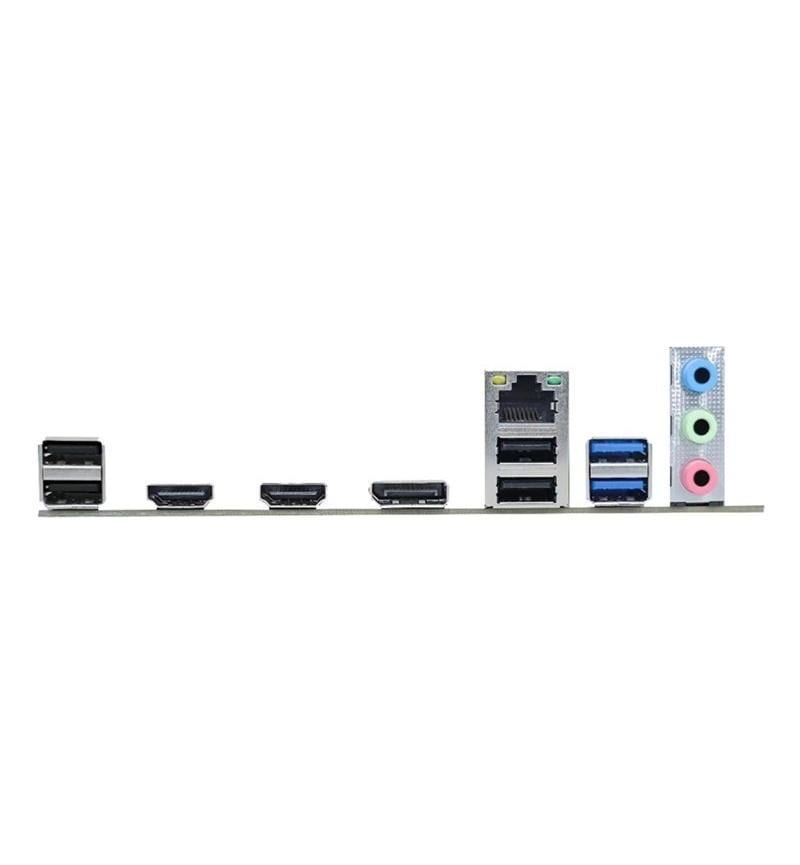

- Rear USB Ports: 2 × USB 2.0 and 2 × USB 3.0
- Internal USB Headers: USB 2.0 and USB 3.0 headers
- Other Connections: PS/2, COM header, RJ45 LAN and audio ports
Please note: The processor, memory, storage, Wi-Fi module and other components are sold separately. Display outputs require a processor with integrated graphics. Processor compatibility may depend on the installed BIOS version.

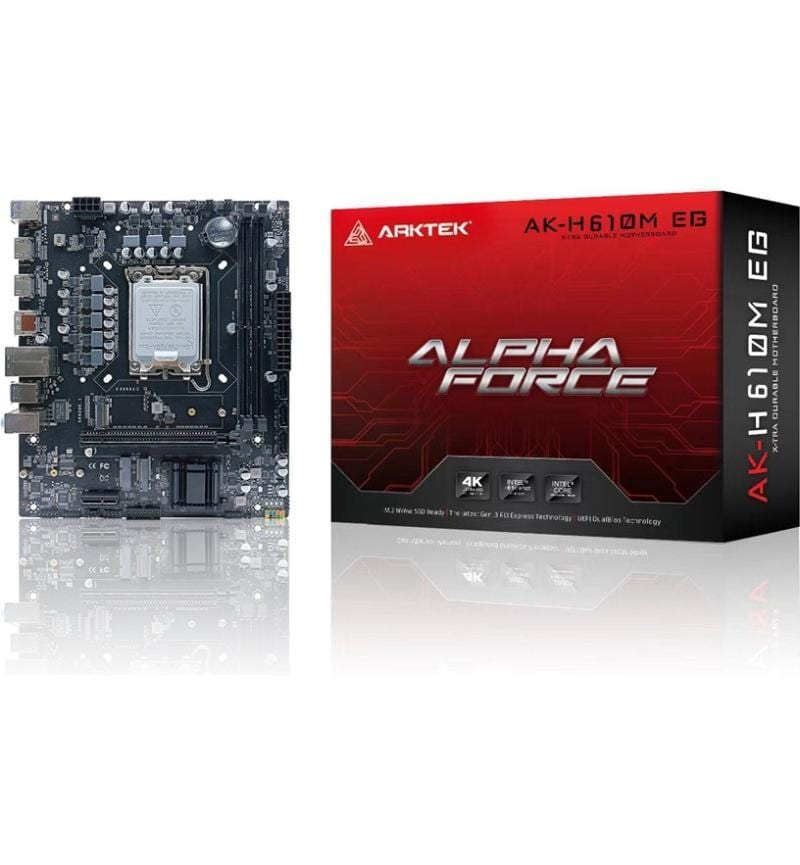

Whats in the Box?
- 1 × ARKTEK AK-H610M EG Motherboard
- 1 × SATA Cable
- 1 × I/O Shield
- 1 × User Manual
- 1 × Driver Disc
