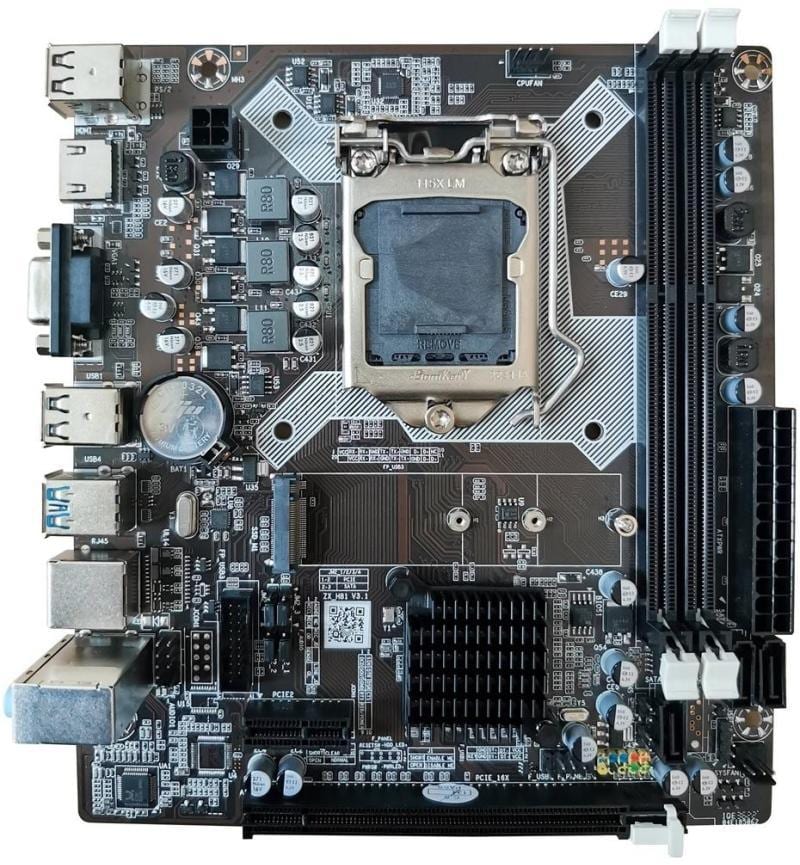

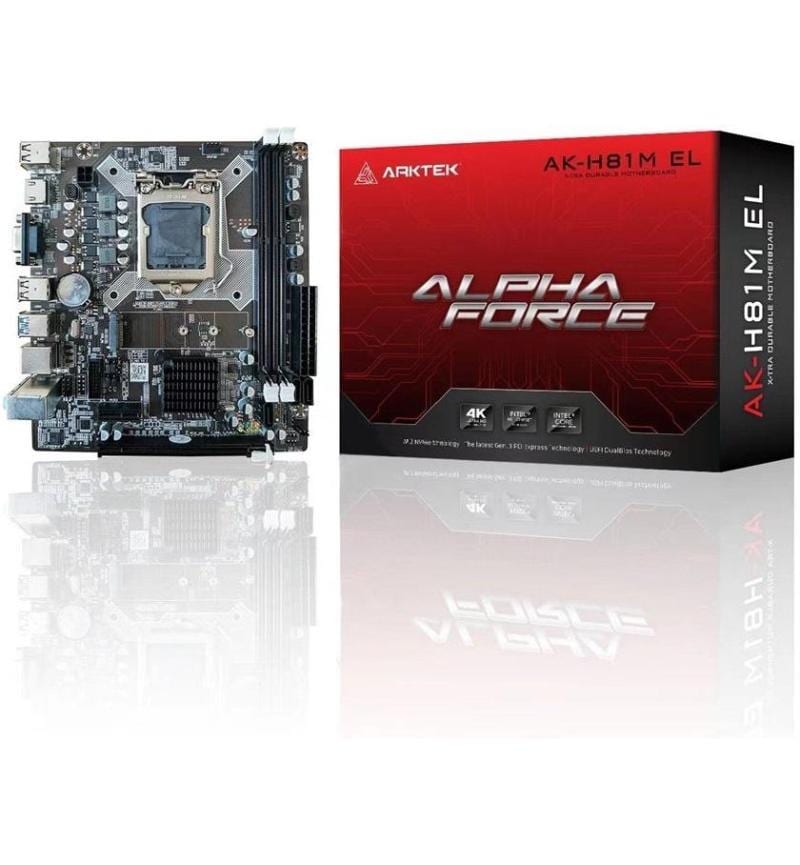

H81 CHIPSET,1150, M-ATX - AK-H81M EL
CPU Support: Support Intel Core i7/i5/i3/Pentium/ Celeron Processors in the LGA1150 Package
Support Intel 4th Generation Multi-Core Processors
Chipset : Intel H81 Chipset
On-Board Graphics: Integrated Graphics Processor
Memory: Dual Channel DDR3 1066/1333/1600MHz, Supports Non-ECC, Un-Buffered Memory
DIMM: 2 x Memory Slots (Max. up to 8GB each)
LAN: Onboard Realtek RTL8105E/8111E Gigabit 100/1000 Mbps (Optional)
Audio: Onboard Realtek 662 6-Channel HD Audio Codec Front Panel Audio-Out, Mic-In Jack
SATA: 3 x SATA, 1 x M.2 Supports NVME+NGFF

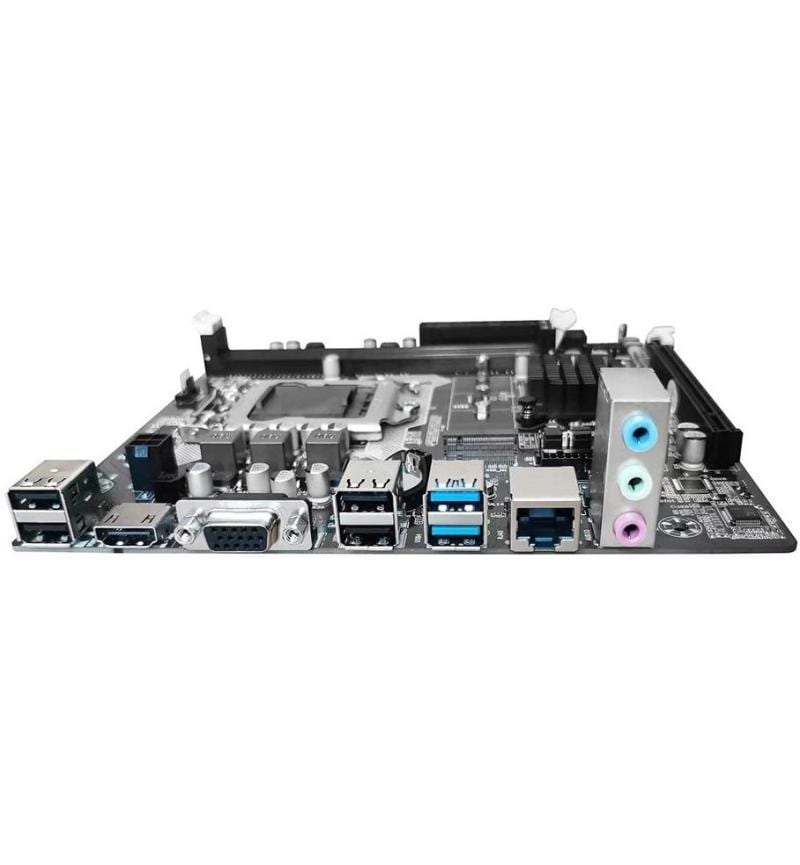

Back Panel I/O Ports: 1 x VGA Port 1 x HDMI Port
4 x USB 2.0 Port
2 x USB 3.0 Port
1 x LAN Jack
3 x Audio Jack (Line in / Line Out / Mic In)
ON-Board Pinheaders /Connectors: 1 x USB 2.0 Pinheader Supports Additional
2 USB 2.0 Ports
1 x Front Panel Audio Pinheader
Slots: 1 x PCI Express x16 Slot
BIOS: UEFI BIOS
Form Factor: Micro-ATX (19 x 17 cm)
Mounting: 6 Mounting Holes
Accessories
1 x SATA Cable
1 x I/O Backboard
1 x User Manual
1 x Driver CD
