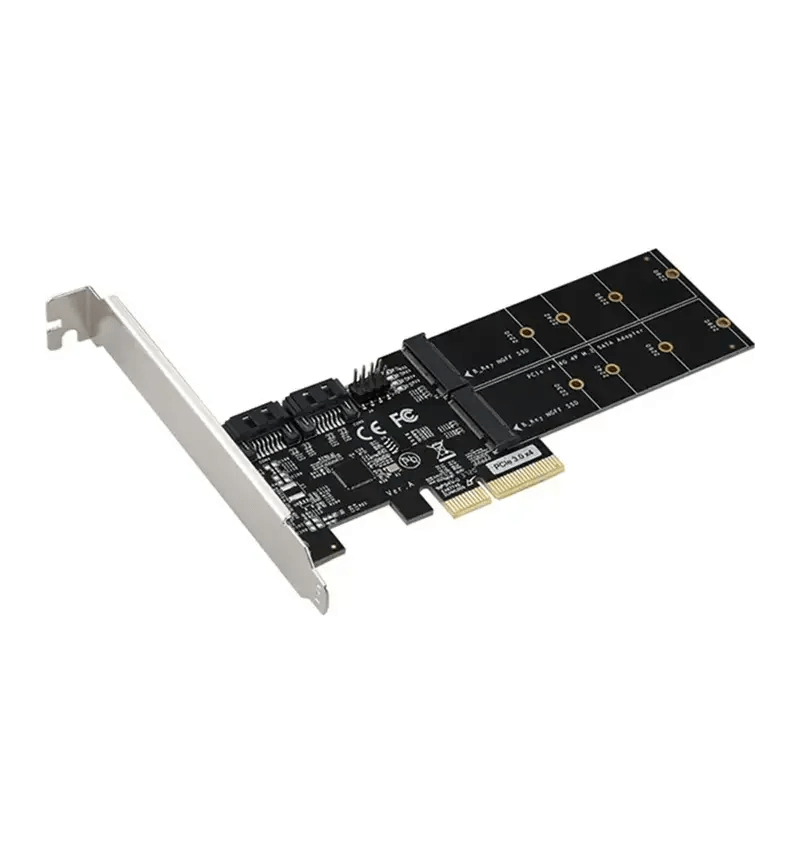

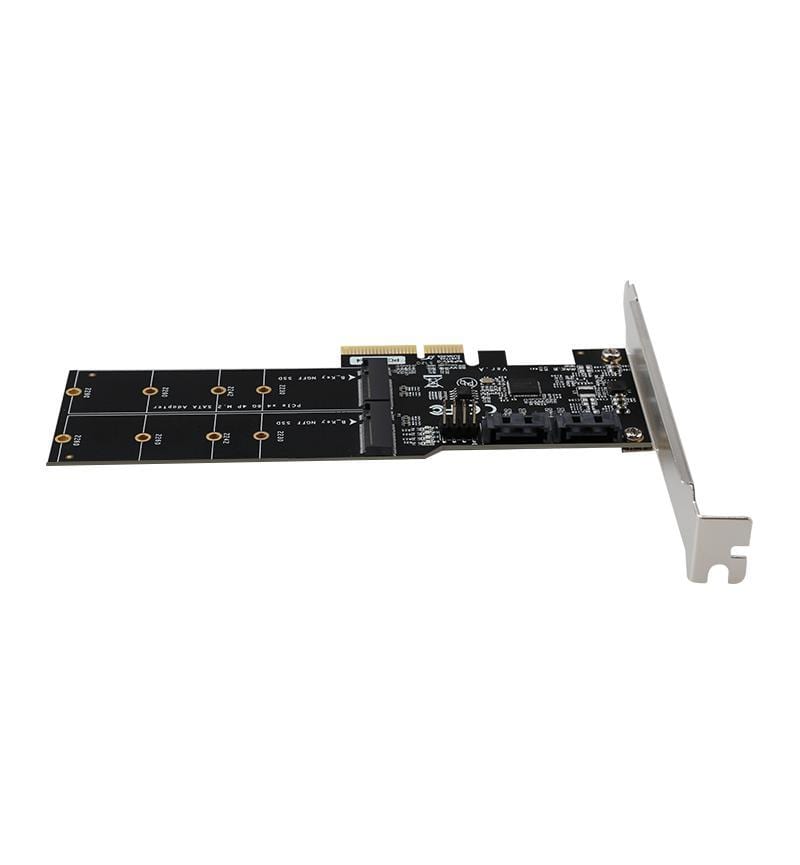

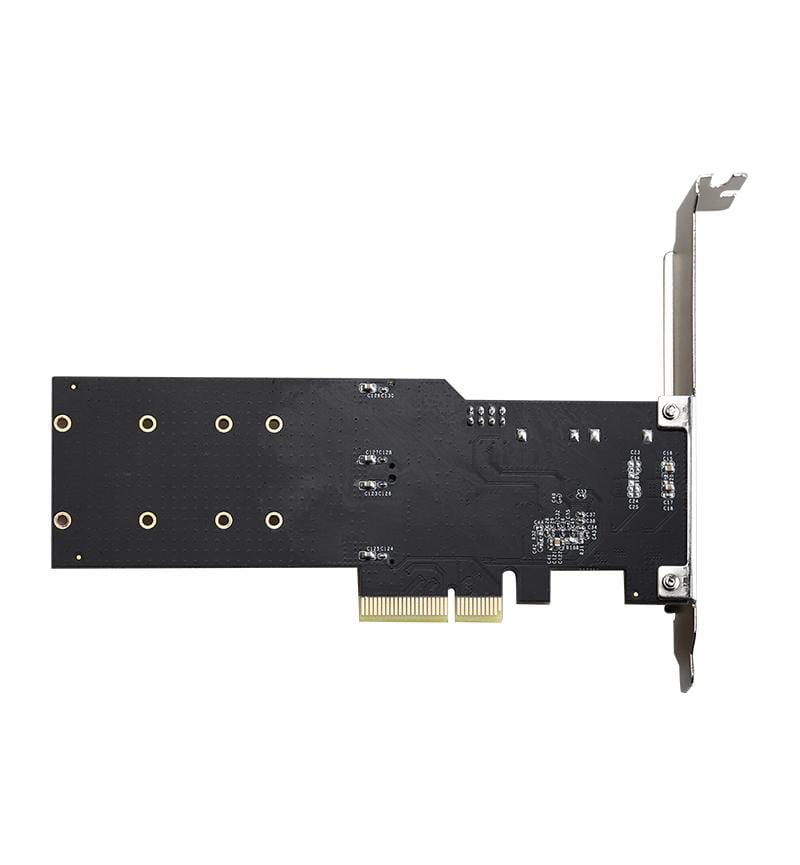

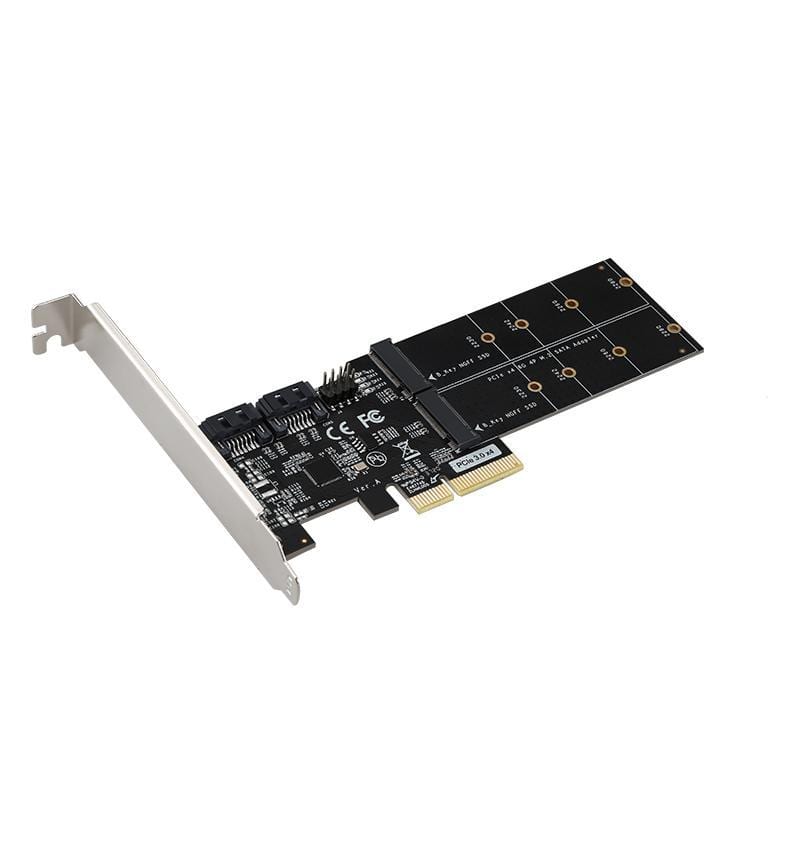

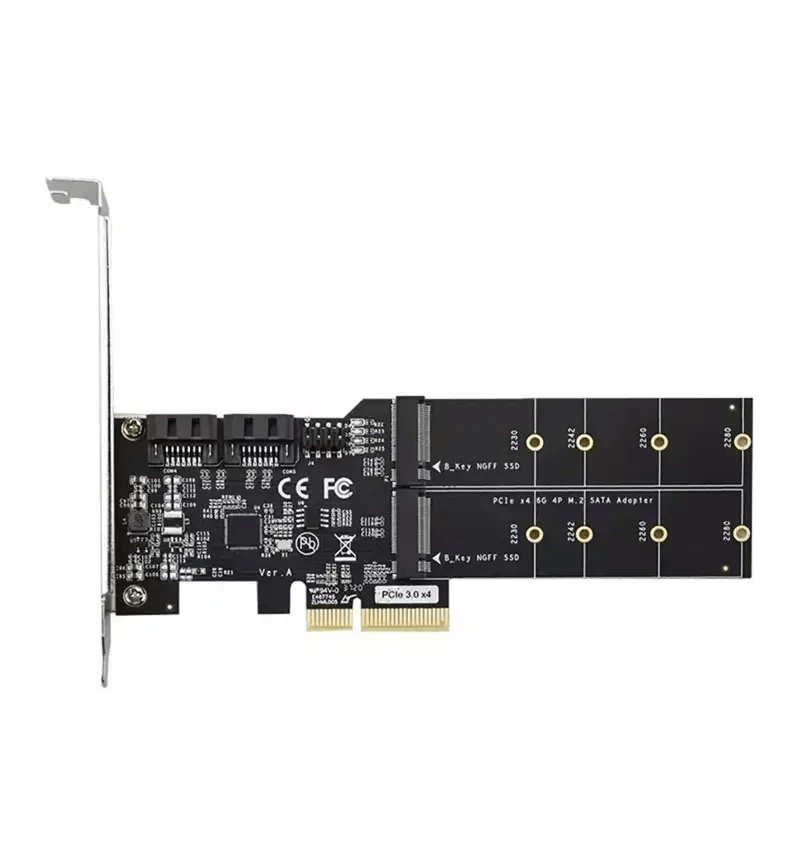

Microworld TXB120 PCIe 3.0 x4 to 2 SATA III & 2 M.2 B-Key Expansion Card
The Microworld TXB120 is a PCI Express 3.0 x4 expansion card designed to increase storage connectivity in compatible desktop computers. It provides two SATA III ports and two M.2 B-Key slots, allowing additional SATA storage devices to be connected through a single PCIe expansion slot.
Featuring an ASMedia-based controller, the TXB120 supports SATA III transfer speeds of up to 6Gbps per SATA connection. The two M.2 B-Key slots are designed for SATA-based M.2 NGFF solid-state drives, providing additional storage expansion options without requiring dedicated motherboard M.2 slots.
The PCIe 3.0 x4 interface is compatible with PCIe x4, x8 and x16 expansion slots, making the card suitable for compatible desktop systems requiring additional storage connectivity.
Important: The M.2 slots support SATA-based M.2 NGFF SSDs only. NVMe PCIe M.2 SSDs are not supported.
Specifications
- Brand: Microworld
- Model / SKU: TXB120
- Product Type: PCIe SATA & M.2 Storage Expansion Card
- Controller: ASMedia-Based
- Host Interface: PCI Express 3.0 x4
- Compatible PCIe Slots: PCIe x4, x8 & x16
- SATA Ports: 2 × SATA III
- SATA Transfer Speed: Up to 6Gbps
- M.2 Slots: 2 × M.2 B-Key
- M.2 Interface: SATA / NGFF
- Supported M.2 Storage: SATA-Based M.2 SSDs
- NVMe Support: No
- Total Storage Connections: 4
- Application: Desktop Storage Expansion
What's in the Box
- 1 × Microworld TXB120 PCIe 3.0 x4 to 2 SATA III & 2 M.2 B-Key Expansion Card
