RASPBERRY8GB

Raspberry Pi 5 8GB - RASPBERRY8GB

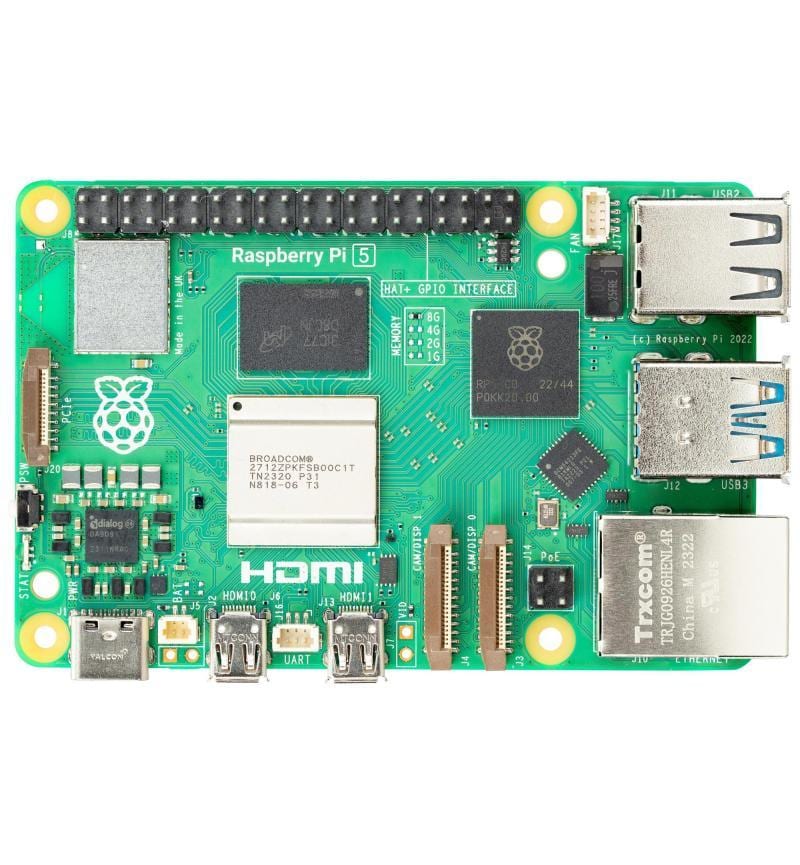

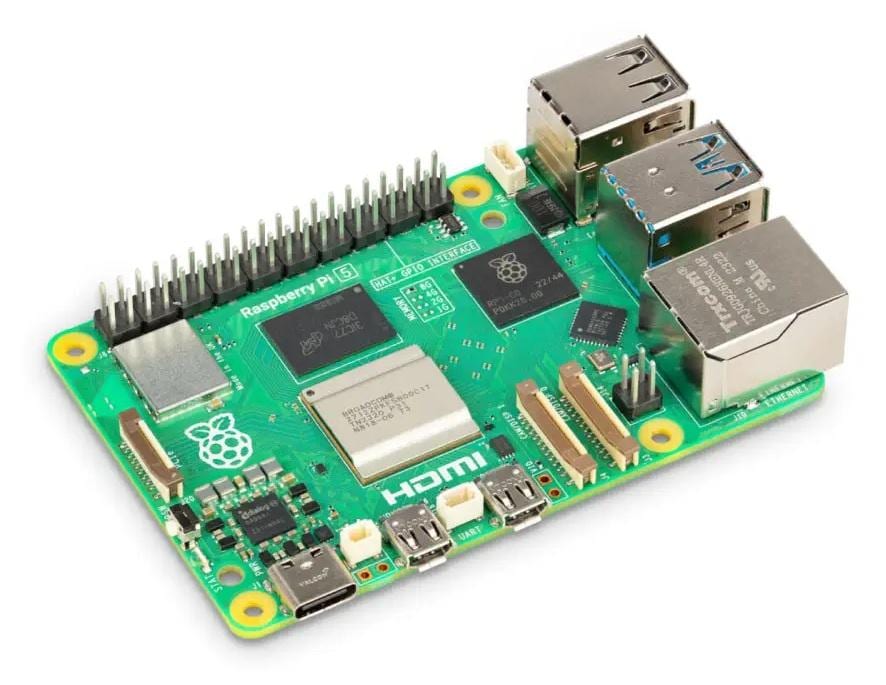

Raspberry Pi 5 8G

Specs

Processor: Broadcom BCM2712

Core Type: Cortex-A76 64- Bit (ARMv8)

No. Of Cores: Quad Core

CPU Clock: 2.4GHz

GPU: VideoCore VII

CPU Clock: 800MHz

Multimedia Graphic

4Kp60 HEVC (H.265) Hardware Decode

H.264 decode ? from CPU

H.264 encode ? from CPU

OpenGL ES 3.1, Vulkan 1.3

OS Storage

MicroSD Card Slot, with Support for High-Speed SDR104 Mode

NVMe SSD (M.2 HAT Via PCIe Socket)

NVMe or SATA SSD (Via USB3.0)

Ram

LPDDR4X- 4627 SDRAM (8GB)

Ethernet (RJ45)

Gigabit Ethernet

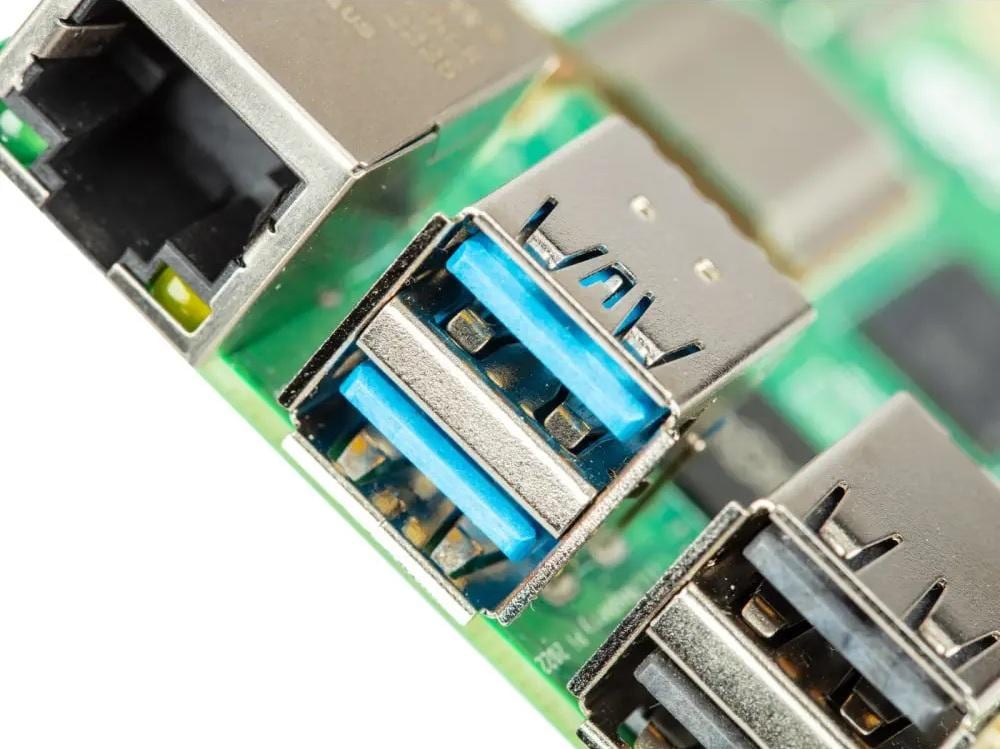

USB Port

2 × USB 3.0 Ports (Simultaneous 5Gbps)

2 × USB 2.0

HDMI

2 x Micro HDMI

Support True 2 x 4Kp60

WIFI: 802.11 b/g/n/ac (2.4GHz + 5GHz & Shielded)

Bluetooth: 5.0 + BLE (Shielded)

Antenna

PCB Antenna

40 Pin Headers

Dedicated Port

UART

RTC External Battery

Cooler Fan

Real Time Clock (RTC): Yes, Built In

Power Button: Yes

Camera Port (CSI)  Display Port (DSI)

2 x 4 Lane MIPI Camera or Display Transceivers

Support 2 x Camera or 2 x Display or 1 x Display

PCIe Interface: 1 x PCIe Gen2.0

Dimension: 85mm x 56mm

Power Input

Full Power: USB C PD 5V@5A PSU

Normal Power: USB C 5V (up to 3A)

5V via GPIO Header (up to 3A)

Power Over Ethernet, requires New PoE + HAT
