FEATURES
- 850W continuous power output with over 99% on a resolute +12V rail
- 80 PLUS® Gold certified: Up to 92% efficiency under typical load
- PCIe 5.0 Ready: Includes native 12VHPWR cable for RTX 40 Series GPUs
- Half-Bridge LLC + DC-DC PhaseWave Design with synchronous rectification
- Silent 120mm FDB fan with Zero RPM mode for low-noise operation
- Fully modular design for best airflow and cable customisation
- High-grade Japanese capacitors ensure reliability and low ripple
- CircuitShield protection suite: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- Compact design for easy integration in mid and full tower chassis
- Backed by Antecs trusted 7-year warranty
SPECIFICATIONS
Power Output
- Total Output: 850W Continuous
- Efficiency Rating: 80 PLUS® Gold (up to 92%)
- +12V Rail: >99% of total output (single rail)
- Active PFC: Yes
- Topology: Half-Bridge LLC + DC-DC
- PCIe 5.0 Support: Yes (native 12VHPWR included)
Cooling & Acoustics

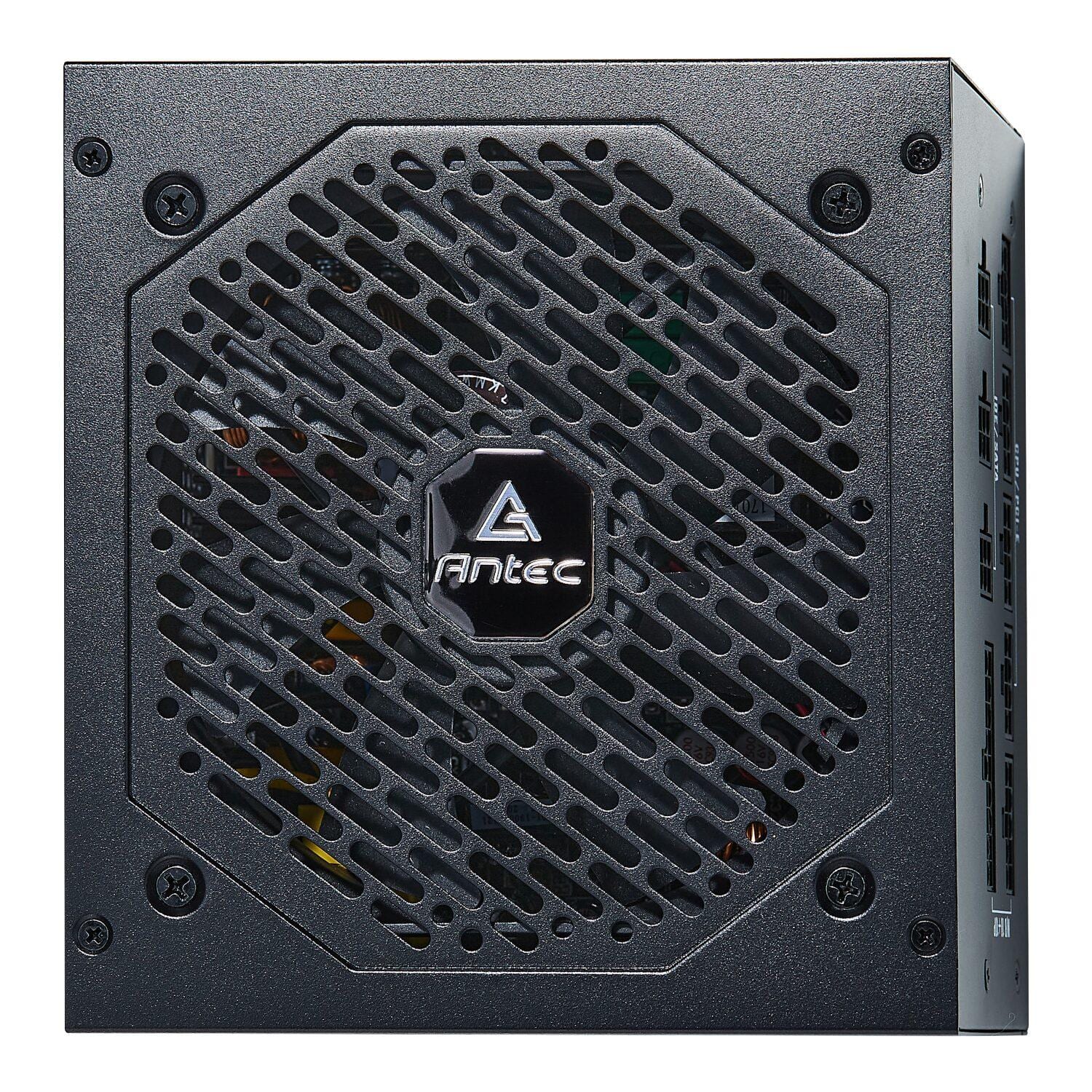

- Fan Type: 120mm Silent Fluid Dynamic Bearing
- Zero RPM Mode: Yes (fan stays off under low loads)
- Thermal Control: Smart fan curve based on internal sensors
Cabling & Connectors

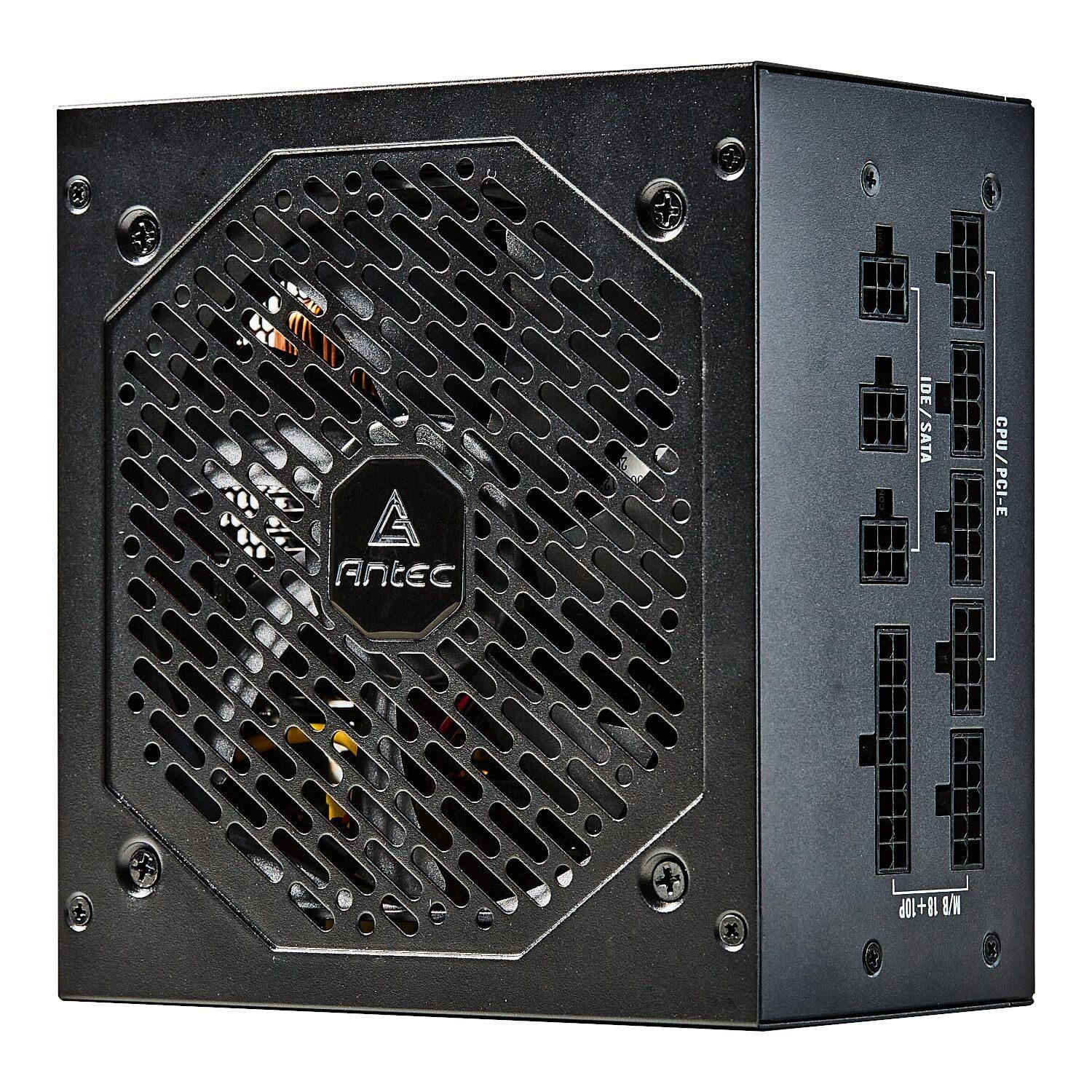

- Type: Fully Modular
- MB: 1 × 24(20+4) Pin
- CPU: 2 × 8(4+4) Pin EPS 12V
- GPU: 6 × 8(6+2) Pin PCIe, 1 × 16(12+4) Pin 12VHPWR
- Peripherals: 10 × SATA, 5 × Molex, 1 × FDD
- MBU: 28(18+10) pin future-ready socket
Electrical Specifications
- Input Voltage: 100240 VAC
- Input Current: 10A Max
- Input Frequency: 5060Hz
- Power Good Signal: 100500ms
- Operating Temperature: 0°C 40°C
Protection & Compliance
- CircuitShield: OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
- Certifications: cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / KC / UKCA / ICES
Physical Dimensions
- Size: 15cm (L) x 14cm (W) x 8.6cm (H)
- Net Weight: 1380g
- Gross Weight: 2710g

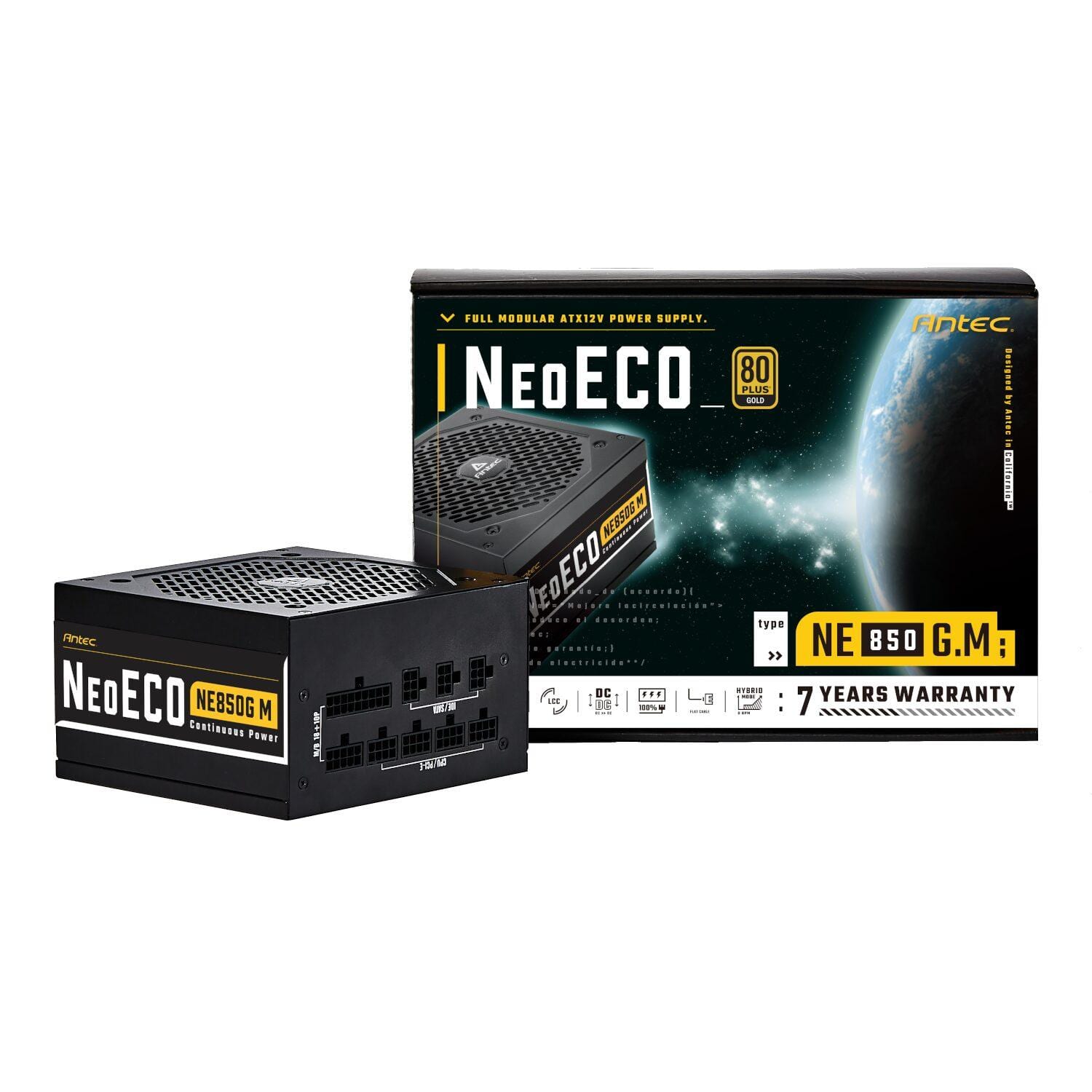

WHATS IN THE BOX

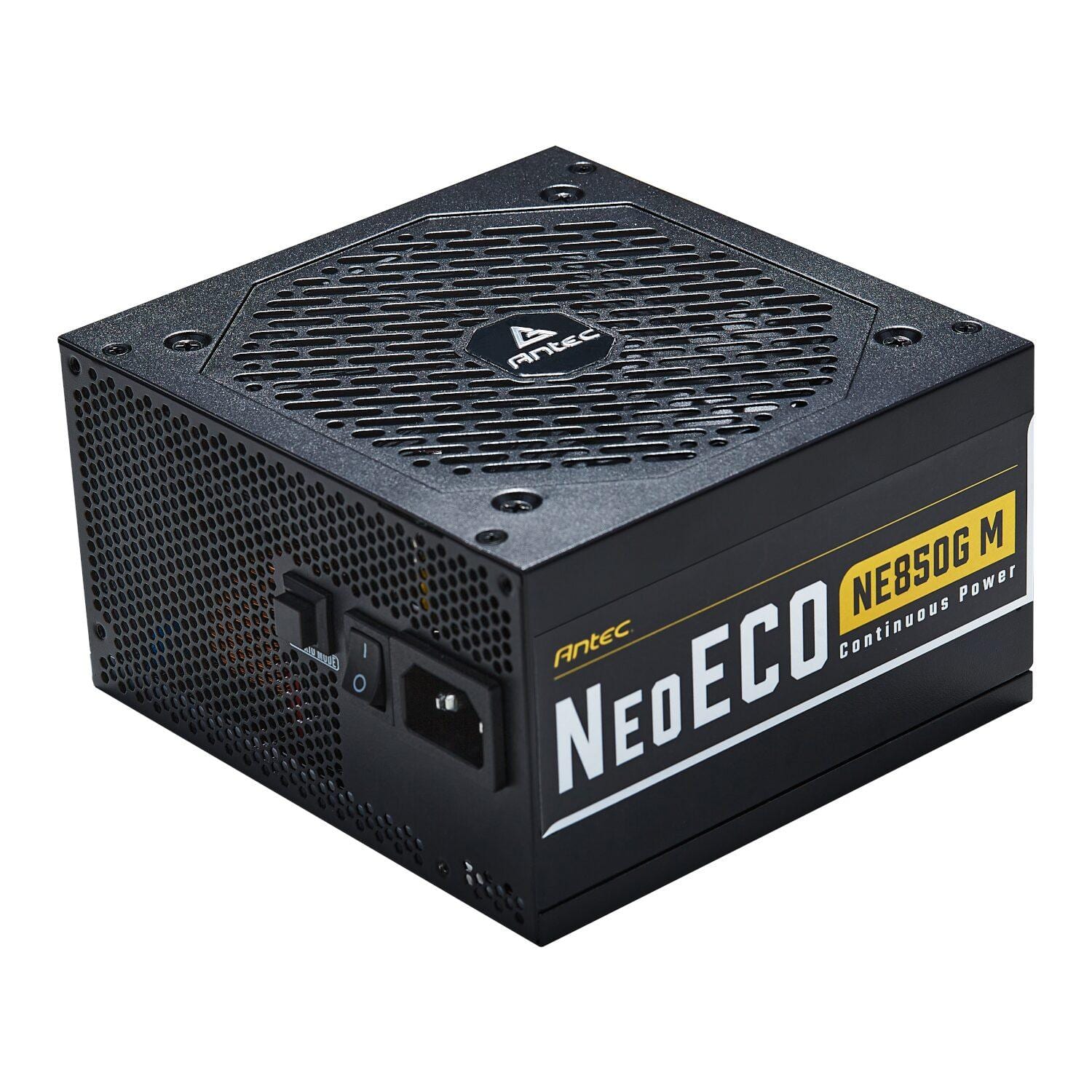

- Antec NeoECO Gold Modular 850W Power Supply Unit ×1

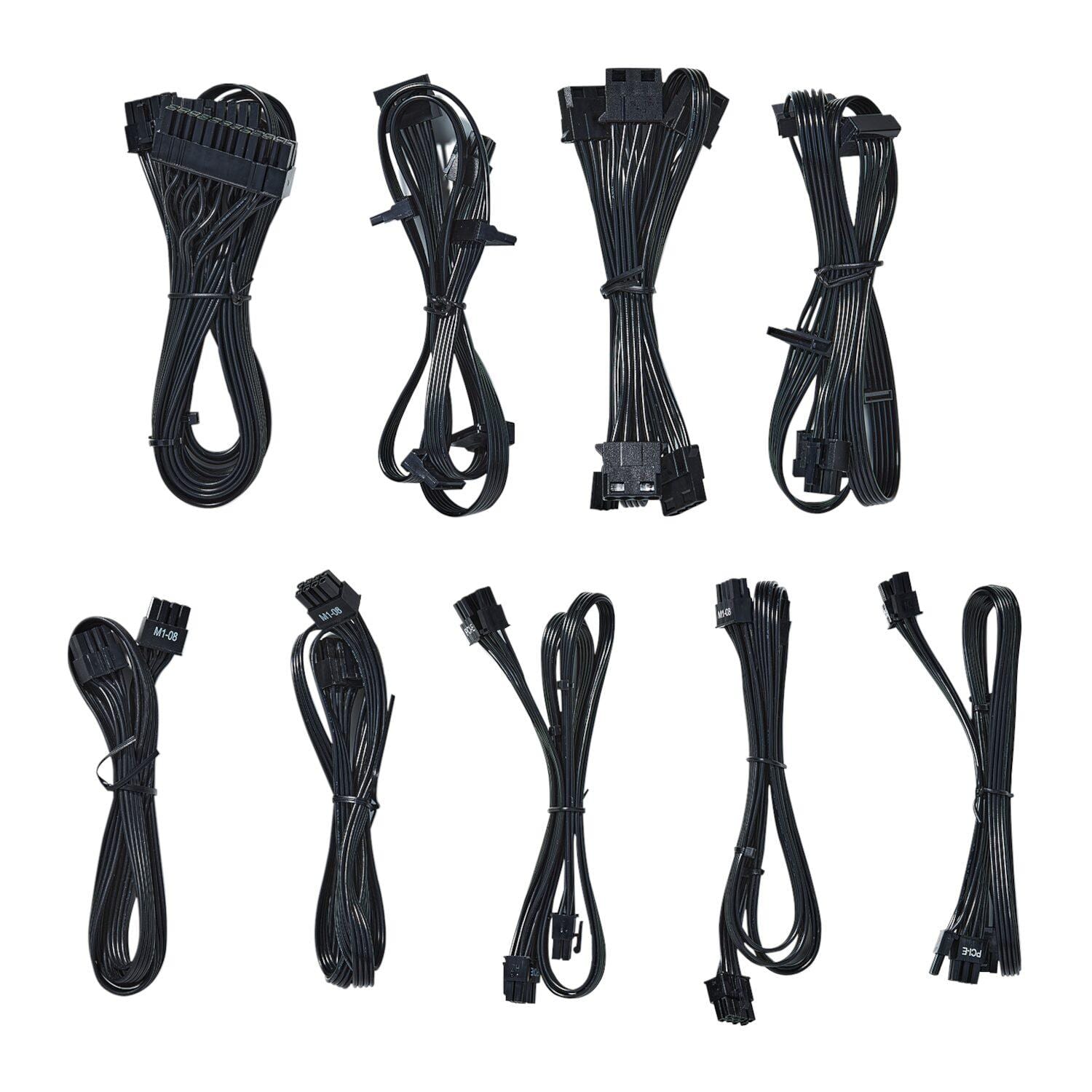

- Full modular cable kit ×1
- Power cable ×1
- Installation screws ×1
- Quick installation guide ×1
