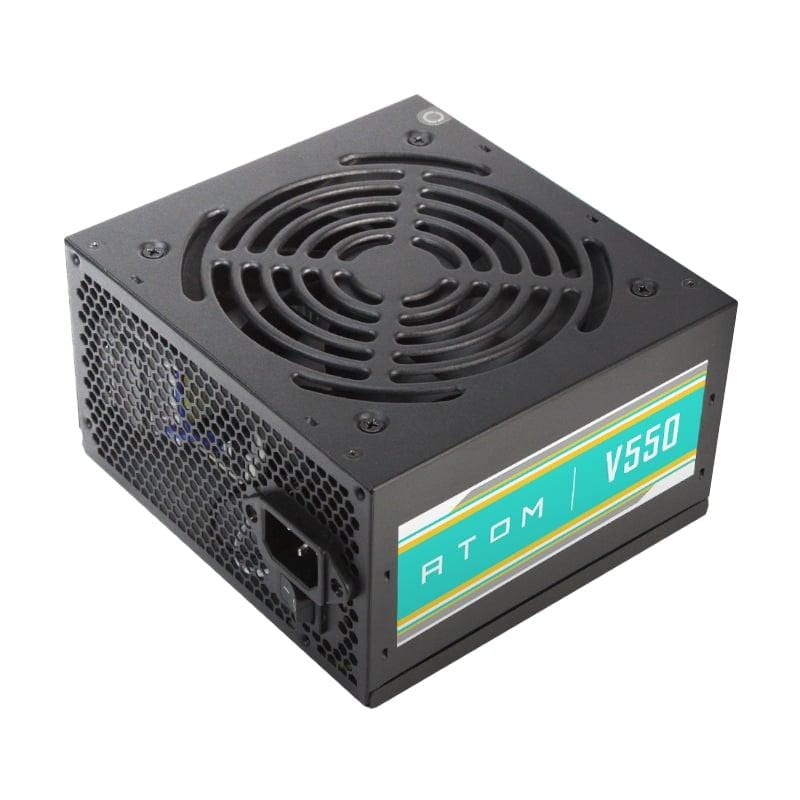

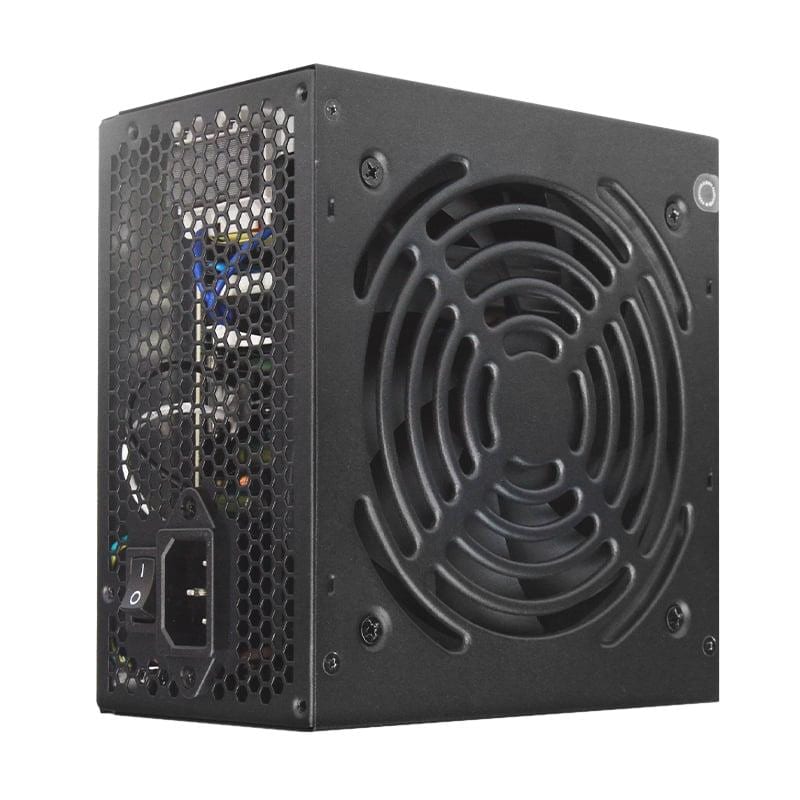

Antec Atom V550 Non-Modular Power Supply
FEATURES:
- 550W Output
- CircuitShield Industrial grade protections: OPP/OVP/UVP/SCP
- 120mm Silent Fan
- Thermal Manager advanced fan control for optimal heat and noise management.
- Non-modular Design
SPECIFICATIONS:
- Input: 230Vac, 5A, 47-63Hz
- Output: +3.3V/18A, +5V/16A, +12V/42A, -12V/0.3A, +5Vsb/2.5A
- Total Output: 550W
- Connectors:
- 24-Pin Main Connector x1
- 8(4+4) Pin EPS12V x1
- 8(6+2) Pin PCI-E x2
- SATA x5
- Molex x2
- FDD x1
- Cooling: 120mm Silent Fan
