750W BRONZE 80+ GEN5 PSU - OCPSBZ750
OCPC
The OCPC ENERGIA BZ750 (Model: OCPSBZ750)
Is A 750W ATX Power Supply Unit Designed For Entry-To-Mid-Range Gaming Systems
Featuring 80 Plus Bronze Efficiency And Flat Black Cabling
Key Specifications
Model Name: OCPC ENERGIA BZ750 (OCPSBZ750)
Wattage: 750W Maximum DC Output
Efficiency Rating: 80 Plus Bronze
Form Factor: ATX
Modular: Non-Modular
Input Voltage: 230V (Standard)

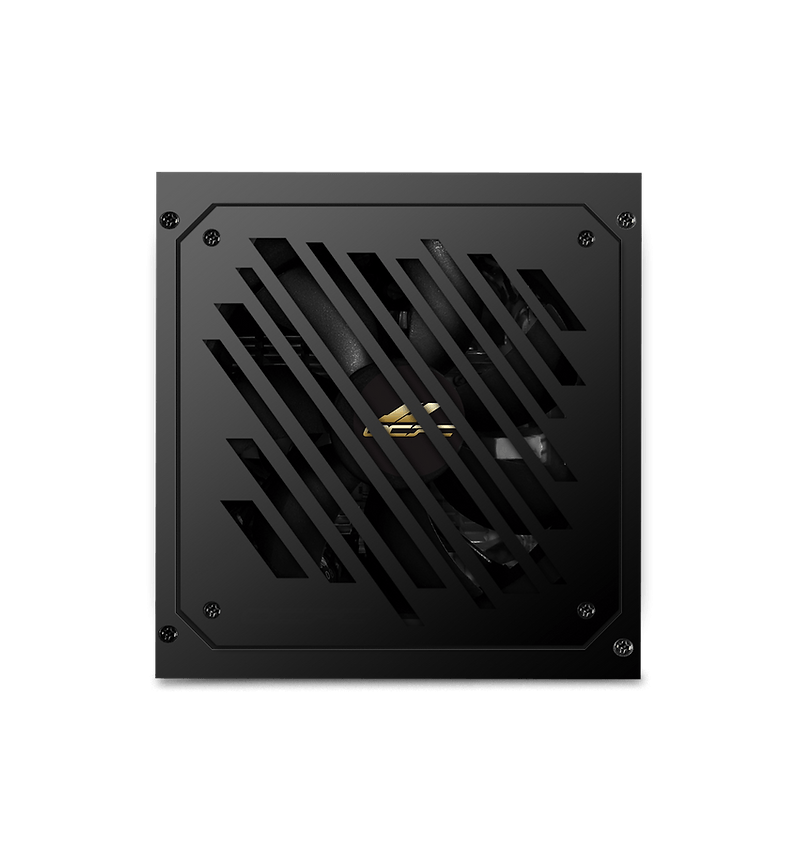

Cooling: 120mm Hydraulic Bearing Fan
Safety Protections: OVP, OCP, OTP, UVP, OPP, SCP
MTBF: 100,000 Hours
Dimensions: 150(W) x 86(H) x 160(D)mm
Connector Configuration
Main Board (24-Pin): 1 (20+4 Pin)
CPU (EPS): 2x 4+4 Pin
PCIe: 2x Connectors (6+2 Pin)
SATA: 4 Connectors
PATA (Molex): 2 Connectors
Features
Active PFC (APFC): Supported
Cable Type: Flat Black Cables
Operating Temp: 0 to 50°C
Protections: OVP (Over Voltage Protection), OCP (Over Current Protection)
OTP (Over Temperature Protection), UVP (Under Voltage Protection)
OPP (Overpower Protection), SCP (Short Circuit Protection), PWR_OK
Warranty: 5 Years
