650W BRONZE 80+ PSU - OCPSBZ65
OCPC

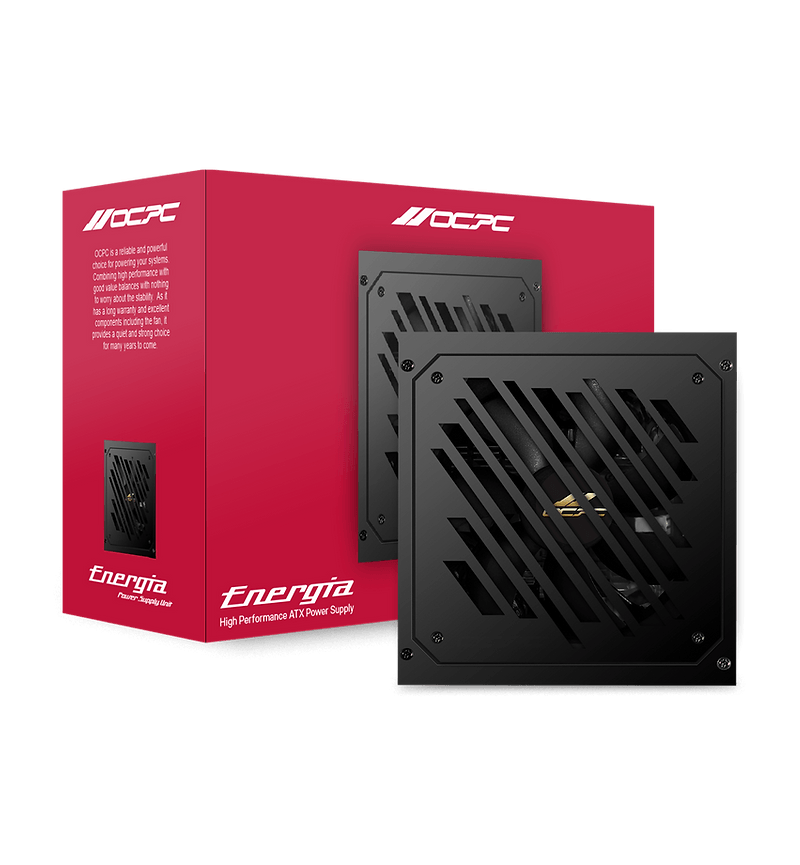

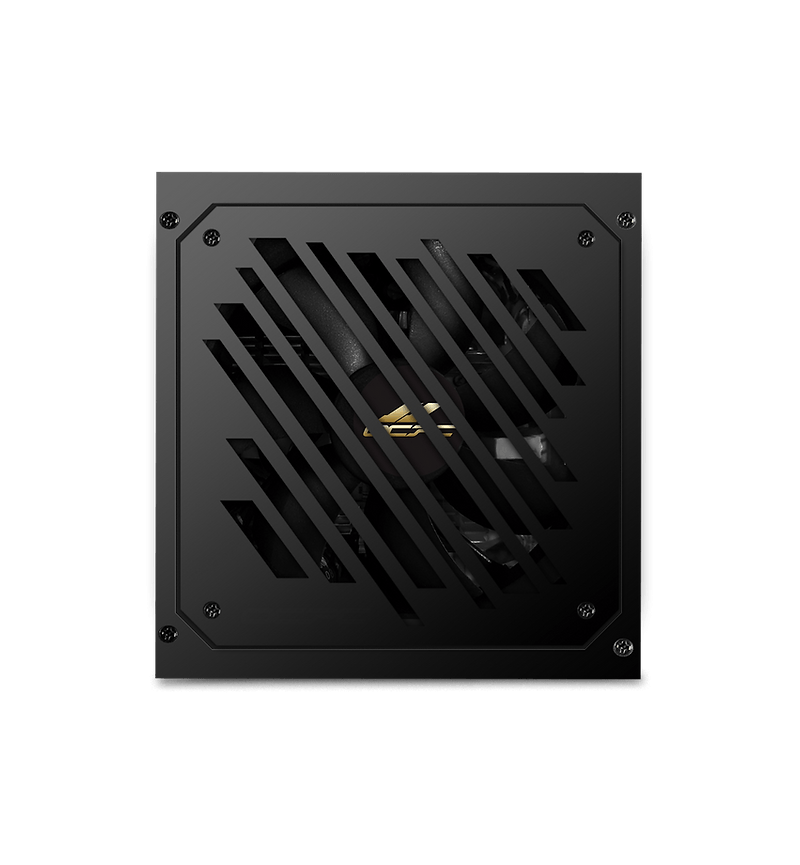

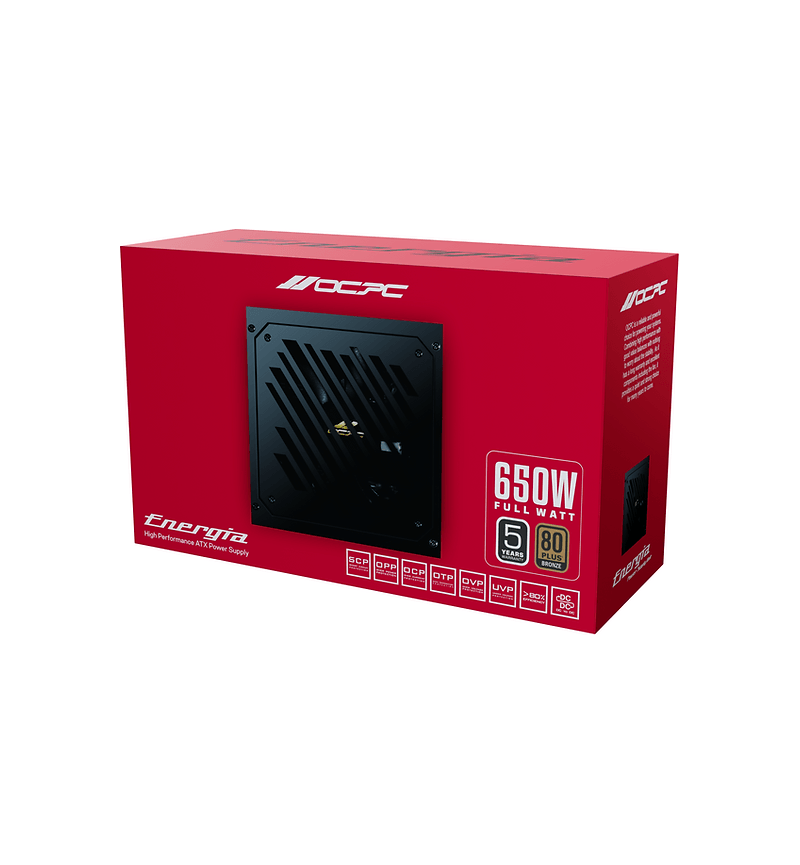

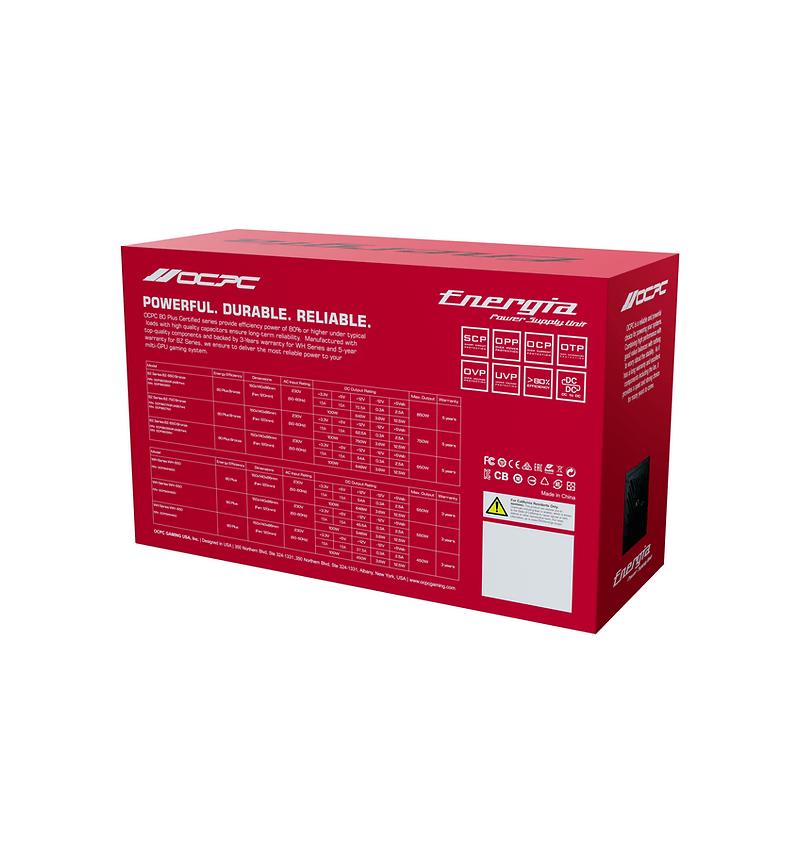

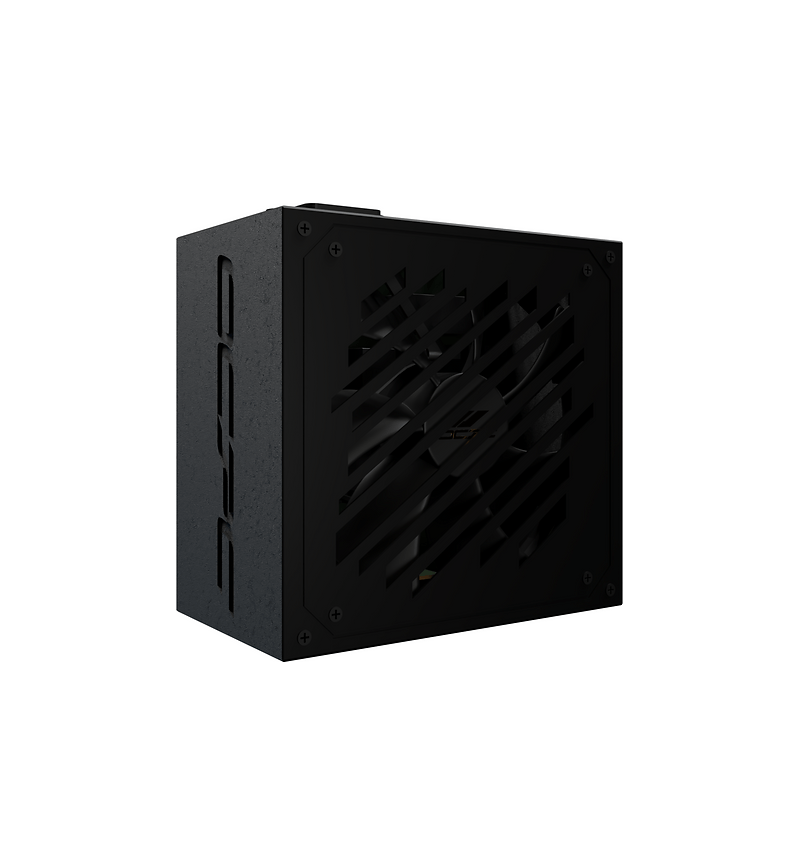

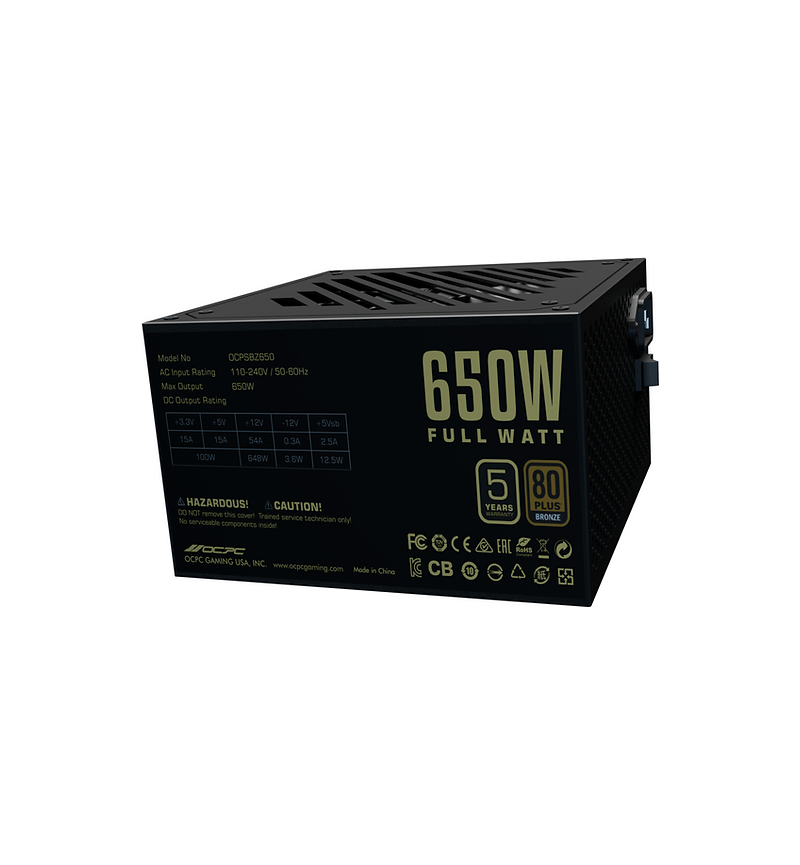

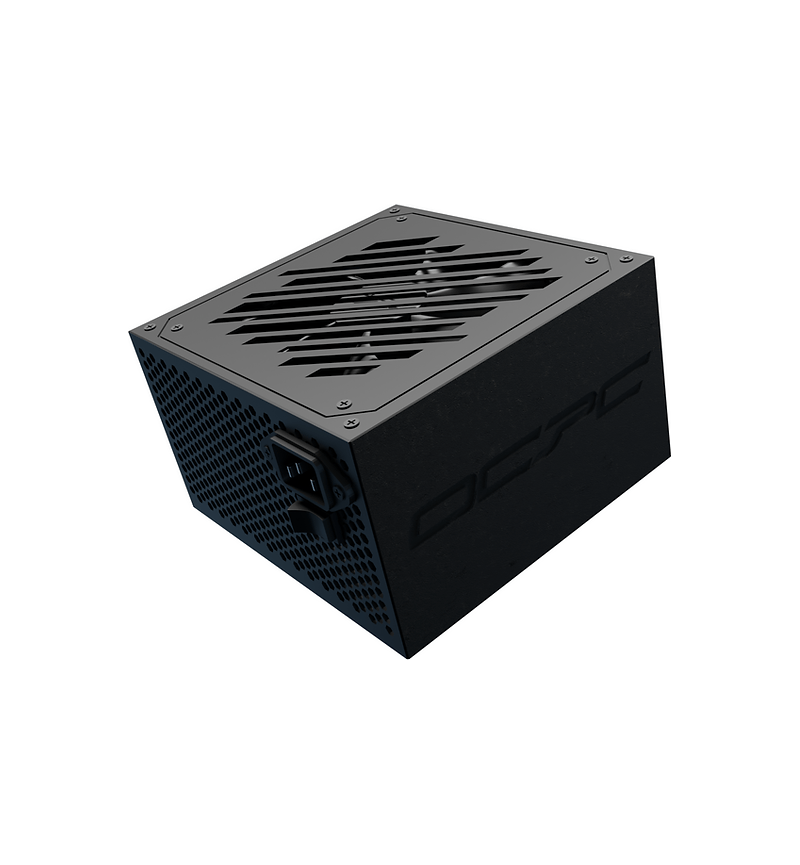

The OCPC ENERGIA BZ650 (OCPSBZ650)
Is A 650W Non-Modular ATX Power Supply
Designed For Entry-To-Mid-Range Gaming And Office PCs
It is 80 Plus Bronze Certified And Features Flat Black Cables
Key Specifications
Model: OCPC ENERGIA BZ650 (OCPSBZ650)
Capacity: 650 Watts
Efficiency: 80 Plus Bronze
Form Factor: ATX
Modular: No (Non-Modular)
Input Voltage: 110-240V (Active PFC)
Fan: 120mm Hydraulic Bearing Fan
Dimensions: 150(W) x 86(H) x 140(D)mm
Connectors & Cables (Flat Black)
Main (20+4 Pin): 1
CPU (EPS 4+4 Pin): 2
PCIe (6+2 Pin): 2
SATA: 4 To 6
PATA/Molex: 2 To 4
Protections & Warranty
Protections: OCP (Over Current), OVP (Over Voltage), OTP (Over Temperature)
UVP (Under Voltage), OPP (Overpower), SCP (Short Circuit)
MTBF: 100,000 hours
Warranty: 5 Years
