FEATURES:
- Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
- 24 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware
- Non-blocking switching architecture enables full wire-speed packets forwarding and filtering
- Store-and-Forward switching method
- Supports 16K MAC address auto-learning and auto-ageing
SPECIFICATIONS:
- Power Supply: Built-in power supply
- Voltage Range: Ac100~ 240V
- Consumption: <15W
- Speed: 1-24 Port: 10/100/1000Mbps
- Transmission Distance: 100Meter (328ft)
- Ethernet Standard: IEEE 802.3/802.3u / 802.3ab
- Switching capacity: 48G
- MACAddress: 8K MAC address table
- VLAN (1-22Ports):
- Port Isolation: Downlink designated ports are isolated from each other, only transmit data with the uplink port.
- Default:
- Standard Switch: All ports communicate freely
- Extend (1-22Ports):
- Link Extension: The specified port speed drops to 10Mbps, max transmission distance is 250 meters.
- LINK/ACT:
- On: Green The port is connecting
- Blinks: / The port is receiving or transmitting data
- Off: / The port is not linked successfully with the device
- Transfer Rate:
- 14,880pps for 10Mbps
- 148,800pps for 100Mbps
- 148,8000pps for 100Mbps
- Environment:
- Operating Temperature: 0? ~ 40?
- Storage Temperature: -40? ~70?
- Operating Humidity: 10%~85% non-condensing
- Storage humidity: 5%~85% non-condensing
- Product Dimensions: 27 x 18 x 4.4 cm

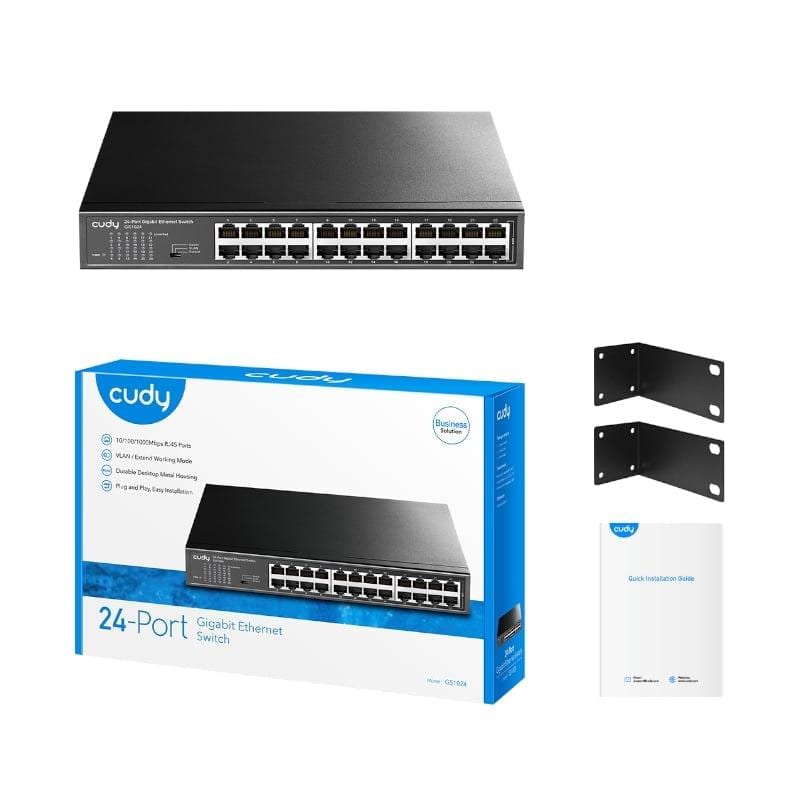

WHATS IN THE BOX:
- Cudy 24-Port Gigabit Ethernet Switch Black x1
- Power Cable x1
- Mounting Brackets x2
- Quick Start Guide x1
