FEATURES:
- IEEE 802.3af / 802.3at standard compliant
- 200-watt total PoE power budget, up to 30-watt per port
- 16xGbE PoE+Port+2 x SFP Port
- CCTV Mode supports remote power & data feeding up to 250M
- VLAN mode supports 16 POE+ ports isolated from each other
- LED indicators for network diagnostics
- 19-inch metal case, internal power design
SPECIFICATIONS:
- Connector Type: 16 x 10/100/1000M PoE Ports + 2 x Gigabit SFP Uplink Ports
- Network Media (Cable): IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
- PoE Parameters:
- PoE Standard: IEEE802.3af /IEEE802.3at
- Max each port: 15.4W ( IEEE 802.3af )
- Max each port:30W ( IEEE 802.3at )
- PoE compatibility: IEEE 802.3af/at adaptive
- PoE port output: DC48-55V
- Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
- Network Media:
- 10BASE-T: Cat 5E UTP(=250 meter)
- 100BASE-TX: Cat5 or more UTP (=100 meter)
- 1000BASE-TX: Cat5 or more UTP (=100 meter)
- Optical:
- Multi-Mode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km
- Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km
- Performance Specification:
- Bandwidth: 52Gbps
- MAC: 8K
- Packet Neck Scarfer Memory: 4M
- Packet Forwarding Rate: 38.7Mpps
- Power Supply:
- Power input: AC100-240V 50/60Hz, Power Budget: 200W
- LED Indicator:
- PWR: Power supply indicator (Red)
- 1-26: RJ-45 LINK indicator (Green)
- 1-26: RJ-45 ACT indicator (Green)
WHATS IN THE BOX:

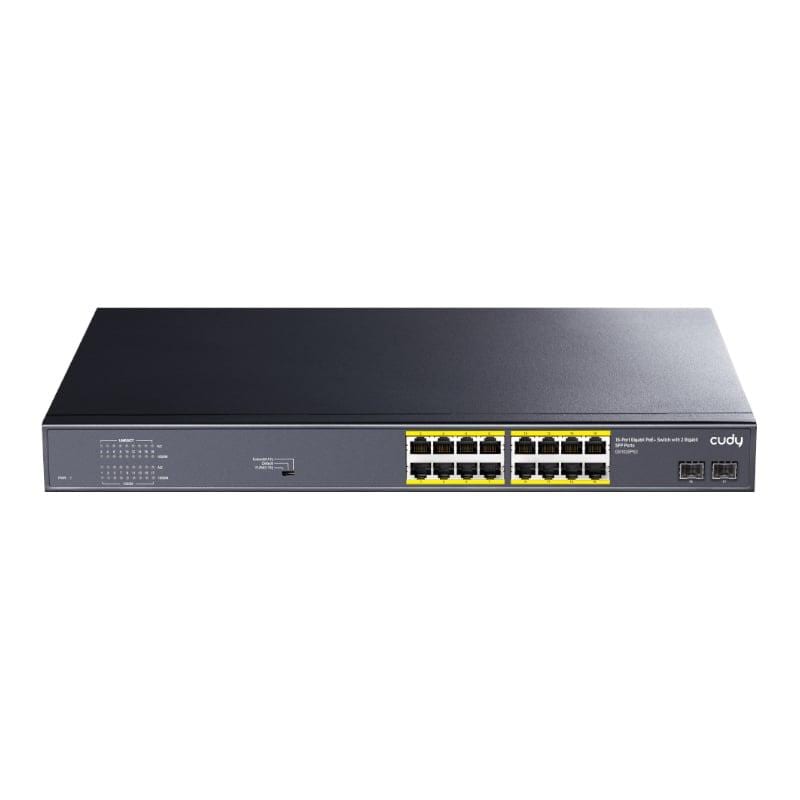

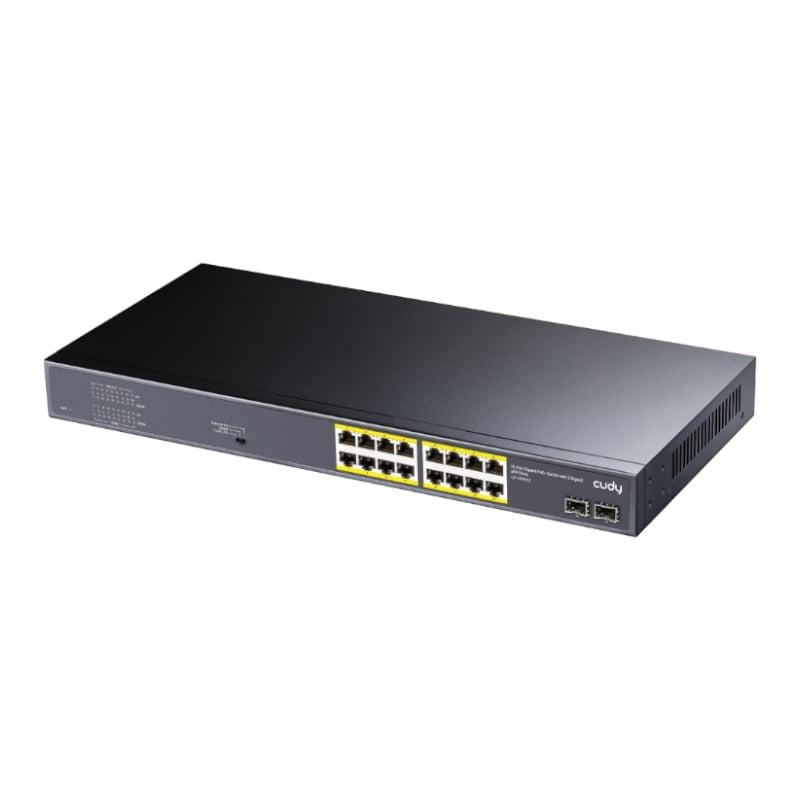

- Cudy GS1020PS2 16-Port Gigabit PoE+ Switch Grey x1
- Power Adapter x1
