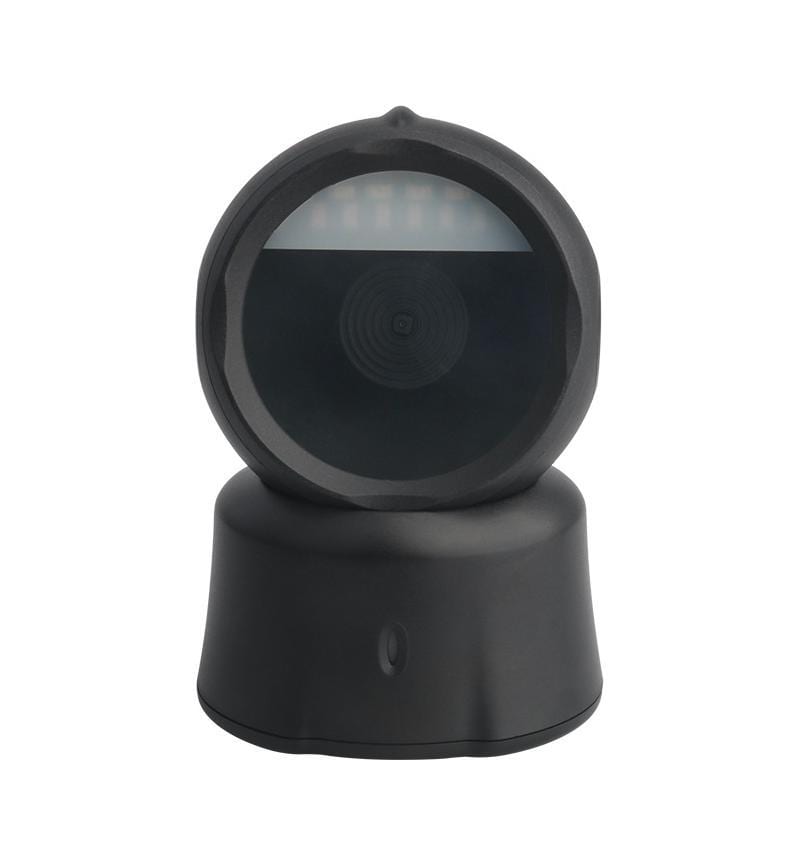

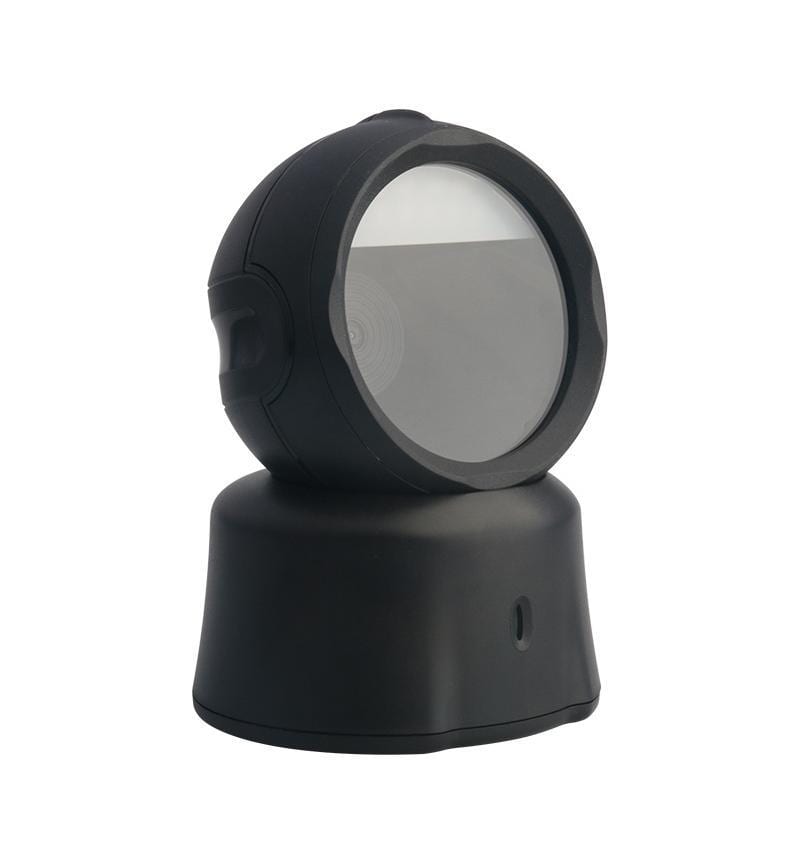

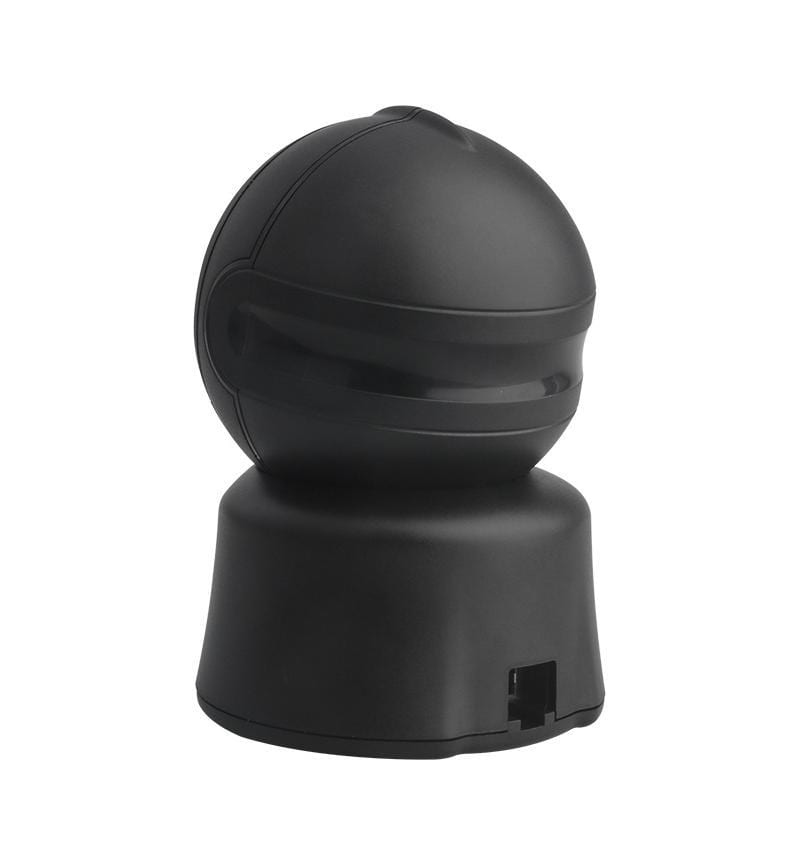

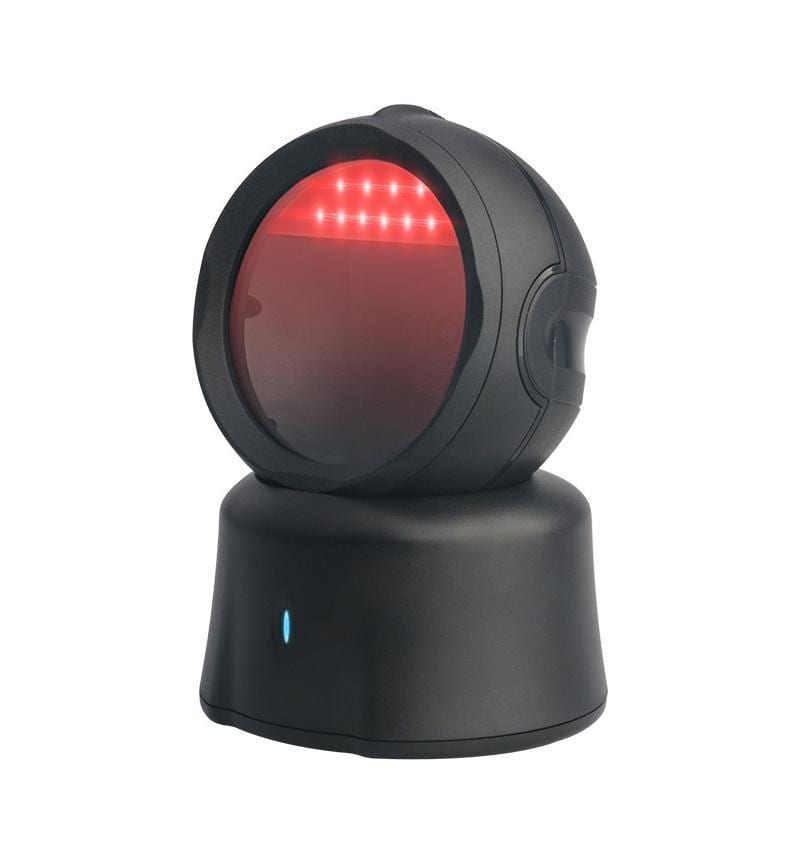

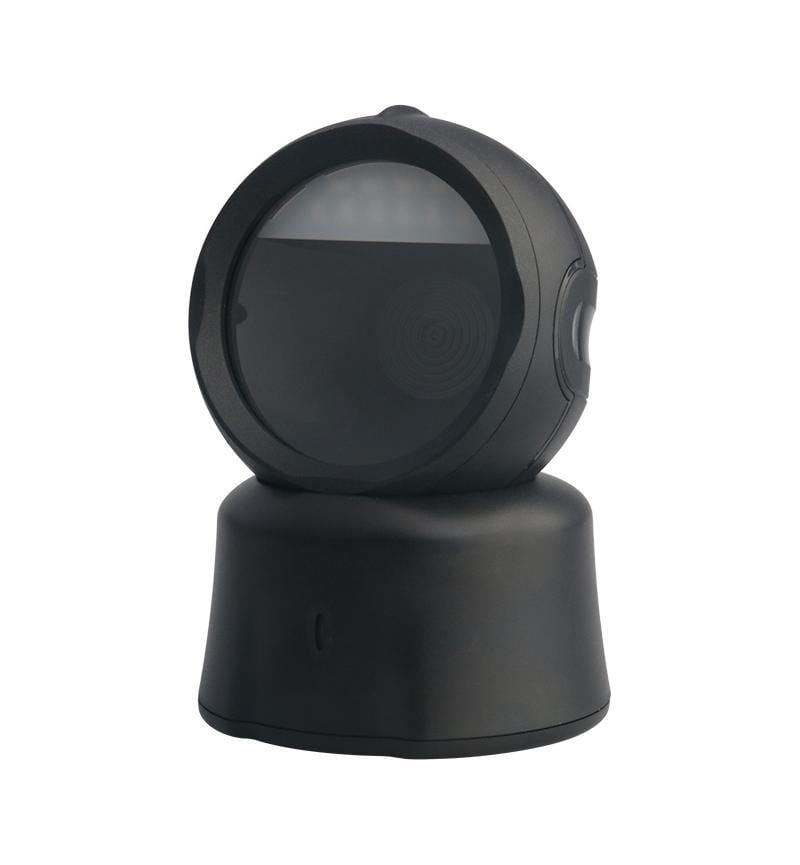

Mlink DP8210 USB & RS232 Desktop 2D Omnidirectional Barcode Scanner
Improve checkout speed and barcode processing with the Mlink DP8210 Desktop 2D Omnidirectional Barcode Scanner. Designed for busy retail and commercial environments, this hands-free scanning platform uses advanced CMOS image recognition technology to read both 1D and 2D barcodes from product labels, printed documents, coupons and digital screens.
The scanner supports automatic induction, continuous and auto-sense scanning modes for fast, convenient operation. With USB and RS232 connectivity, broad barcode compatibility and motion tolerance of up to 100cm per second, the DP8210 is suitable for supermarkets, pharmacies, department stores, libraries, convenience stores and inventory-management applications.
Specifications
- Brand: Mlink
- Model: DP8210
- Product Type: Desktop 2D Omnidirectional Barcode Scanner
- Image Sensor: CMOS, 640 × 480 Pixels
- Interfaces: USB HID-KBW, USB-COM and RS232
- Scan Modes: Automatic Induction, Continuous and Auto Sense
- Light Source: 625 ± 10nm Red Aiming LED and 5600K Illumination LEDs
- Motion Tolerance: Up to 100cm/s
- Minimum Resolution: 5mil / 0.127mm at PCS 90%, Code 39
- Depth of Field: 0380mm
- Supported 1D Codes: UPC, EAN, Code 128, Code 39 and Other Mainstream 1D Barcodes
- Supported 2D Codes: QR Code, Data Matrix, PDF417 and Aztec
- Voltage: DC 5V
- Operating Current: Up to 280mA
- Cable Length: 1.8m
- Dimensions: 86.7 × 96.7 × 143.6mm
- Weight: Approximately 270g Without Cable
- Operating Temperature: -10°C to 50°C
- Additional Support: Multiple Languages, Character Insertion and Replacement, High-Speed HID-POS Protocol
What's in the Box
- 1 × Mlink DP8210 Desktop Barcode Scanner
- 1 × 1.8m Connection Cable
