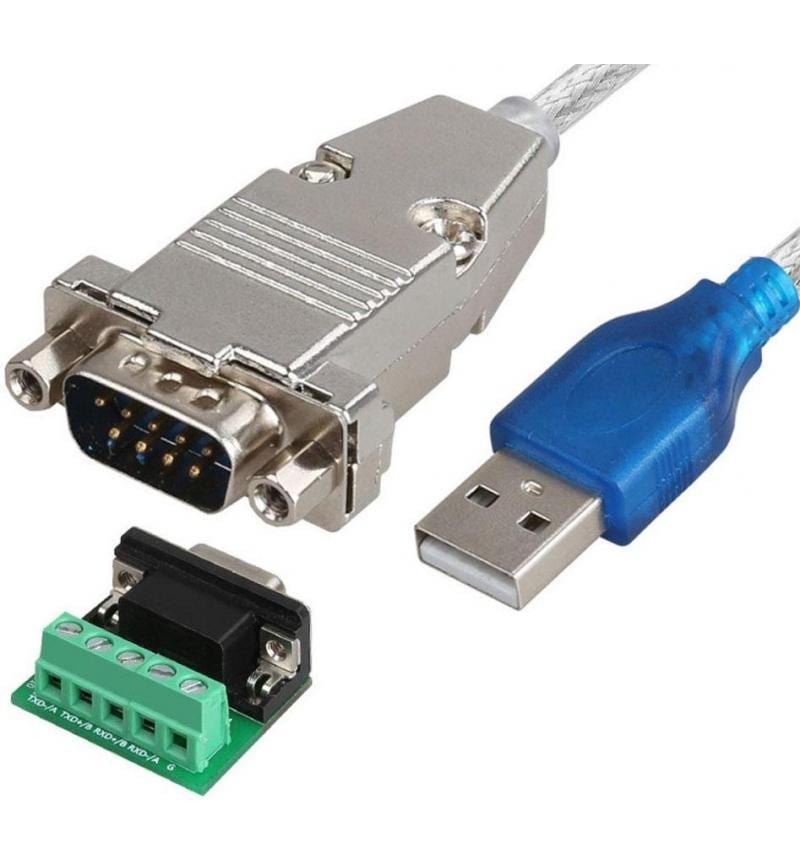

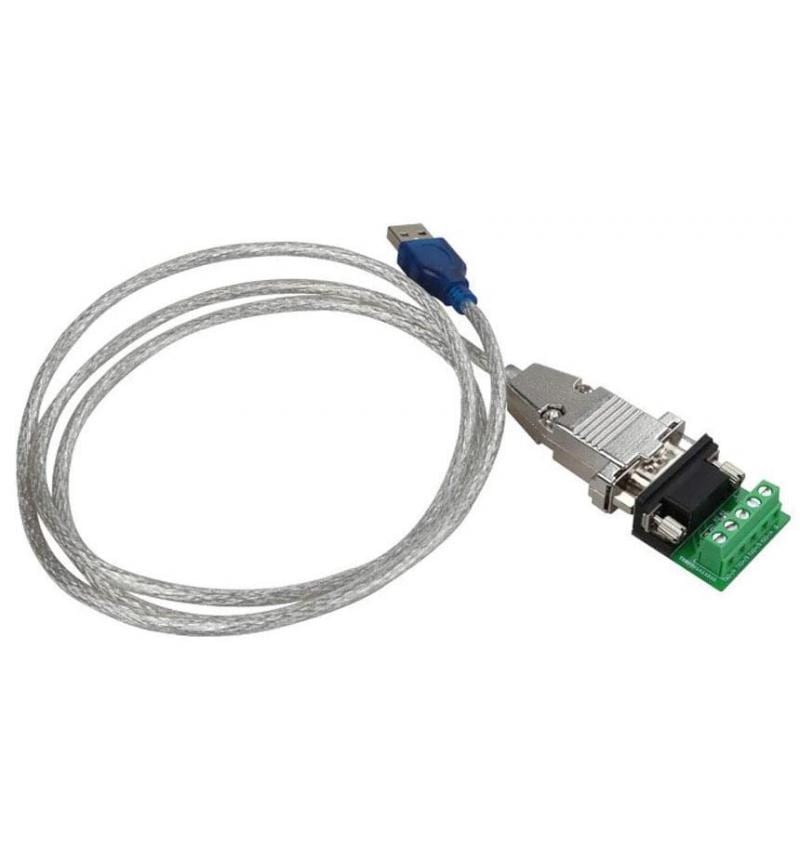

USB TO RS485 - TXB025
Product Specification
Model Number: TXB025
Chipset: CH340+ZT485
Port Number: USB x 1,1 x Male Com Port with Adapter Board
Standard: Full speed USB Device Interface, Compatible with USB V2.0
LED Indicator: NA
Baud Rate: 110bps -115200bps
Dimension 51 x 32 x 15 x mm, Cable Length:1m
Power Input: DC5V
Power Consumption: Max0.1W
Environment
Operating Temperature: -10 -55
Relative Humidity: 10%-90% (non-condensing)
Storage Temperature: -40 - 85
Relative Humidity: 5%-90% (non-condensing)
