Ubiquiti UCG-MAX UniFi Ultra Max - Multi-WAN Cloud Gateway Max
Overview:
Gateway Max
UXG-Max

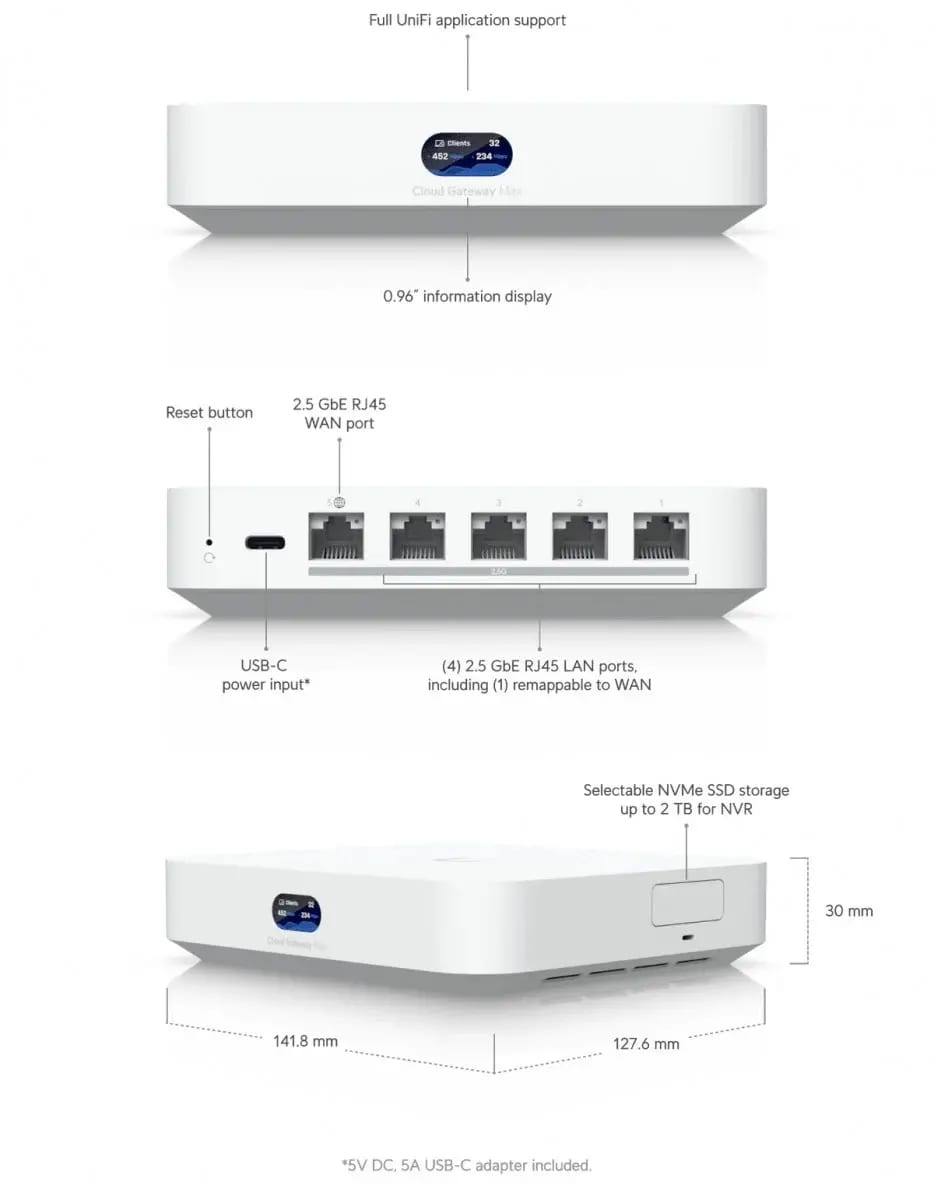

Compact, multi-WAN UniFi gateway with full 2.5 GbE support for high-performance networking at small-to-medium sites.
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
- Up to 1.5 Gbps routing with IDS/IPS
- (1) 2.5 GbE WAN port
- (4) 2.5 GbE LAN ports, including (1) remappable to WAN
- USB-C powered (adapter included)
- Managed with UniFi Network 8.1.113 and later
Specifications:
| Specifications | |
| Product Code | UCG-MAX-EU |
| Mechanical | |
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Weight | 520 g (1.1 lb) |
| Enclosure material | Polycarbonate |
| Resistance | IK04 |
| Hardware | |
| Processor | Quad-core ARM Cortex -A53 at 1.5 GHz |
| Memory information | 2 GB DDR4 |
| Management interface | Ethernet |
| Bluetooth | |
| Networking interface | LAN: |
| (4) 2.5 GbE RJ45 ports | |
| WAN: | |
| (1) 2.5 GbE RJ45 port | |
| IDS/IPS throughput | 1.5 Gbps |
| Power method | USB type C (5V/3A) |
| Supported voltage range | 100-240V |
| Max. power consumption | 9.6W |
| LED | Ethernet |
| White: link/activity | |
| Button | (1) Factory reset |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | WiFi QoS with UniFi APs |
| Application, domain, and country-based QoS | |
| Application and device type identification | |
| Internet quality and outage reporting | |
| Next-generation security | Application-aware firewall rules |
| Signature-based IPS/IDS threat detection | |
| Content, country, domain, and ad filtering | |
| VLAN/subnet-based traffic segmentation | |
| Full stateful firewall | |
| Advanced networking | License-free SD-WAN |
| WireGuard, L2TP and OpenVPN server | |
| OpenVPN client | |
| OpenVPN and IPsec site-to-site VPN | |
| One-click Teleport* and Identity Enterprise VPN | |
| Policy-based WAN and VPN routing | |
| DHCP relay | |
| Customizable DHCP server | |
| IPv6 ISP support | |
| *When paired with a CloudKey or Official UniFi Hosting. | |
| **When paired with a CloudKey. | |
| Application Requirements | |
| UniFi Network | Version 8.1.113 and later |
