ARKTEK B760 1700 DDR5 MB - AK-B760M EG
Intel B760
Model: AK-B760M EG
Socket: LGA1700
Chipset: Intel B760
Memory Support: Dual Channel DDR5
Overview
CPU Support: Support Intel Gen 12 and Gen 13 Processor for LGA 1700 Socket
Chipset: Intel B760 Chipset
On-Board Graphics: Integrated Graphics Processor-Intel HD Graphics Support
Memory: Dual Channel DDR5 DIMM 6800MHz, Max up to 128GB (Single Channel Max up to 64GB)
DIMM: 2 x Memory Slots

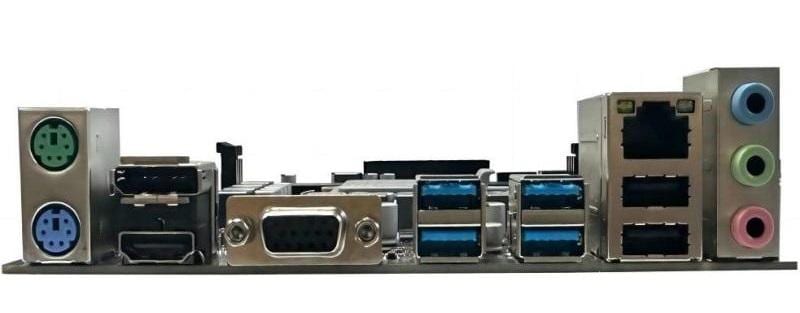

Graphics Ports: VGA, HDMI, DP
LAN: 1 x Realtek 8111H/8106E 100/1000LAN Optional
Audio: Built-In 6-Channel HD Audio Chip
SATA: 3 X SATA3.0 2 X M.2 (1 x M.2_SATA)
Internal I/O: 2 x USB Connector, can Support 2 x USB 2.0 & 2 x USB 3.0
Expansion Slots: 1 x PCI Express x16 Slot 1 x PCI Express x1 Slot
Form Factor: Micro-ATX (19 x 24 cm)
OS Support: Support Windows 7 / 8 / 8.1 / 10(x64)
Mounting: 6 Mounting Holes
Accessories: 1 x SATA Cable, 1 x I/O Backboard, 1 x User Manual, 1 x Driver CD
