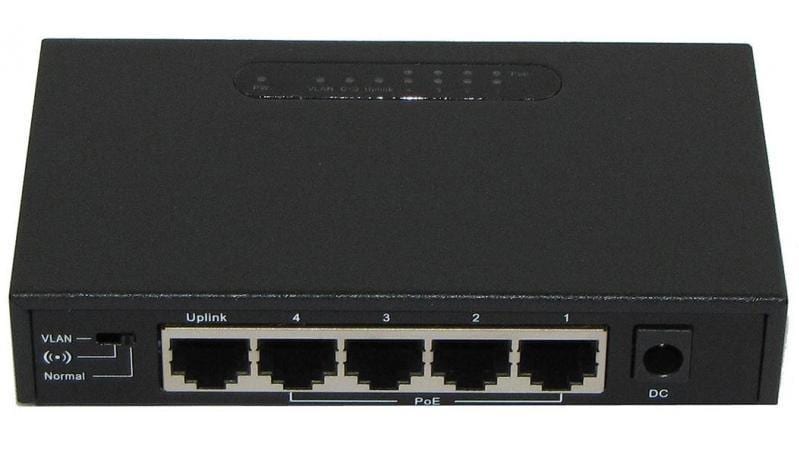

Desktop Switch Reliable 4-Port 10/100Mbps 802.3at/af PoE + 1-Port 10/100Mbps LAN TXE104
Enhance your network with the Desktop Switch TXE104, featuring 4-Port 10/100Mbps 802.3at/af PoE and 1-Port 10/100Mbps LAN. This compact and reliable switch supports Power over Ethernet (PoE), delivering up to 30W per port, ideal for powering IP cameras, VoIP phones, and other PoE devices. With plug-and-play installation, robust data transfer, and a sturdy design, the TXE104 ensures seamless connectivity and efficient network management for small to medium-sized businesses.
SPECIFICATIONS:
Network Connector: 5-port RJ45 for 10/100BASE-TX, auto MDI/MDIX
PoE Inject Port: 4-port with 802.3af/at PoE injector function (Port 1 to Port 4)
LED Display: System Power (Green)
Per PoE port: PoE (Red/Blue, Port 1 to Port 4)
LNK/ACT (Green, Port 1 to Port 5)
DIP Switch: Standard mode for 100M
Extend mode for 250m (Based on the cable category)
Switch Architecture: Store and Forward switch architecture
MAC Address Table: 1K MAC address table with auto learning function
EST Protection: 4KV
Switch Fabric: 1Gbps
Switch Throughput: 0.74Mpps @64bytes
Maximum Packet Size: 1536bytes
Flow Control: Back pressure for half duplex. IEEE 802.3x pause frame for full duplex
Power Requirements: 52V DC, 1.25A or 52V0.92A
Power Consumption: Max. 65watts,
Dimensions: (W x D x H): 124 x 72 x 24 mm
Power over Ethernet:
PoE Standard: IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type: End-span + mid-span
Power Pin Assignment 1/2(+), 3/6(-),
PoE Power Output: Per Port max. 15.4 watts (IEEE 802.3af)
Per Port. max. 30 watts (IEEE 802.3at)
PoE Power Budget: 60 watts
Number of PDs, 7 watts: 4
Number of PDs, 15.4 watts: 4
Number of PDs, 30 watts: 2
Standard Conformance:
EMI Safety: FCC, CE
Standard Compliance: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Environment: Operating Environment 0 - 50 degrees
Hardware Specifications:
Storage Environment -10 - 70 degrees C
Operating Humidity: 5 - 95%, relative humidity, non-condensing
Storage Humidity: 5 - 95%, relative humidity, non-condensing
