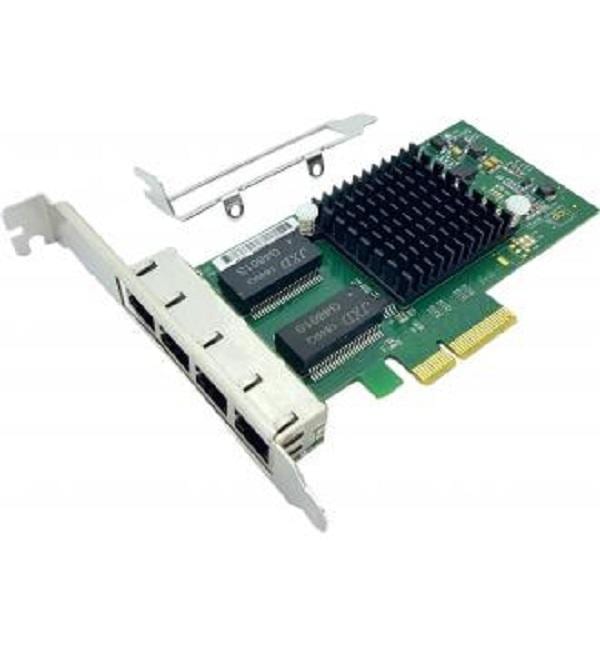

PCIE 4 RJ45 PORT LAN CARD

TXA034
Intel I350 Ethernet Controller: is a single, compact, low power component that supports quad port and dual port gigabit Ethernet designs.

The device offers four fully-integrated gigabit Ethernet media access control (MAC), physical layer (PHY) ports and
four SGMII/SerDes ports that can be connected to an external PHY. The I350 supports PCI Express* (PCIe v2.1 (2.5GT/s and 5GT/s)).

The device enables two-port or four port 1000BASE-T implementations using integrated PHY’s.
It can be used for server system configurations such as rack mounted or pedestal servers, in an add-on NIC
or LAN on Motherboard (LOM) design.
For blade servers it can support up to 4 SerDes ports as LOM or mezzanine card.
It can also be used in embedded applications such as switch add-on cards and network appliances.

FEATURES:
- 4X RJ45
- 10/100/1000Mbps
- IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
- 4X PCI express INTERFACE
- LED Indicators

OS SUPPORT:
- DOS, Novell ODI
- Windows XP 32-bit(64-bit),Windows Server 2003 32-bit(64-bit),Windows Vista
- 32-bit(64-bit),Windows 7 32-bit(64-bit)
- Windows 8 32-bit(64-bit),Windows 8.1 32-bit(64-bit)
- Windows Server 2008 32-bit(64-bit),Windows Server 2008 R2 32-bit(64-bit)
- Windows Server 2012,Windows Server 2012 R2
- Linux 2.4 series kernel,2.6.x,3.x
- FreeBSD 7.x or most of FreeBSD,UnixWare / Open Unix 8
- Sun Solaris x86,VMware,Xen4

Dimension 130 x 68.5 x 17mm
