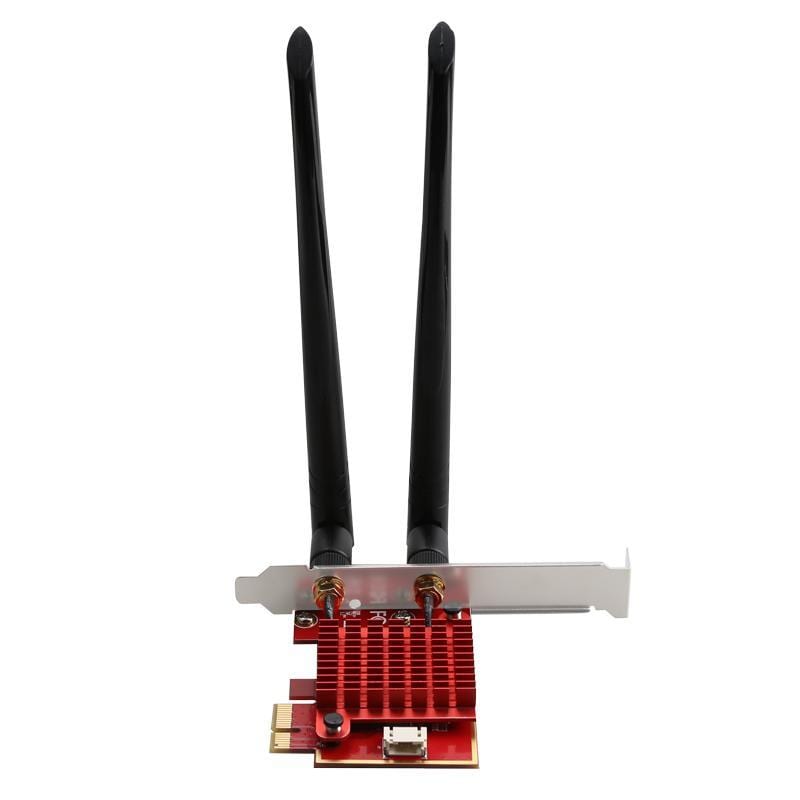

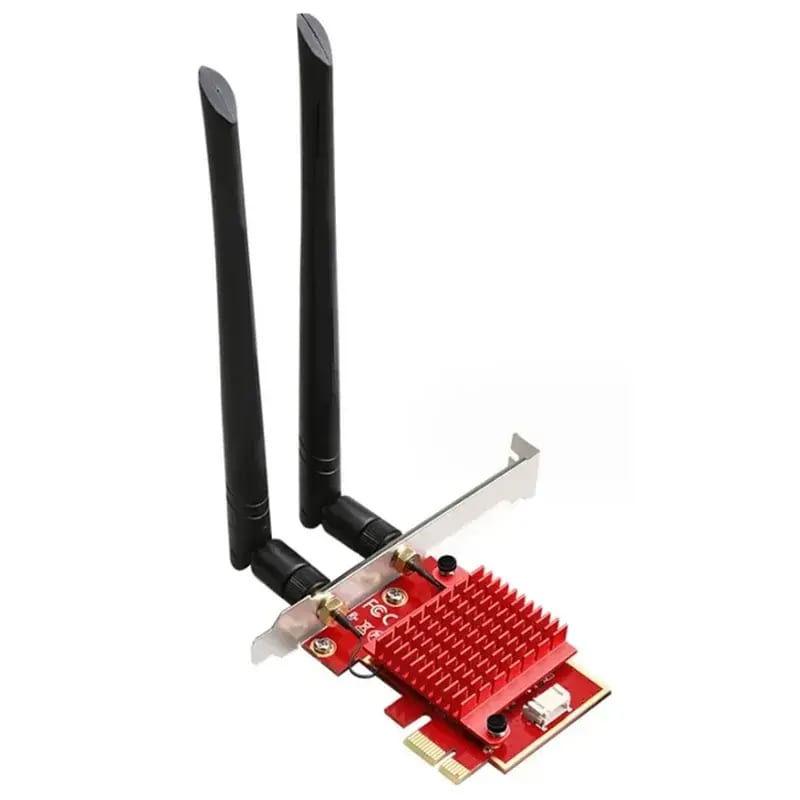

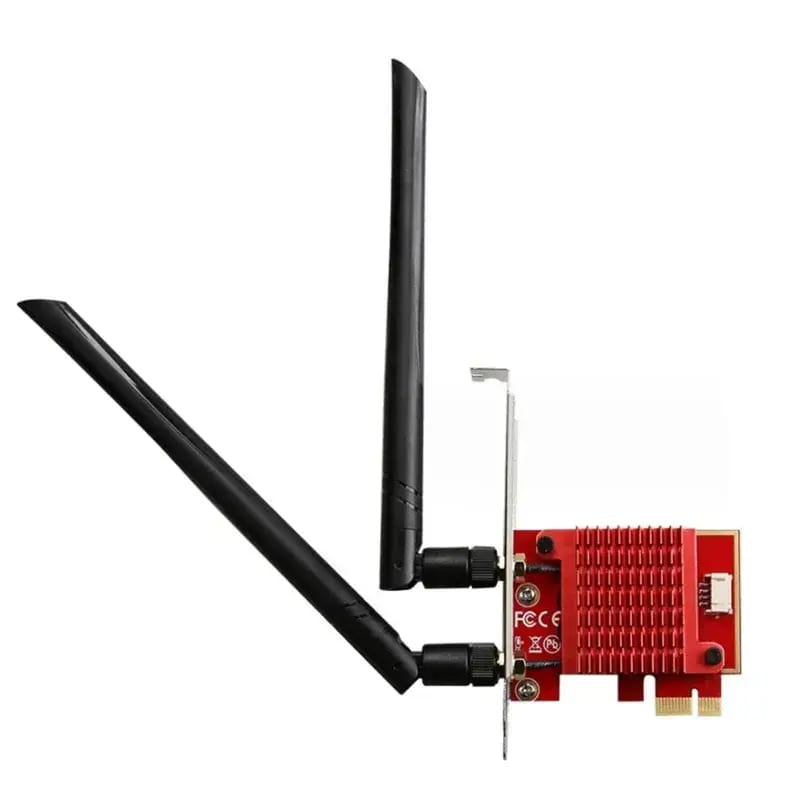

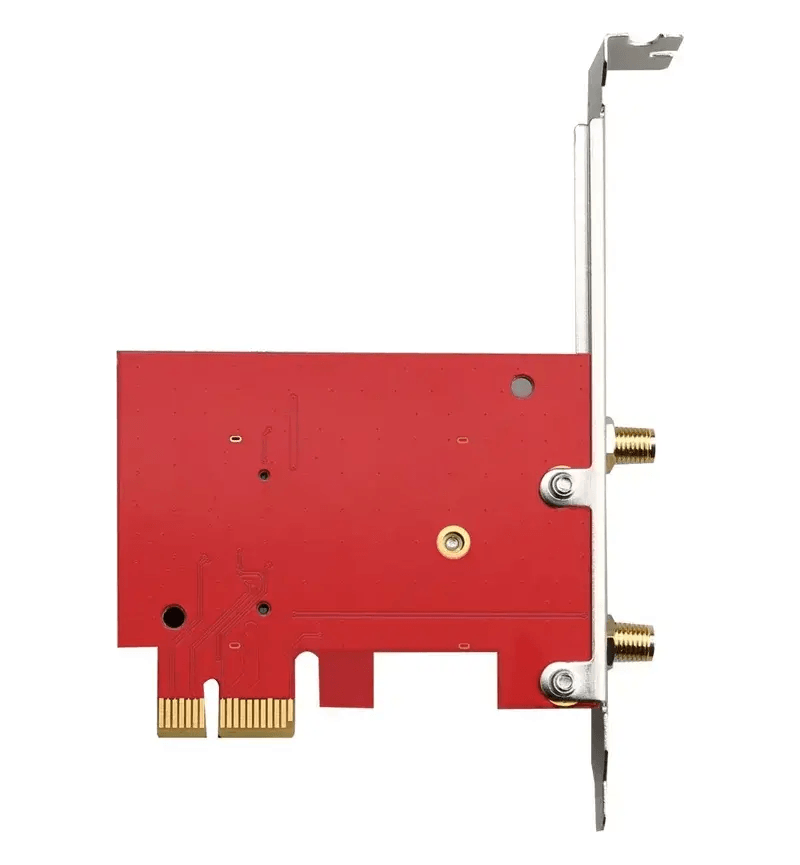

TXA116 AX5400 Tri-Band WiFi 6E PCIe Adapter
The TXA116 is an AX5400-class WiFi 6E PCIe adapter designed to upgrade compatible desktop computers with high-speed tri-band wireless networking and Bluetooth connectivity. Powered by the Intel Wi-Fi 6E AX210 chipset, it supports the 2.4GHz, 5GHz and 6GHz wireless bands.
Tri-band wireless connectivity delivers speeds of up to 2402Mbps on the 6GHz band, up to 2402Mbps on the 5GHz band and up to 574Mbps on the 2.4GHz band, providing a maximum aggregate AX5400-class wireless connection when used with compatible networking equipment.
The TXA116 uses a PCI Express x1 interface and can be installed in compatible PCIe x1, x4, x8 or x16 slots. Bluetooth 5.3 connectivity is also supported for compatible wireless peripherals, with Bluetooth functionality requiring connection of the included internal USB header cable to a 9-pin USB header on the motherboard.
Two external high-gain dual-band/tri-band antennas provide wireless connectivity across the supported frequency bands, making the TXA116 a practical upgrade for desktop PCs requiring WiFi 6E networking and Bluetooth from a single PCIe expansion card.
Specifications
- Model: TXA116
- Product Type: WiFi 6E PCIe Network Adapter
- Wireless Class: AX5400
- Chipset: Intel Wi-Fi 6E AX210
- Maximum Aggregate Speed: Up to 5400Mbps
- Frequency Bands: 2.4GHz, 5GHz & 6GHz
- 6GHz Speed: Up to 2402Mbps (WiFi 6E)
- 5GHz Speed: Up to 2402Mbps (WiFi 6)
- 2.4GHz Speed: Up to 574Mbps (Legacy/WiFi 6)
- Bluetooth: Bluetooth 5.3
- PCIe Interface: PCI Express x1
- PCIe Slot Compatibility: PCIe x1, x4, x8 & x16
- Bluetooth Connection: 9-Pin Internal USB Header
- Antennas: 2 × External High-Gain Dual-Band/Tri-Band Antennas

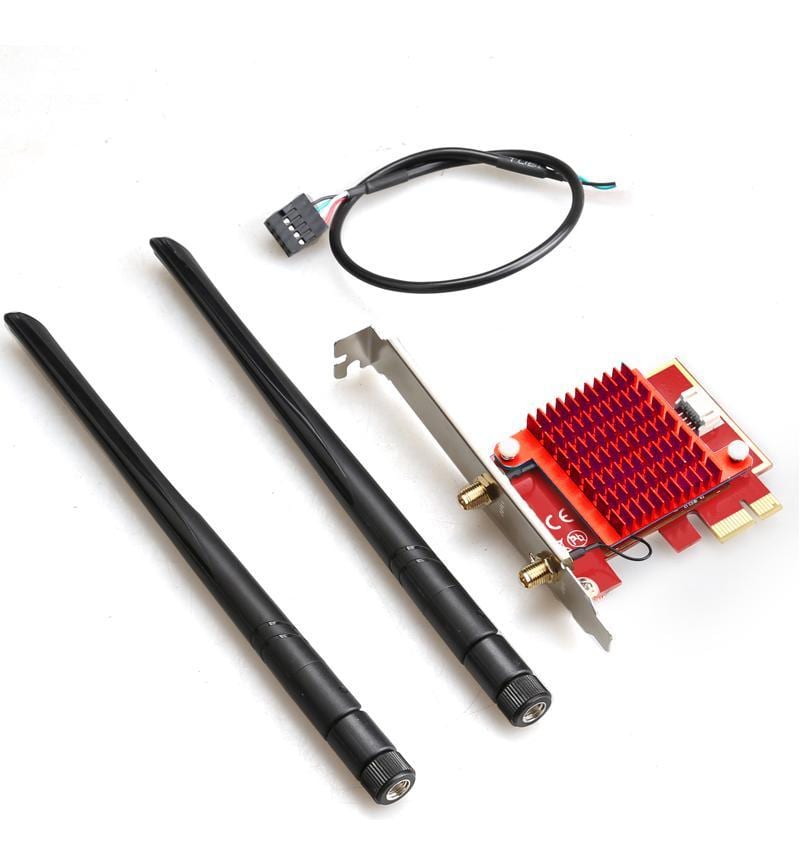

What's in the Box
- 1 × TXA116 AX5400 WiFi 6E PCIe Adapter
- 2 × External High-Gain Antennas
- 1 × Internal USB Header Cable for Bluetooth
