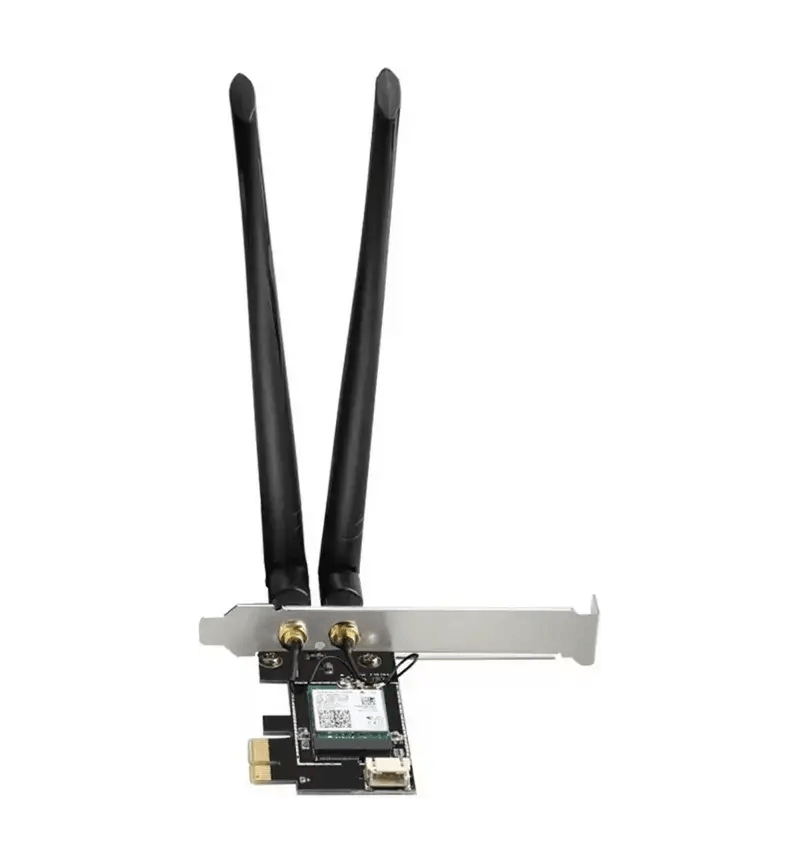

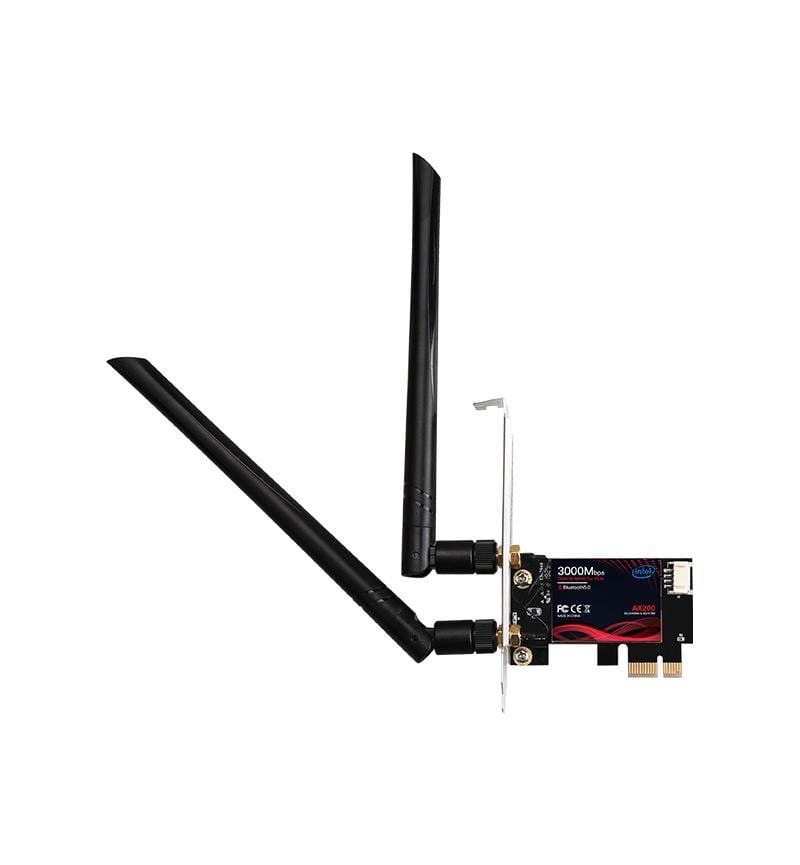

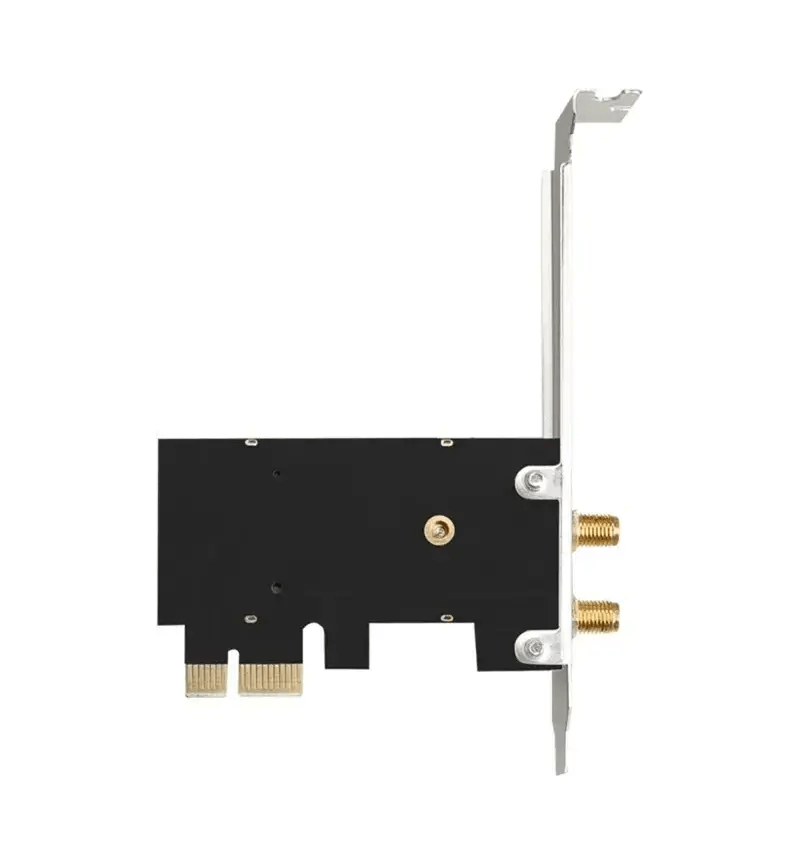

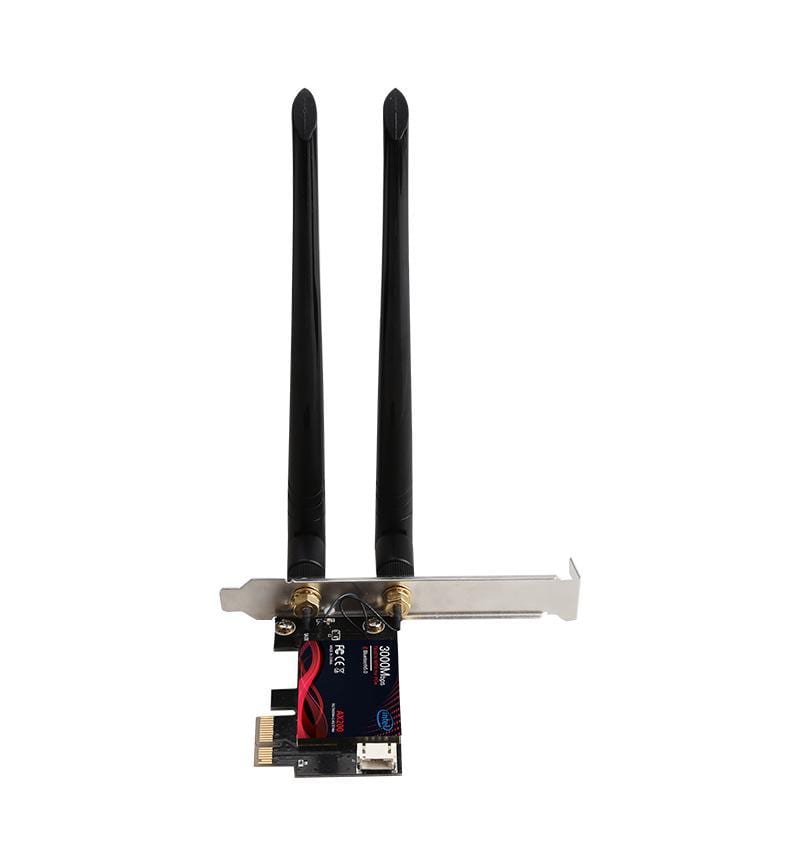

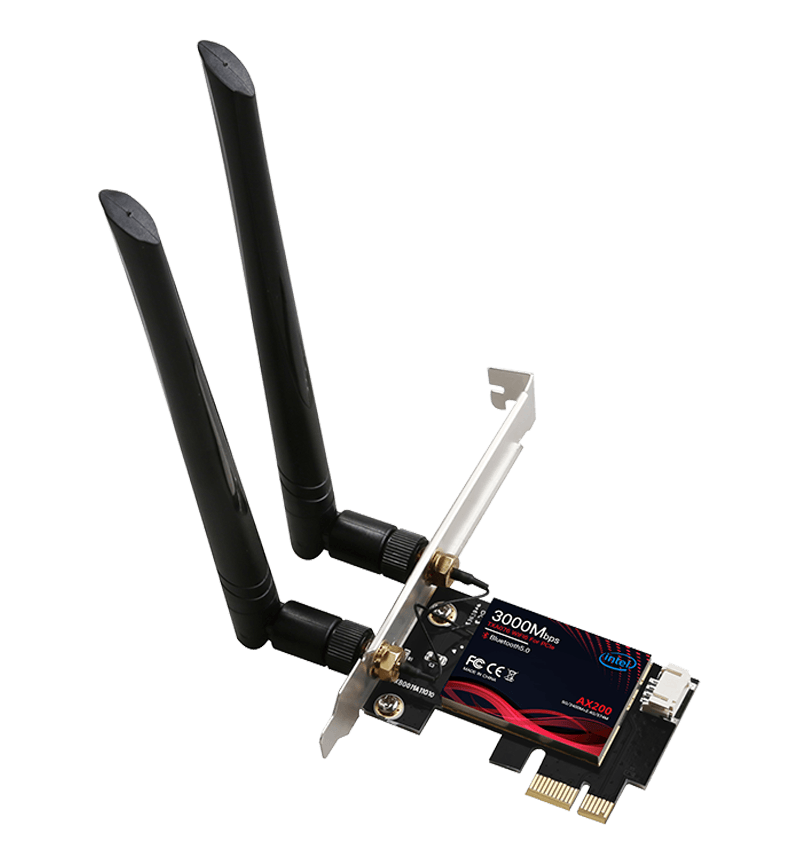

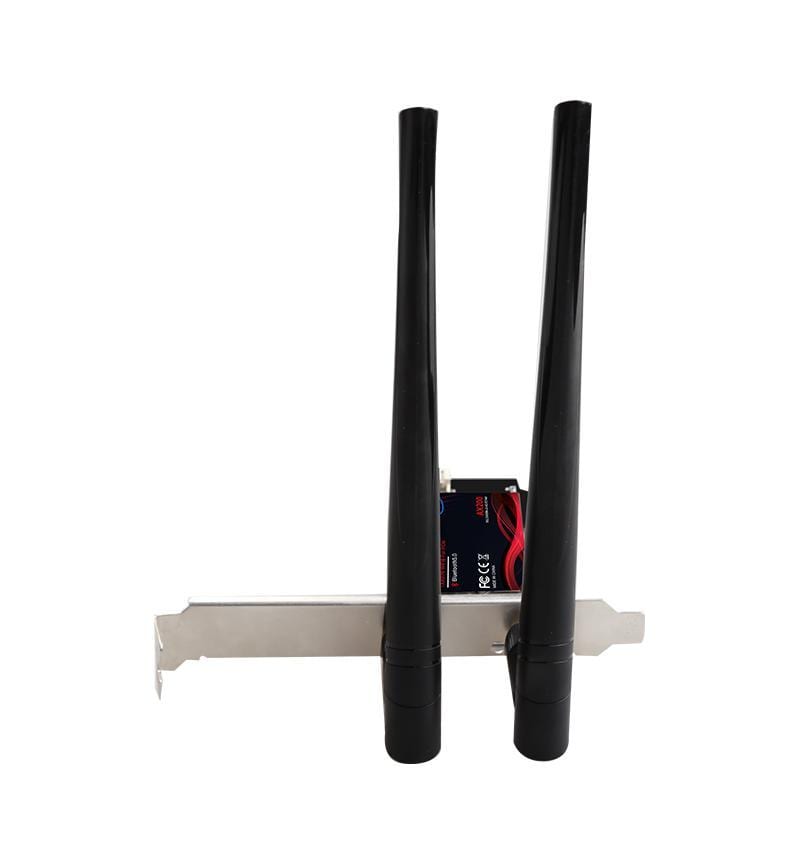

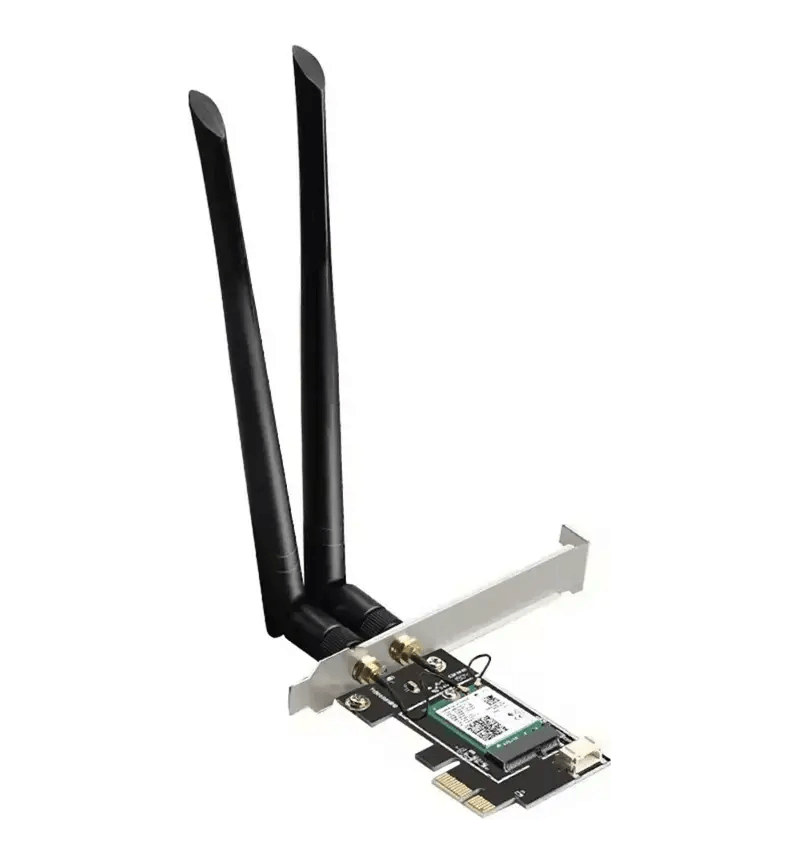

TXA076 AX3000 Dual-Band WiFi 6 PCIe Adapter
The TXA076 is an AX3000 dual-band WiFi 6 PCIe adapter designed to upgrade compatible desktop computers with high-speed wireless networking and Bluetooth connectivity. Powered by the Intel AX200 chipset, it supports the WiFi 6 IEEE 802.11ax standard while remaining backward compatible with previous 802.11a/b/g/n/ac wireless networks.
Dual-band wireless connectivity provides speeds of up to 2400Mbps on the 5GHz band and up to 574Mbps on the 2.4GHz band, delivering AX3000-class performance for high-speed internet access, streaming, online gaming, downloads and everyday network use when connected to compatible networking equipment.
The adapter installs into a PCI Express x1 slot and includes two external 5dBi high-gain dual-band antennas to provide wireless connectivity. Bluetooth 5.0 is also supported, allowing compatible Bluetooth peripherals to connect to the desktop computer. An available internal USB header connection on the motherboard is required for Bluetooth functionality.
Specifications
- Model: TXA076
- Product Type: Dual-Band WiFi 6 PCIe Adapter
- Wireless Class: AX3000
- Chipset: Intel AX200
- Wireless Standard: WiFi 6 (IEEE 802.11ax)
- Backward Compatibility: IEEE 802.11a/b/g/n/ac
- Frequency Bands: 2.4GHz & 5GHz
- Maximum Combined Wireless Speed: Up to 3000Mbps
- 5GHz Wireless Speed: Up to 2400Mbps
- 2.4GHz Wireless Speed: Up to 574Mbps
- Interface: PCI Express x1
- Bluetooth: Bluetooth 5.0
- Bluetooth Requirement: Internal USB Header Connection Required
- Antennas: 2 × External 5dBi Fixed High-Gain Dual-Band Antennas
- Compatibility: Desktop Computers with a Compatible PCI Express x1 Slot
What's in the Box
- 1 × TXA076 AX3000 WiFi 6 PCIe Adapter
- 2 × External 5dBi Dual-Band Antennas
