M-Link VC-20A01 ATX Gaming Case

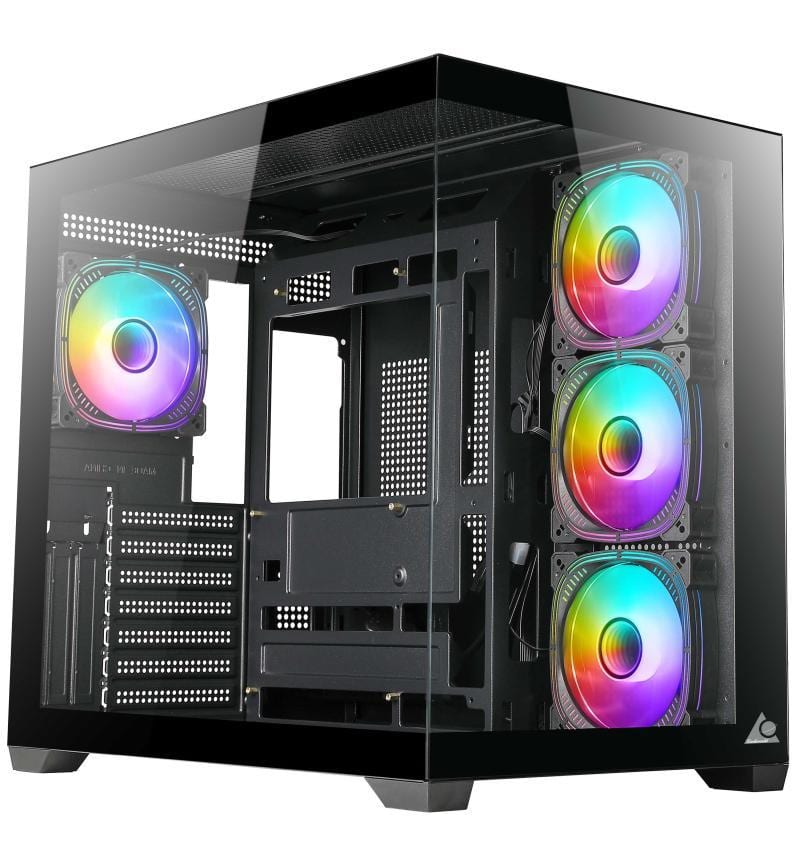

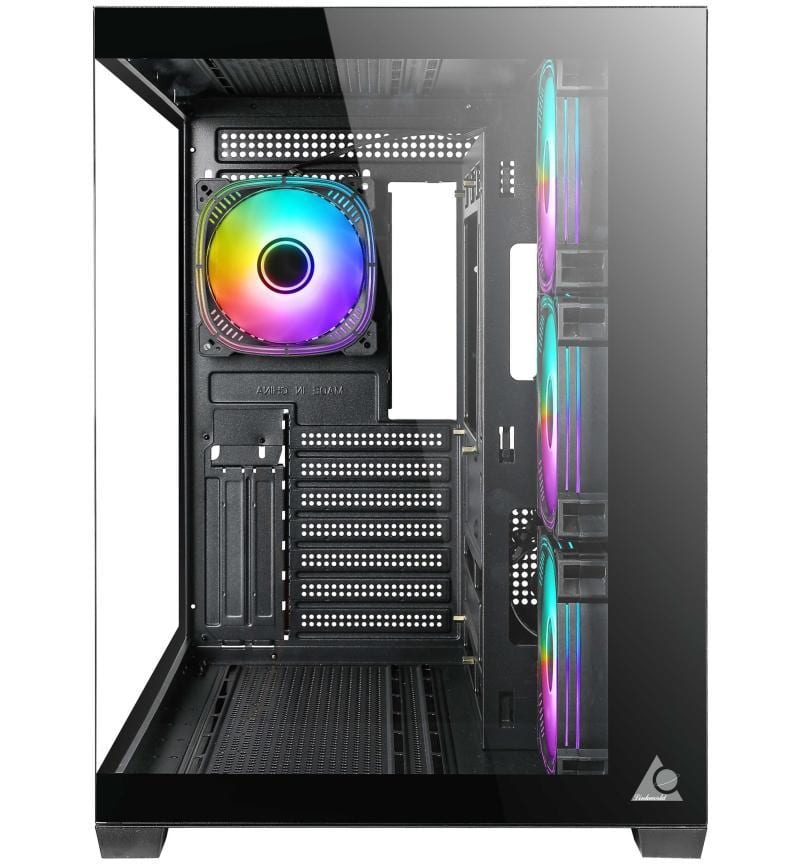

Step into the next level of gaming with the M-Link VC-20A01 ATX Gaming Chassis. Designed for ATX and Micro-ATX systems, including compatible back-connect motherboards, the case combines tempered glass panels with four included 120mm ARGB fans to showcase your gaming build.

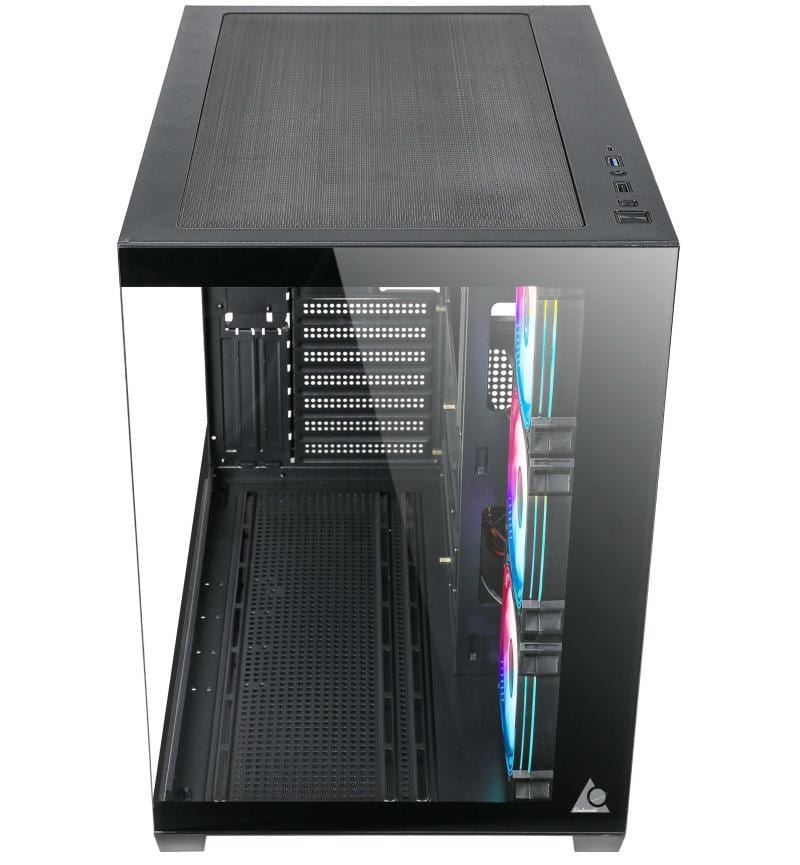

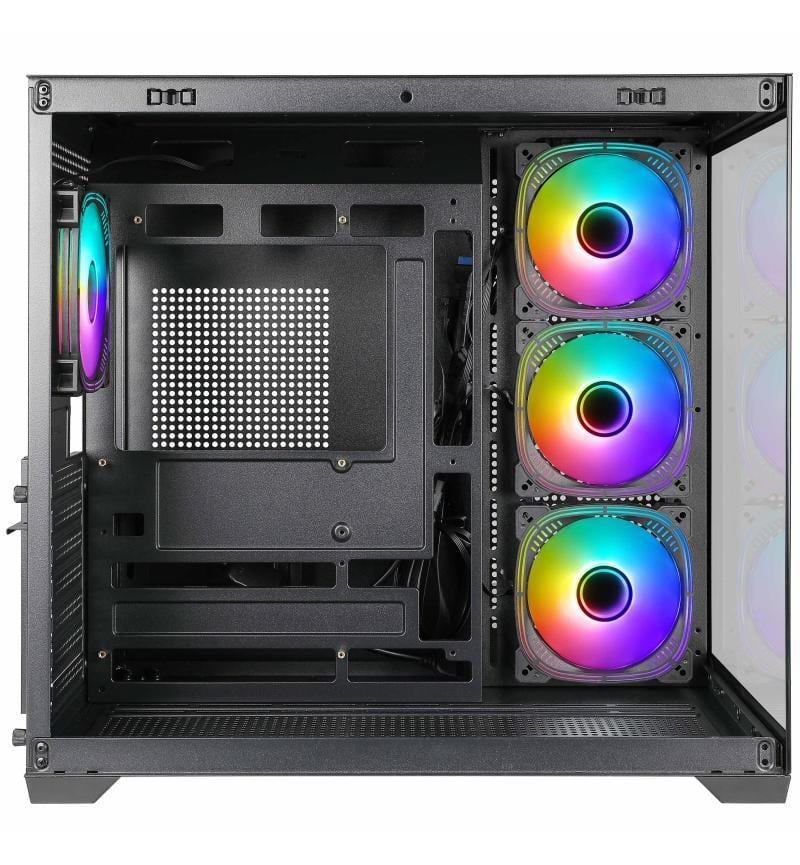

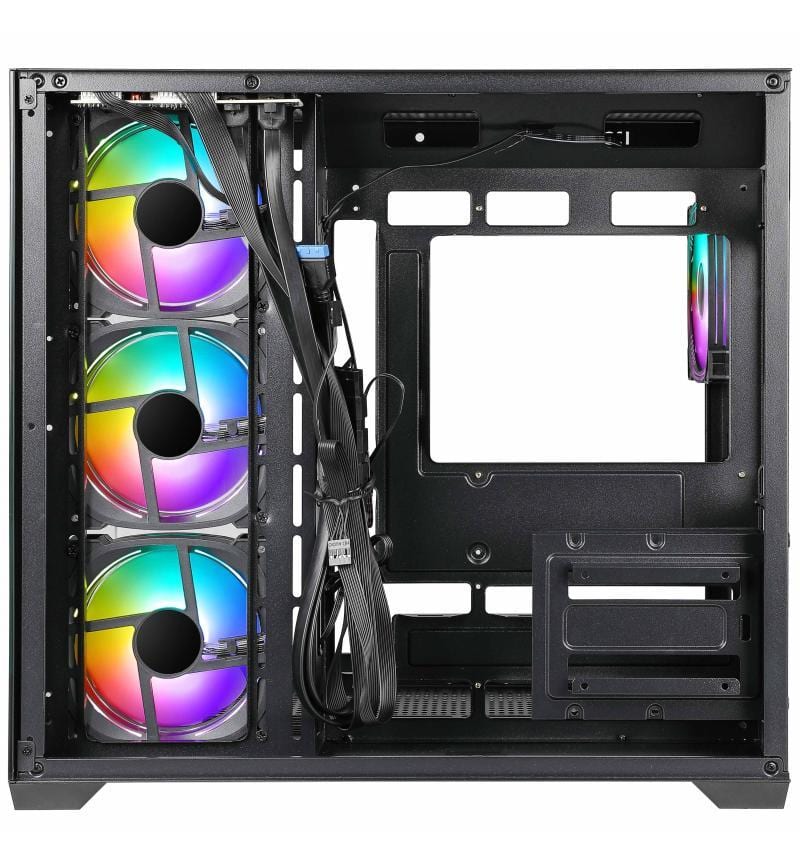

The front glass panel and left tempered glass side panel provide a clear view of the internal components and lighting. Three 120mm ARGB fans are included on the motherboard side, with an additional 120mm ARGB fan at the rear. Lighting can be controlled using the case LED button, while addressable RGB devices can also be synchronised with compatible motherboard lighting software.
The VC-20A01 provides generous hardware clearance with support for CPU coolers up to 175mm high and graphics cards up to 400mm long. Extensive cooling options include multiple 120mm and 140mm fan positions as well as support for water-cooling radiators up to 360mm.
Top-mounted connectivity includes USB 2.0, USB 3.0, USB Type-C 3.0 and combo HD audio. The case is supplied without a power supply, allowing a suitable PSU to be selected separately for the intended system configuration.
Specifications
- Brand: M-Link
- Model: VC-20A01
- Product Type: ATX Gaming Case
- Motherboard Support: ATX & Micro-ATX
- Back-Connect Motherboard Support: Yes
- Front Panel: Glass
- Left Side Panel: Tempered Glass
- Right Side Panel: Metal
- Top I/O: 1 × USB 2.0, 1 × USB 3.0, 1 × USB Type-C 3.0 & Combo HD Audio
- Dimensions (H × W × D): 400 × 285 × 420mm Including Panel & Stand
- 2.5" Drive Bays: Up to 2
- 3.5" Drive Bays: Up to 1
- Expansion Slots: 5
- Maximum CPU Cooler Height: 175mm
- Maximum Graphics Card Length: 400mm
- Included Fans: 4 × 120mm ARGB Fans
- ARGB Control: LED Button & Compatible Motherboard Software Synchronisation
- Motherboard Side Fan Support: 3 × 120mm or 2 × 140mm
- Top Fan Support: 3 × 120mm or 2 × 140mm
- Rear Fan Support: 1 × 120mm
- Bottom Fan Support: 3 × 120mm or 2 × 140mm
- Top Water-Cooling Support: Up to 280mm / 360mm
- Bottom Water-Cooling Support: Up to 360mm
- Motherboard Side Water-Cooling Support: Up to 240mm
- Power Supply: Not Included
What's in the Box
- 1 × M-Link VC-20A01 ATX Gaming Case
- 3 × 120mm ARGB Motherboard Side Fans
- 1 × 120mm ARGB Rear Fan
