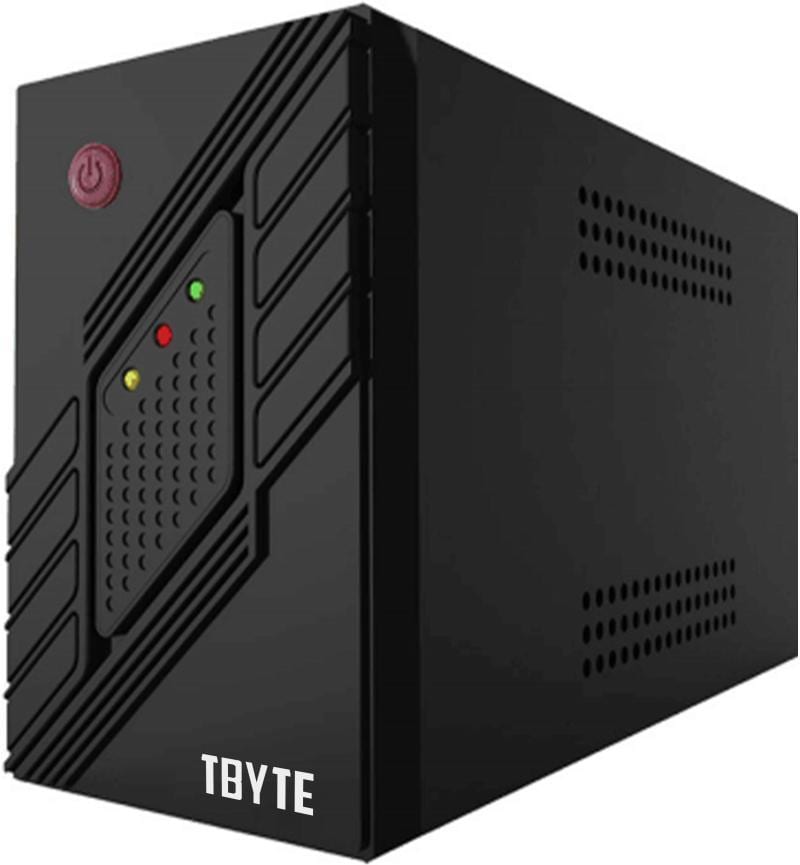

The TBYTE 650VA Line Interactive UPS is a dependable power backup solution designed to keep your devices running smoothly during outages. Here are its key features:
- Input Specifications:
- Voltage: 220Vac ± 25% (5% Adjustable)
- Frequency: 50Hz or 60Hz ± 6%
- Output Specifications:
- Voltage: 220Vac (± 5% Adjustable)
- Frequency: 50Hz or 60Hz ± 1%
- Transfer Time: < 10msec (10 msec on system check)
- Waveform: Sine wave under municipal supply, square wave under battery operation
- Protection Features:
- Load Input: Fuse for overload & short circuit protection
- Short Circuit: Fuse & current limited & cut off
- Battery: Auto-inspection, discharge protection, and battery fault caution
- Battery Specifications:
- Backup Time: 3-10 minutes depending on the load
- Type: Sealed Lead-Acid battery
- Charging Frequency: Normally charged every three months; not less than 6 hours each time
- Audible Alarm:
- Battery Supply Power: Sufficient battery capacity - buzzer rings every 6 seconds, red light flashes
- Insufficient Battery Capacity: Buzzer rings every 1 second, red light flashing
- Battery Low Voltage or Overload/Short Circuit: Buzzer continuously rings, red light on
- Physical Specifications:
- Weight: 4.7 kg
With the TBYTE 650VA Line Interactive UPS, enjoy peace of mind knowing your devices are protected and will continue to operate during unexpected power interruptions.
