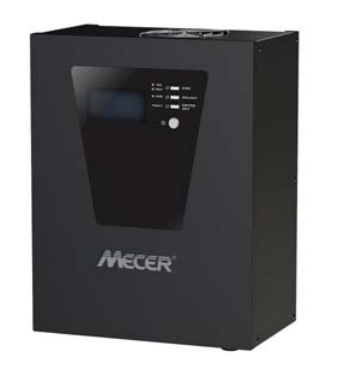

MECER IVR-2400MPPT 2400VA 1800W SOLAR INVERTER

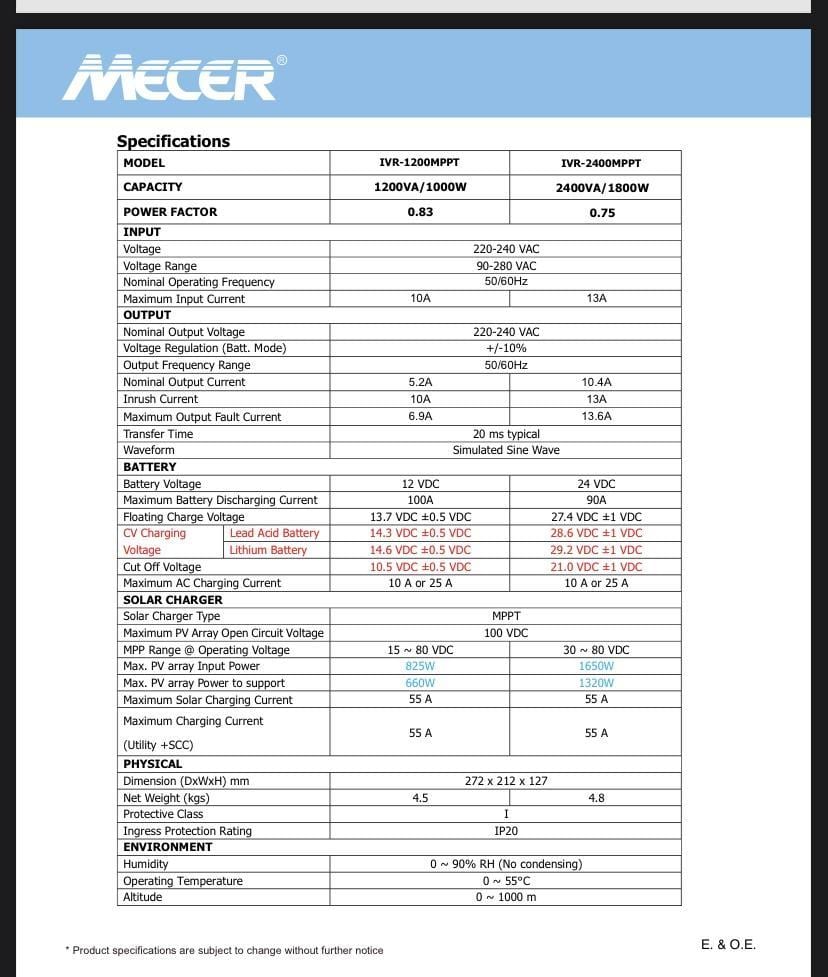

Inverter Specifications:
Input:
- Capacity: 2400VA / 1800W
- Input Voltage: 220-240 VAC
- Input voltage range: 90-280 VAC
- Nominal Operating Frequency: 50/60Hz
- Maximum Input Current: 13A
Output:
- Waveform: Simulated sinewave inverter
- Transfer time: 20ms typical
- Nominal Output Voltage: 220 - 240 VAC
- Voltage regulation (Batt. mode): +/-10%
- Output Frequency Range: 50/60Hz
- Nominal Output Current: 10.4A
- Inrush Current: 13A
- Maximum Output Fault Current: 13.6A
Solar Charger:
- Solar Charger Type: MPPT
- Maximum PV Array Open Circuit Voltage: 100 VDC
- MPP Range @ Operating Voltage: 30 ~ 80 VDC
- Max. PV Array Input Power: 1650W
- Max PV Array Power to support: 1320W
- Max Solar Charging Current: 55 A
- Max Charging Current (Utility + SCC): 55 A
Battery:
- Battery Voltage: 24 VDC
- Max Battery Discharge Current: 90A
- Floating Charge Voltage: 27.4 VCD ±1 VDC
- CV Charging Voltage: 29.2 VDC ±1 VDC
- Cut Off Voltage: 21.0 VDC ±1 VDC
- Maximum AC Charge Current: 10A or 25A
Physical:
- Dimensions (DxWxH) mm: 272 x 212 x 127
- Net Weight (kgs): 4.8
- Protective Class: I
- Ingress Protection Rating: IP20
