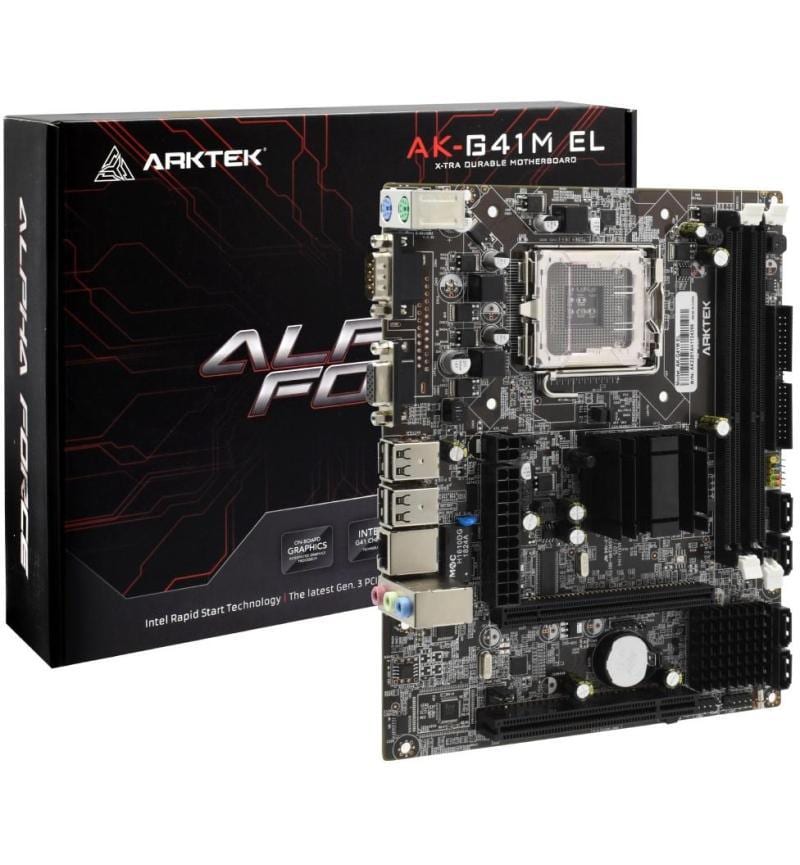

ARKTEK G41 MOTHERBOARD LGA775 MATX - AK-G41M EL
Intel G41
Model: AK-G41M EL
Socket: LGA775
Chipset: Intel G41
Memory Support: Dual Channel DDR3
Overview
Processor: Support Intel Socket 775 for Core 2 Duo/Core/Duo/Pentium 4/Pentium D/Celeron D Processors
Chipset: North Bridge: Intel G41 Chipset, South Bridge: Intel ICH7 Chipset
On-Board Graphics: Integrated Graphics Processor
Memory: DDR3 1333/1066 MHz Max. 4GB
DIMM: 2 x Memory Slots
LAN: Realtek 8105E 10/100M LAN On Board
Audio: Realtek ALC 662 6-Channel High-Definition Audio
SATA: 4 x SATA Port
ON-Board Pinheaders / Connectors: 2 x USB 2.0 Pinheader Supports additional 4 USB 2.0 Ports
1 x Front Panel Audio Pinheader
Back Panel I/O Ports
1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x VGA Port
1 x COM Port 4 x USB 2.0 Port 1 x LAN Jack 3 x Audio Jack
Expansion Slots
1 x PCI Express x16 Slot
Form Factor: Micro-ATX (21.3 x 16,9 cm)
Mounting: 6 Mounting Holes
