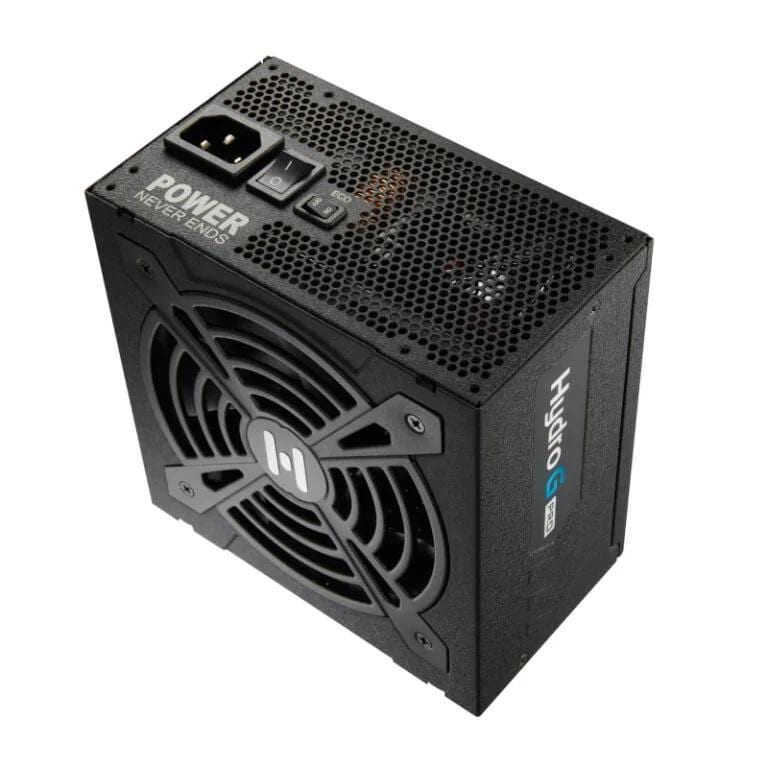

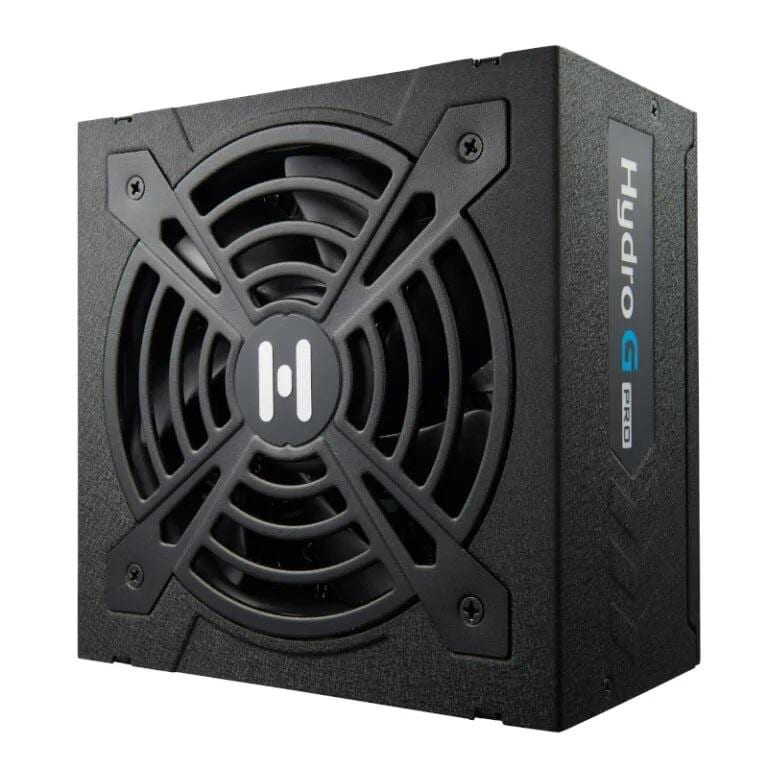

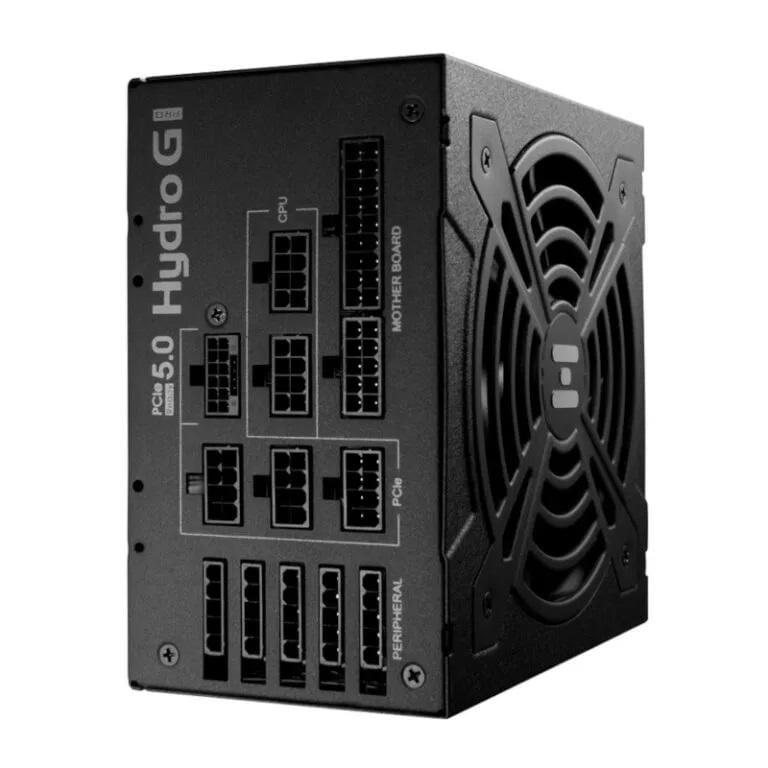

FSP Hydro G PRO 1000W ATX 3.0 Fully Modular Power Supply
The FSP Hydro G PRO 1000W is a high-performance fully modular power supply designed for powerful gaming PCs, enthusiast systems and demanding workstation builds. Supporting the ATX 3.0 and PCIe 5.0 standards, it provides modern power delivery for high-performance processors and graphics cards.
With 80 PLUS Gold certification, the Hydro G PRO is engineered for high conversion efficiency while reducing unnecessary power loss and heat. Its fully modular cable system allows you to connect only the cables required by your system, helping create a cleaner build with improved cable management and airflow.
A quiet 120mm Fluid Dynamic Bearing fan provides cooling, while the integrated ECO switch enables semi-fanless operation. When ECO mode is enabled, the fan can remain stopped during lighter workloads for quieter system operation. Japanese electrolytic capacitors, DC-to-DC design and conformal coating further contribute to long-term reliability.
PCIe 5.0 support includes a dedicated 12VHPWR connection for compatible graphics cards, while comprehensive electrical protection includes over-current, over-voltage, over-power, short-circuit, over-temperature and under-voltage protection.
Specifications
- Brand: FSP
- Series: Hydro G PRO
- Part Number: PPA10A2422
- Product Type: ATX Power Supply
- Rated Power: 1000W
- Modularity: Fully Modular
- Efficiency Certification: 80 PLUS Gold
- ATX Standard: ATX 3.0
- PCIe Standard: PCIe 5.0
- PFC: Active PFC
- Input Voltage: 100240V AC
- Input Frequency: 5060Hz
- +12V Rail: Single Rail, 83.33A / 1000W
- Cooling: 120mm Fluid Dynamic Bearing Fan
- Fan Control: ECO Semi-Fanless Mode
- Capacitors: Japanese Electrolytic Capacitors
- Design: DC-to-DC Module Design
- GPU Power: 12VHPWR PCIe 5.0 Support
- Motherboard Connector: 1 × 20+4-Pin ATX
- CPU Connectors: 2 × 4+4-Pin EPS
- SATA Connectors: Up to 14
- Peripheral Connectors: Up to 5 × Molex
- Protections: OCP, OVP, OPP, SCP, OTP & UVP
- MTBF: 100,000 Hours
- Dimensions: 150 × 150 × 86mm
- Colour: Black
What's in the Box
- 1 × FSP Hydro G PRO 1000W Power Supply
- Modular Power Cables
- AC Power Cable
- Installation Accessories
