FEATURES:
- Dual SSD compatibility: Supports both NVMe (M-Key) and SATA (B-Key) M.2 SSDs
- PCIe 3.0 x4 high-speed interface: Enables data transfer speeds up to 32Gbps (NVMe) and 6Gbps (SATA)

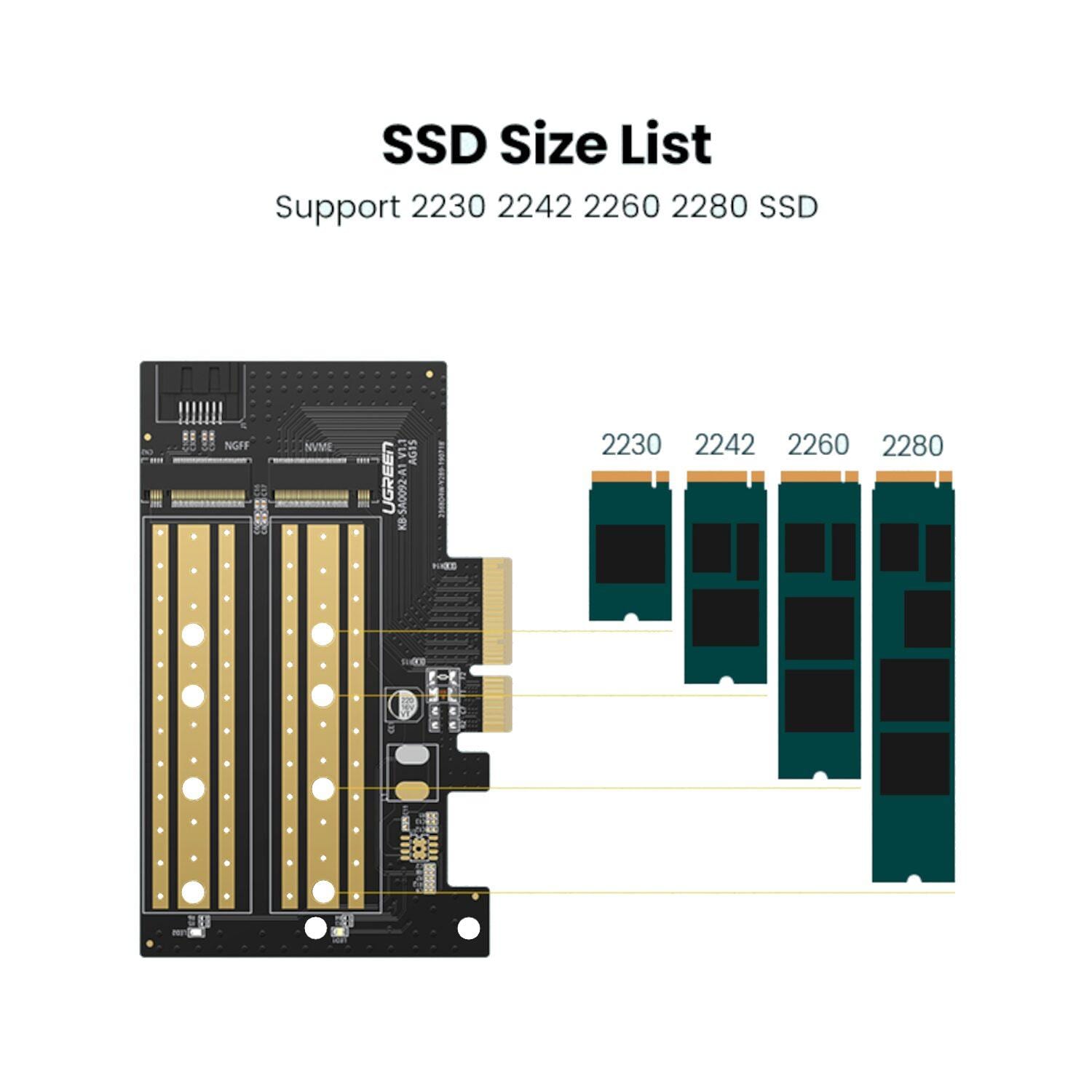

- Broad SSD support: Compatible with M.2 SSD form factors 2230, 2242, 2260, and 2280, ensuring wide-ranging upgrade options.
- Seamless system integration: Works with Windows and Linux operating systems
- Premium Build Quality: Constructed with high-quality PCB materials
- Enhanced cooling efficiency: Open-frame design allows for effective heat dissipation
- Extended Compatibility: Works with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and 1.0 slots
- SATA Cable Included: Comes with a 0.5m SATA cable for easy SATA SSD integration
SPECIFICATIONS:
- Input: M.2 M-Key (NVMe SSD), M.2 B-Key (SATA SSD)
- Output: PCIe 3.0 x4, 7-Pin SATA Connector

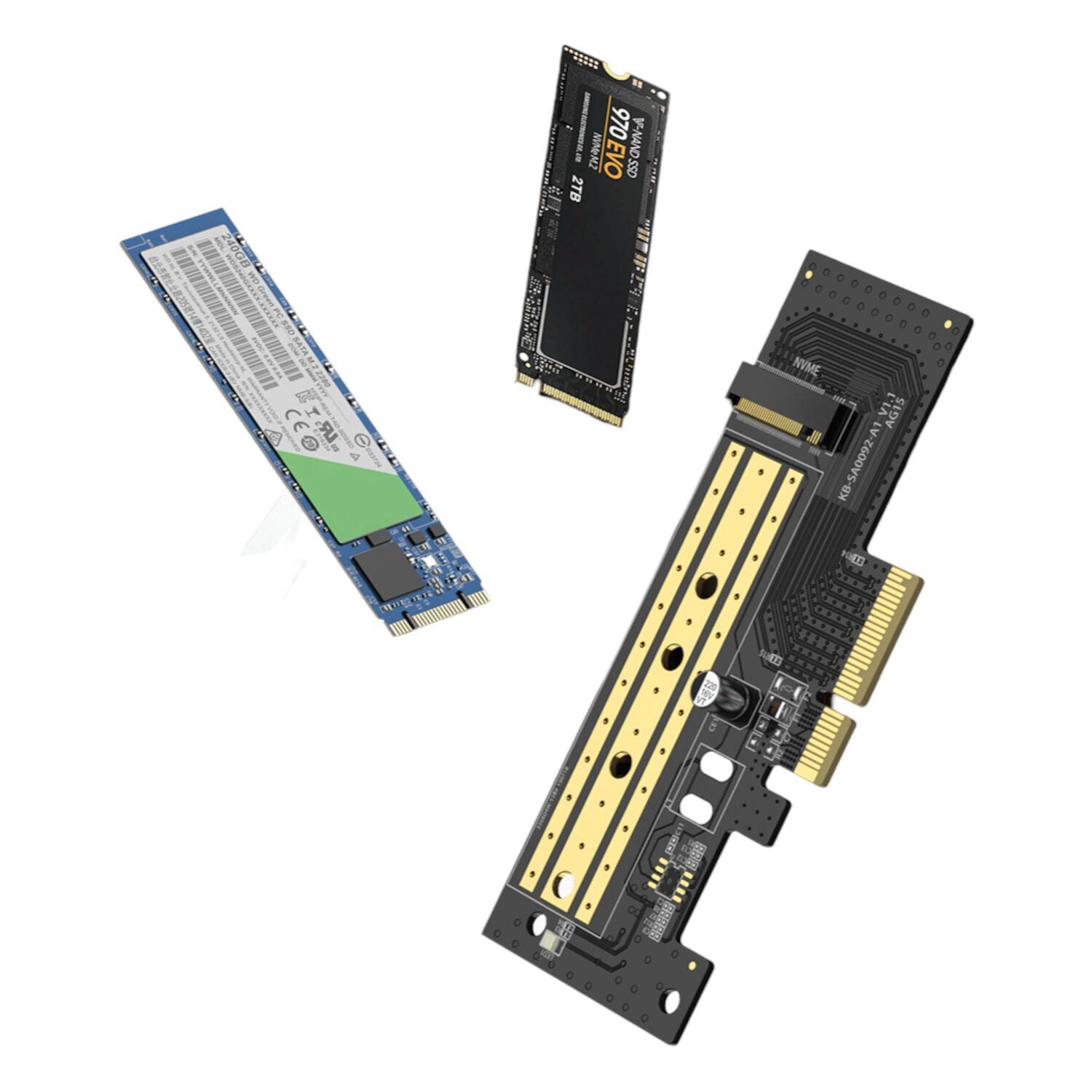

- Supported SSDs: M.2 NVMe & SATA SSDs (2230/2242/2260/2280)
- Data Transfer Speeds:
- PCIe NVMe: Up to 32Gbps
- SATA: Up to 6Gbps
- Compatibility: Windows, Linux
- PCB Dimensions: L11.68 x W7.4 cm
- Baffle Panel Length: 119mm
- SATA Cable Length: 50cm
- Power Requirements: Draws power directly from PCIe slot (no external power needed)
- Build Material: High-quality PCB and metal components for durability
WHATS IN THE BOX:

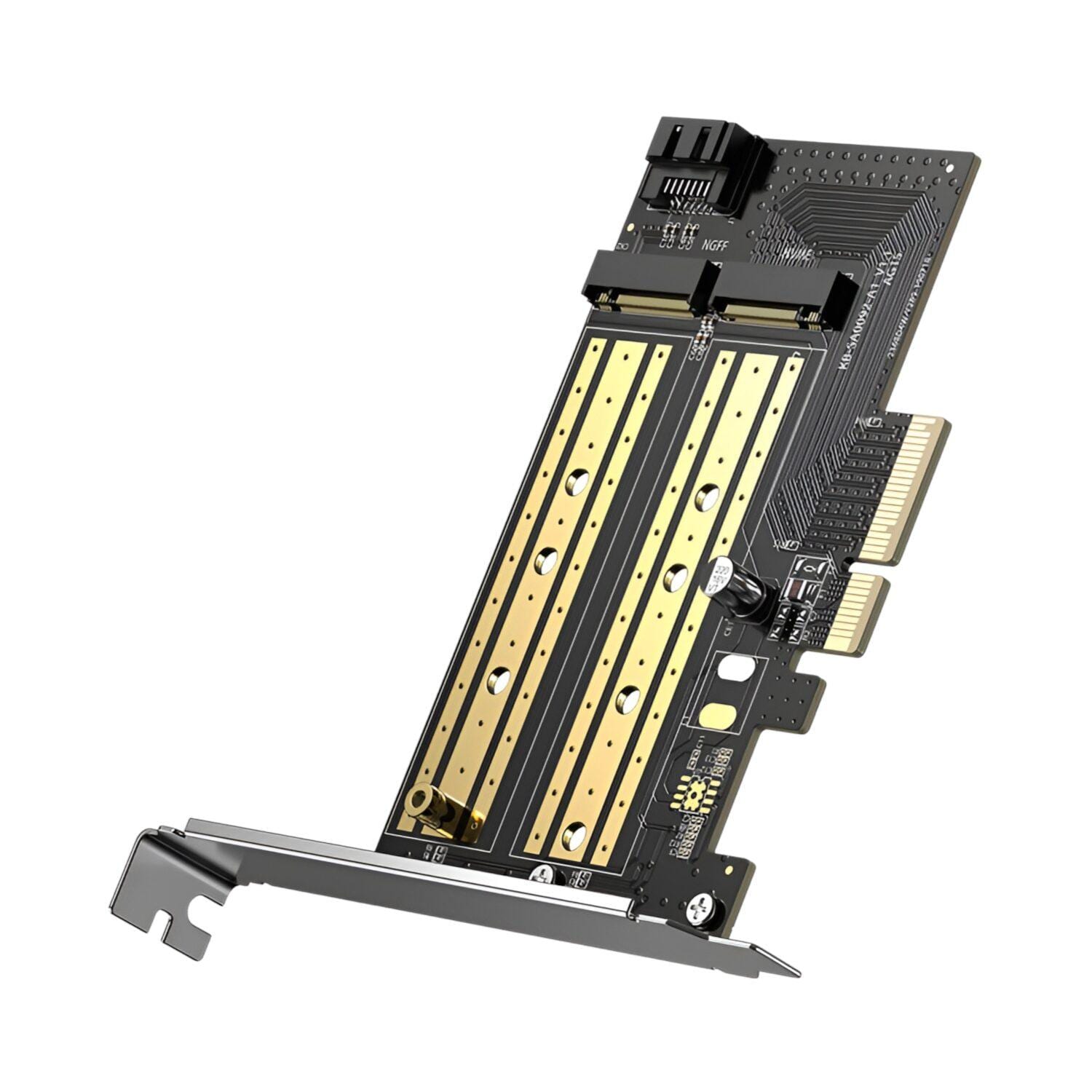

- UGREEN CM302 M.2 M/B-Key to PCI-E 3.0 Expansion Card x1
