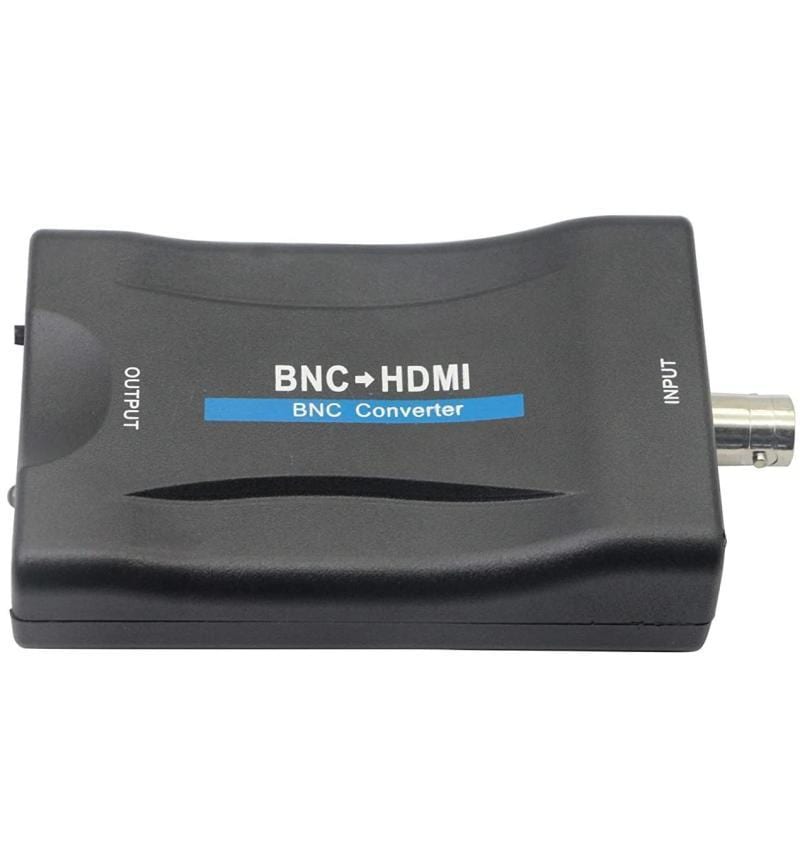

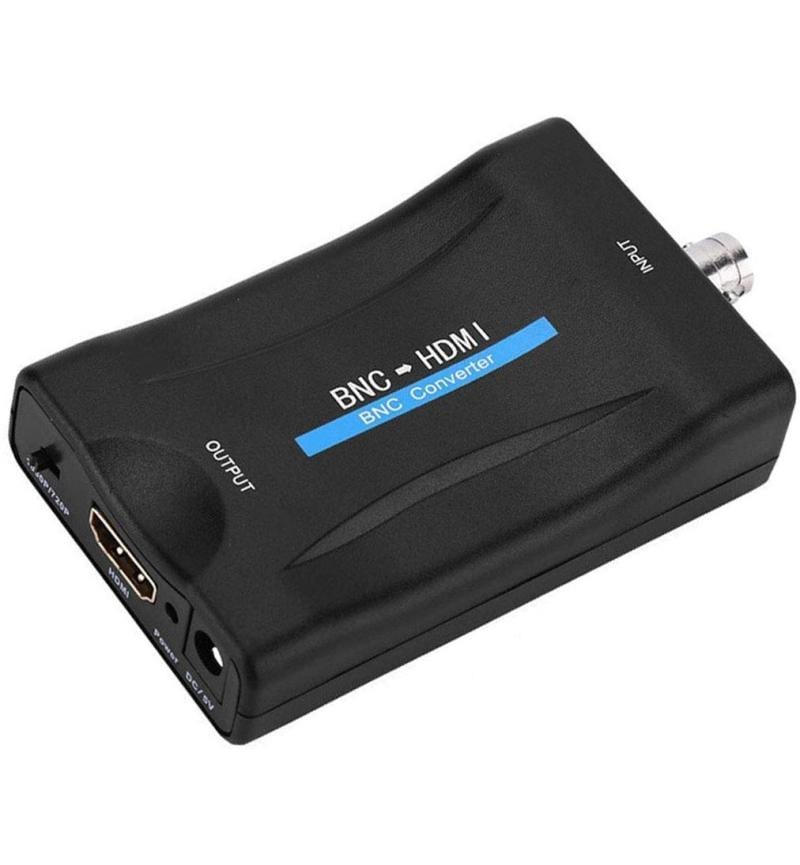

Composite BNC and Audio Input to HDMI Output Adapter with 720P/1080P Switch - BNC2HDMI
Convert CVBS BNC Analog Video Signal and 3.5mm Aux Audio to HDMI Output
Specifications:
- Supports resolutions up to 1080P@50/60Hz and 720P@50/60Hz for vibrant HD displays.
- Includes 3D Compensation Technology for motion, color optimization, and noise reduction.
- Compatible with PAL/NTSC formats and standard HDMI Type A output.
- Features 4:3/16:9 aspect ratio switching and low power consumption for continuous operation.
- Plug-and-play; no driver installation required.
- Not compatible with digital cameras, AHD/TVI/CVI formats, or cable TV signals.
NOTES:
- It is only for CVBS Analog Camera, can NOT fit the Digital Camera or AHD/TVI/CVI Camera
- The Output Port is standard HDMI Type A
- It is NOT an SDI Converter, can NOT Convert Cable TV signal
- Do not use it to connect your Antenna and Cable TV
- If you use a TV set as the Monitor, switch the Input or source button on the TV clicker to the HMID mode
PLUG and PLAY
- Wire CVBS CCTV Camera or DVR with BNC Output - Coax Cable
- This Adapter - HDMI Cable - PC Monitor/ Projector/ Computer
- Works after easy installation without any special settings, no driver Software required
