FEATURES:
- Leverage the power of AMD Ryzen 7000, 8000, and 9000 Series processors for a wide range of performance needs.
- Configure robust RAID arrays (0, 1, 10, or 5) for your storage needs, ensuring data integrity and speed.
- Experience crystal-clear audio with jack-detection and front panel jack-retasking for personalised sound configurations.
- Benefit from multiple USB ports for versatile peripheral connectivity, ensuring all your devices are supported.
- Enjoy rapid storage performance with an onboard M.2 slot, designed for swift data access and system responsiveness.
SPECIFICATIONS:
- CPU
- AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
- Supports up to AMD 120W CPU
- * Refer to https://www.asus.com/support/download-center/ for CPU support list.
- Chipset
- AMD A620A Chipset
- Memory
- 2 x DIMM slots, max. 128GB, DDR5
- Supports up to
- 7200+MT/s(OC) with Ryzen 9000 & 7000 Series Processors,
- 7600+MT/s(OC) with Ryzen 8000 Series Processors,
- Non-ECC Un-buffered DIMM*
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO)
- ASUS Enhanced Memory Profile (AEMP)
- Graphics
- 1 x DisplayPort**
- 1 x HDMI port***
- * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
- ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
- Expansion Slots
- AMD Ryzen 9000 & 7000 Series Desktop Processors*
- 1 x PCIe 4.0 x16 slot (supports x16 mode)
- AMD Ryzen 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
- AMD A620A Chipset
- 1 x PCIe 3.0 x1 slot
- Storage
- Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
- AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- AMD A620A Chipset
- 4 x SATA 6Gb/s ports
- RAID Support
- AMD RAIDXpert2 Technology*
- Ryzen 9000 Series Processors: RAID 0/1/5/10
- Ryzen 8000 Series Processors: RAID 0/1
- Ryzen 7000 Series Processors: RAID 0/1/10
- * Specifications vary by CPU types.
- Ethernet
- 1 x Realtek 1Gb Ethernet
- ASUS LANGuard
- USB
- Rear USB (Total 6 ports)
- 4 x USB 5Gbps ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 6 ports)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

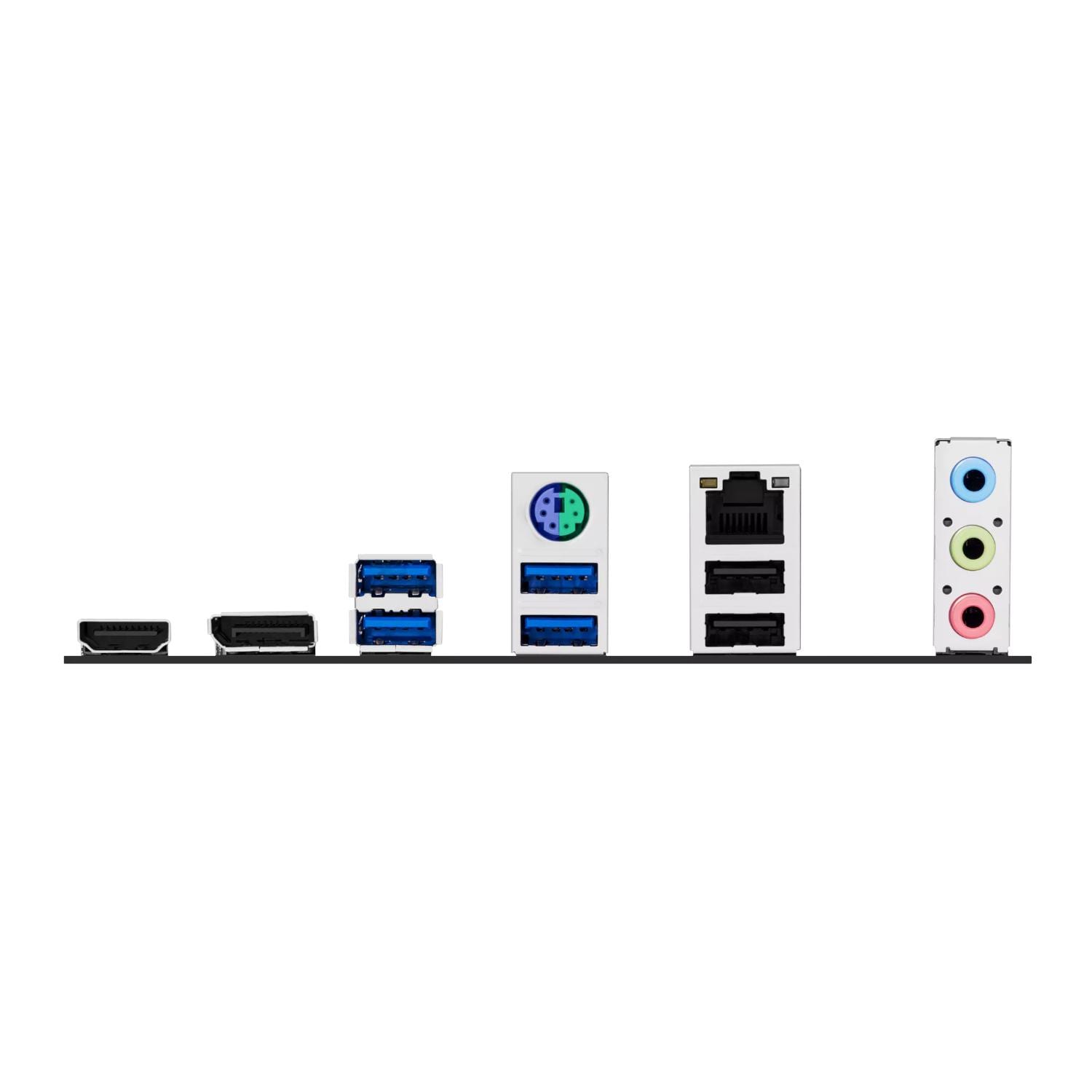

- Back Panel I/O Ports
- 4 x USB 5Gbps ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Realtek 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 keyboard/mouse combo port
- Internal I/O Connectors
- Fan and Cooling Related
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- Power Related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V CPU Power connector
- Storage Related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Miscellaneous
- 3 x Addressable RGB Gen 2 headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1 pin)
- 1 x 10-1 pin Front Panel System header
- Special Features
- ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core
- Stainless-steel back I/O
- ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
- ASUS Thermal Solution
- Aluminum heatsink design
- Aura Sync
- Addressable RGB Gen 2 headers
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Manageability
- WOL by PME, PXE
- Operating System
- Windows 11, Windows 10 64-bit
- Form Factor
- micro-ATX Form Factor
- 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
WHATS IN THE BOX:

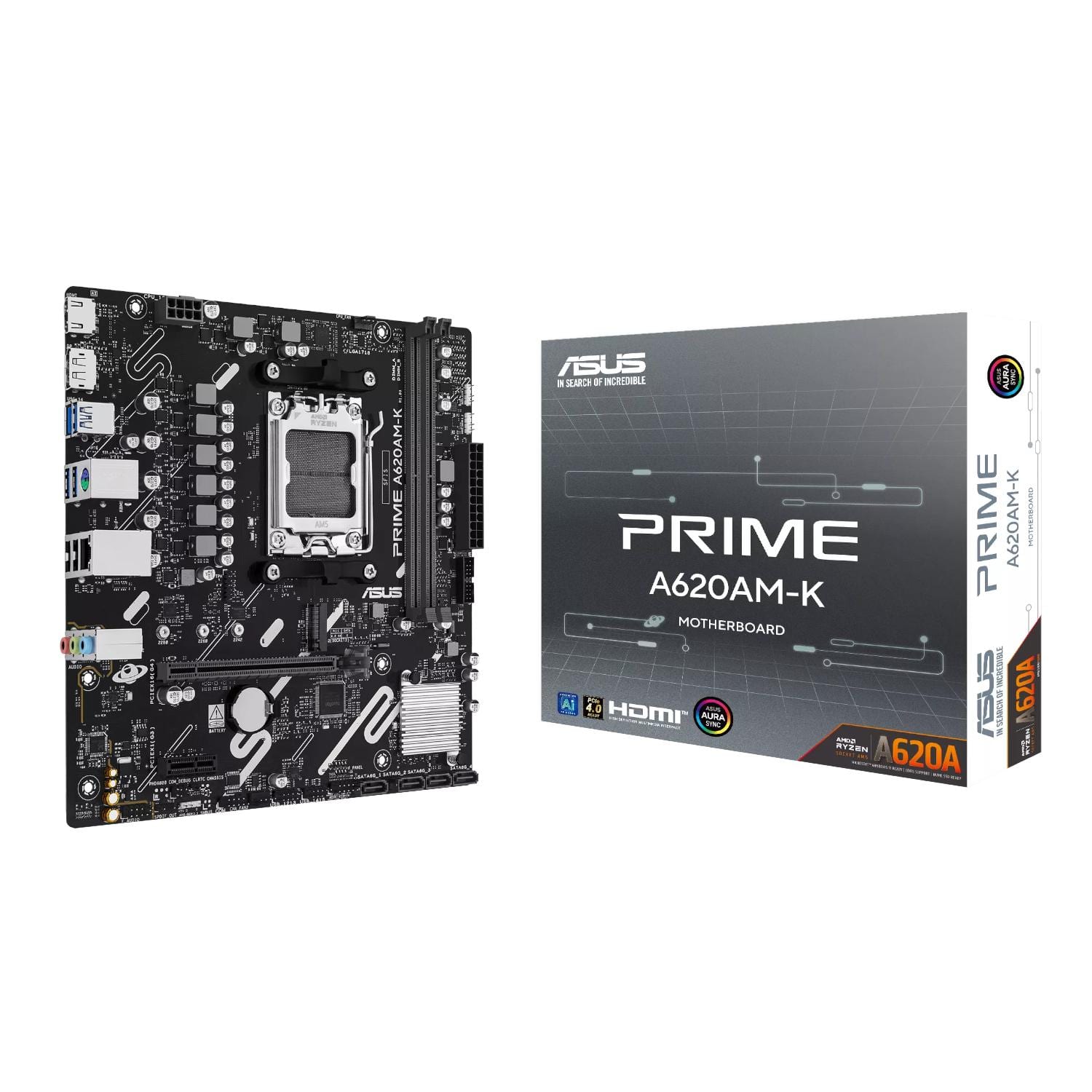

- Asus PRIME A620AM-K AM5 M-ATX Motherboard Black x1
- SATA 6Gb/s cables x2
- I/O shield x1
- Screw Package for M.2 SSD x1
- Quick Start Guide x1
