FEATURES:
- 5× Gigabit Ethernet Ports
- Max 140m Gigabit Transmission
- 3 Mbit Packet Buffer
- Max 2W, Idle 1.4W
- Desktop, Wall-Mount
SPECIFICATIONS:
- 802.3 Network Protocol:
- 802.3x Flow Control
- 802.3i 10 Mbps over Twisted Pair
- 802.3u 100 Mbps over Twisted Pair
- 802.3ab 1 Gbps over Twisted Pair
- Interfaces
- Gigabit RJ45 Ports: 5
- LED: Power/Speed/Link/ACT of Each Ethernet Port
- Power Input: DC Jack
- Performance
- Copper Speed and Distance: Cat. 3 or higher cable: 100 meters at 10 Mbps/ Cat. 5 or higher cable: 100 meters at 100 Mbps/ Cat. 5e or higher cable: 140 meters at Gigabit
- MAC Address Table: 2048
- Max Switching Capacity: 10 Gbps
- Max Forwarding Rate: 7.44 Mpps
- Jumbo Frame: 15 KB
- Packet Buffer: 3 Mbit
- Power:
- Basic Power Saving: True
- Power Methods: DC
- DC: 5V 0.55A
- Max Power Consumption (W): 2W
- Idle Power Consumption (W): 1.4W
- Reliability:
- Lightning/Surge Protection: 2kV
- ESD Air Protection: 8kV
- ESD Contact Protection: 4kV
- Environment:
- Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
- Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing

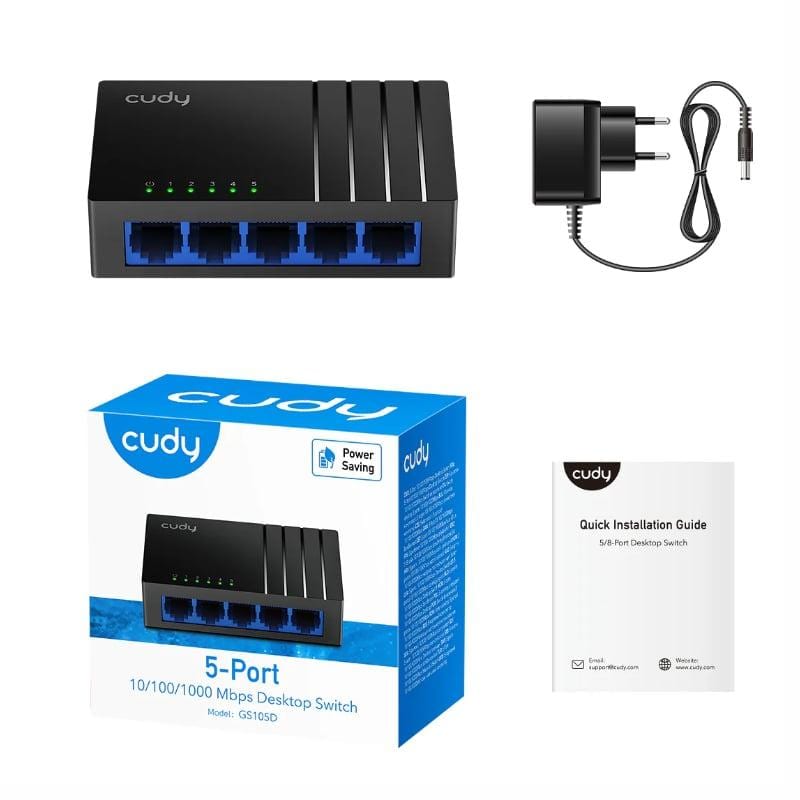

WHATS IN THE BOX:

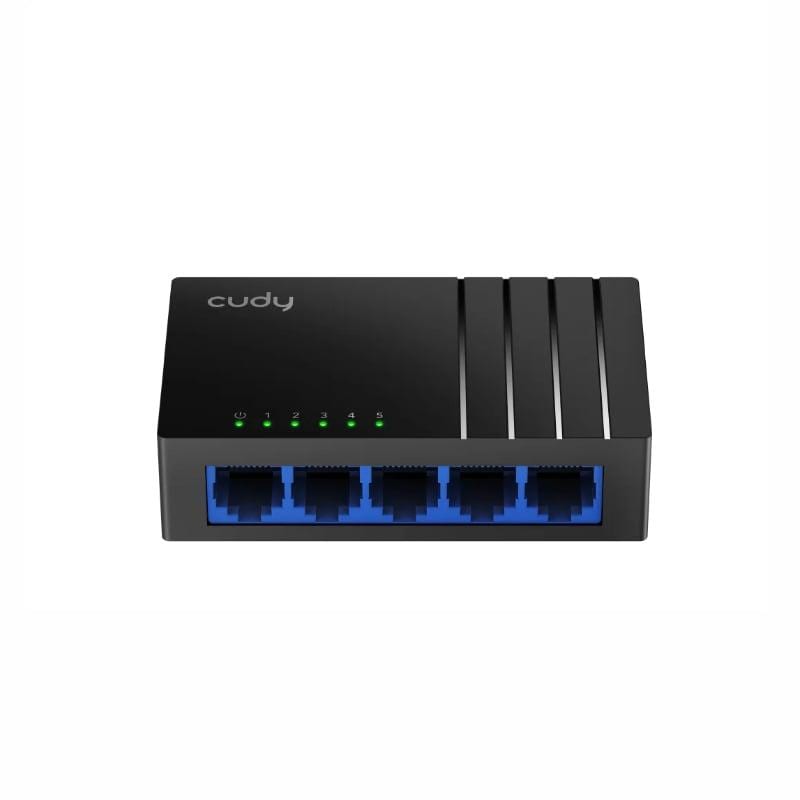

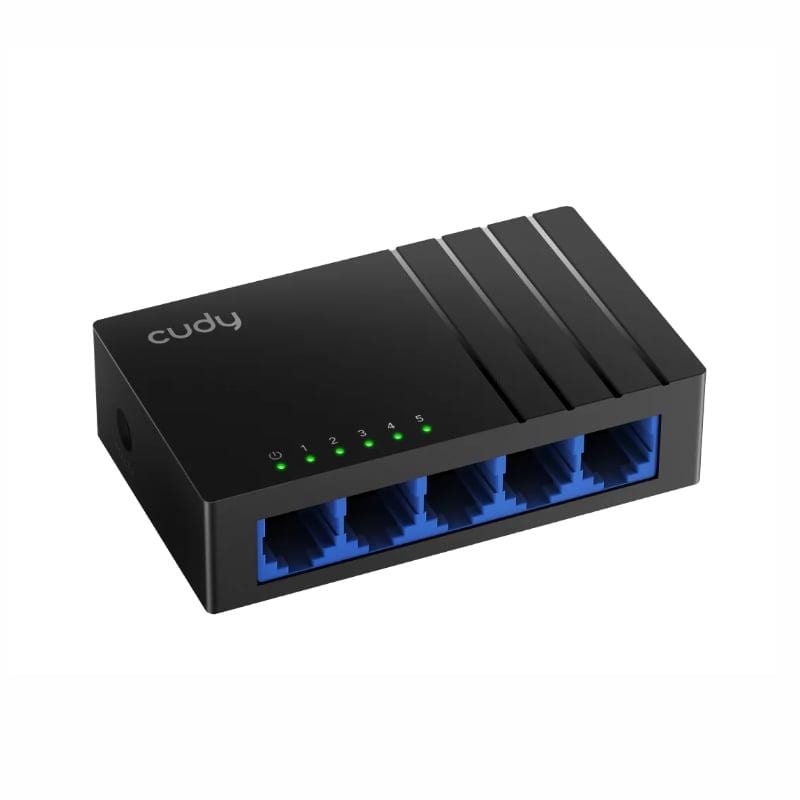

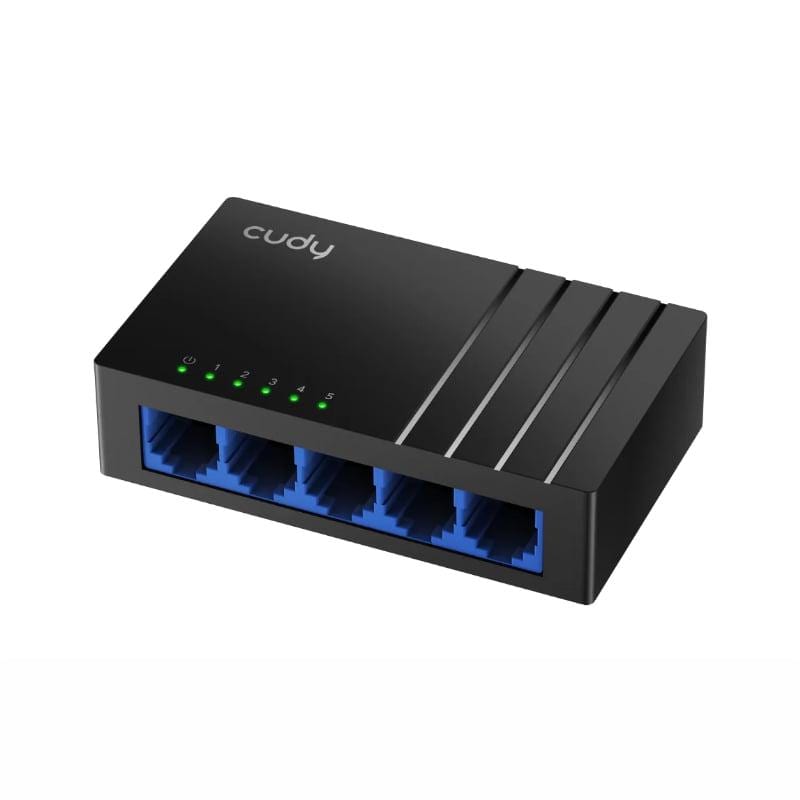

- Cudy GS105D 5-Port Gigabit Desktop Switch Black x1
- Power Adapter x1
- Quick Install Guide x1
