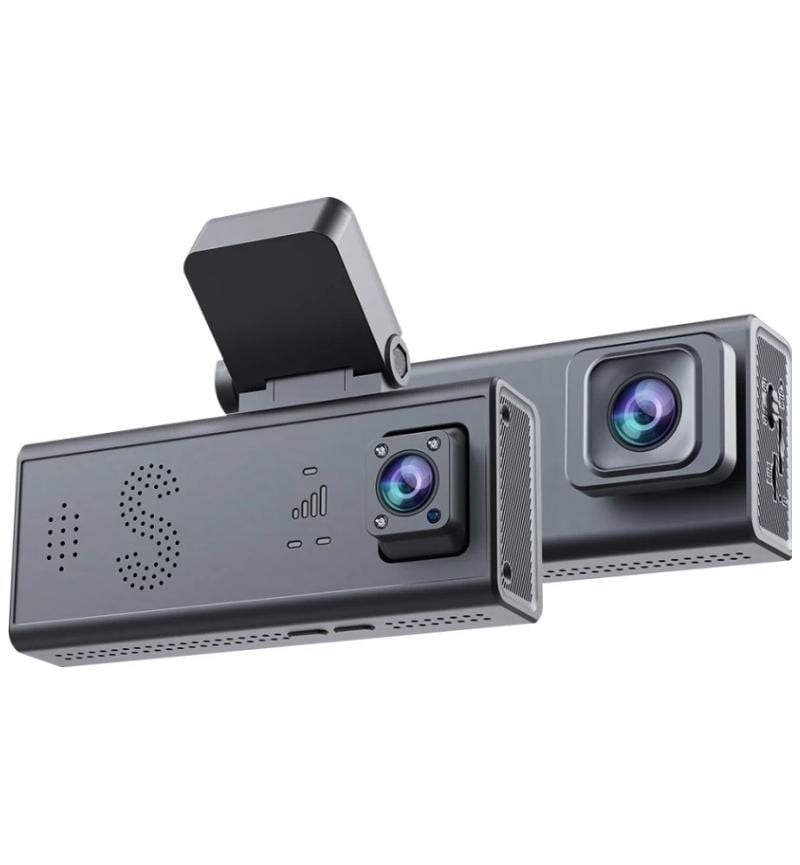

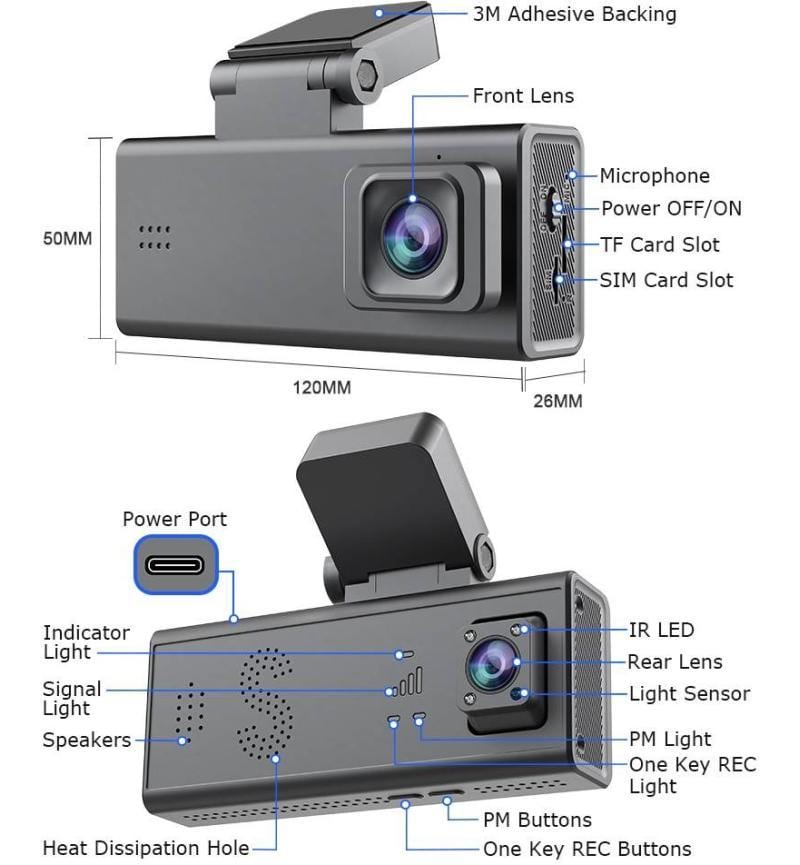

ST-CC09 4G Dual 3MP Car Dash Camera
The ST-CC09 4G Car Dash Camera combines driving recording, remote vehicle monitoring and intelligent parking protection in a dual-camera security system. Equipped with two 3MP CMOS sensors, it records both the road and vehicle interior while providing remote access through the Ucon mobile app.
Parking Guard Mode uses front and rear microwave radar together with a G-Sensor to detect activity around the vehicle. Its configurable wake and sleep function can be adjusted through the app, while the ultra-low-power design and built-in super capacitor are designed for continuous vehicle security applications.
Integrated 4G connectivity enables remote monitoring and two-way audio, while Wi-Fi AP mode allows a smartphone to connect directly to the camera for local playback. Built-in GPS displays latitude, longitude and vehicle speed information on the OSD and mobile app.
For low-light monitoring, the in-car camera uses 940nm infrared night vision while the outward-facing camera operates in full-colour mode. Privacy Mode can be activated using the dedicated privacy button to disable both camera recording and audio when required.
Specifications
- Model: ST-CC09
- Product Type: 4G Dual-Lens Car Dash Camera
- Camera Configuration: Road-Facing + In-Car Camera
- Image Sensors: 2 × 3MP 1/2.9" CMOS Sensors
- Video Resolution: 3MP + 3MP
- Detection Sensors: Front / Rear Microwave Radar + G-Sensor
- Parking Guard Mode: Supported
- Driving Recording: Supported
- Remote Monitoring: Supported
- Privacy Mode: Supported - Privacy Button Disables Camera Recording & Audio
- In-Car Night Vision: 940nm Infrared
- Out-Car Night Vision: Full-Colour Mode
- 4G: Supported
- 4G Regions: EU, Asia, Middle East, Africa, Australia, South America & North America
- SIM Card: Nano SIM
- Wi-Fi: AP Hotspot Mode for Smartphone Playback
- AP Mode Control: Toggle Button with AP Indicator
- GPS: Built-In
- GPS Information: Latitude, Longitude & Speed Displayed on OSD and App
- Trajectory Recording: Not Supported
- Front Camera Field of View: 105° Horizontal
- In-Car Camera Field of View: 140° Horizontal
- Wake / Sleep Time: 5s / 10s / 20s / 30s / Continuous Recording
- Pairing: QR Code / Bluetooth Pairing
- Operating System: Linux
- Audio: Built-In Microphone
- Microphone Sensitivity: -38dB
- Video Format: H.264 / H.265
- Two-Way Audio: Supported
- Storage: TF Card + Cloud Storage
- Supported TF Card Capacity: 4GB64GB
- Playback: Event List + Cloud Playback
- Mobile App: Ucon
- App Compatibility: iOS 10.0+ / Android 5.0+
- Power Supply: Vehicle Port
- Optional Power Supply: Hardwired to Vehicle Battery
- Power Protection: Supported
- Built-In Super Capacitor: Yes
- Ultra-Low-Power Design: Yes
- Buttons: Power Toggle Switch + Reset Button
- Indicators: Red/Blue Status, AP, Privacy & 4G Signal (4 Bars)
- Operating Humidity: =80% RH
What's in the Box
- 1 × ST-CC09 4G Car Dash Camera
